Switching Converter, SMPS Transformers
Browse available Switching Converter, SMPS Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

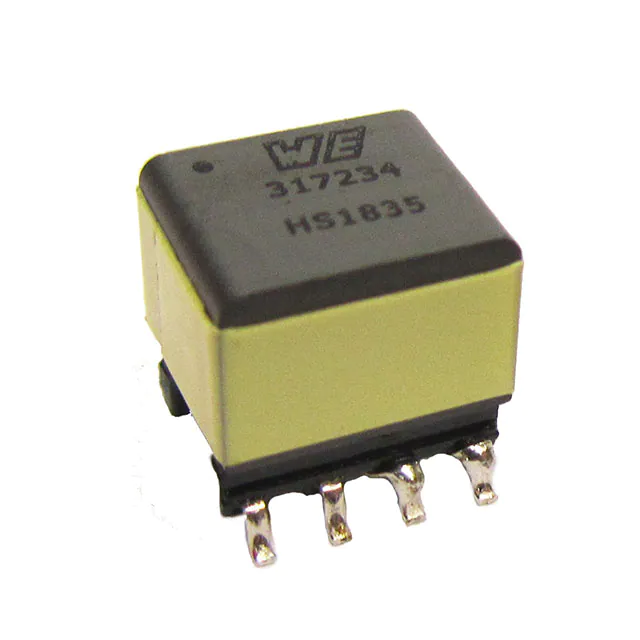

750317234XFMR FLYBACK DC/DC CONV 84UH SMD |
246 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 18 ~ 60VDC | - | 1500Vrms | 84µH @ 100kHz | 143.5kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.385" L x 0.374" W (9.78mm x 9.50mm) | 0.415" (10.54mm) | 0.324" L x 0.360" W (8.23mm x 9.14mm) | Wirewound |
.00xNL-Series.jpg "PA3856.001NL")
|
PA3856.001NLXFMR FWD P-P DC/DC CONV SMD |
770 | - |
|
Datasheet | EP13Plus | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3856.002NLXFMR FWD P-P DC/DC CONV SMD |
473 | - |
|
Datasheet | - | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
750315831XFMR FLYBACK DC/DC CONV 150UH SM |
295 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Linear Technology | 9 ~ 36V | - | 1875Vrms | 150µH @ 10kHz | 50 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | - | - | - |
|
PA3856.002NLTXFMR FWD P-P DC/DC CONV SMD |
974 | - |
|
Datasheet | EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
750311088XFMR FLYBACK DC/DC CONV 2.7UH SM |
122 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 6 ~ 12.6V | - | 500Vrms | 2.7µH @ 100kHz | 391kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.69mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
PA3965.002NLXFMR FLYBACK 7W |
1,352 | - |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.557" (14.15mm) | 0.657" L x 0.650" W (16.70mm x 16.50mm) | - |
|

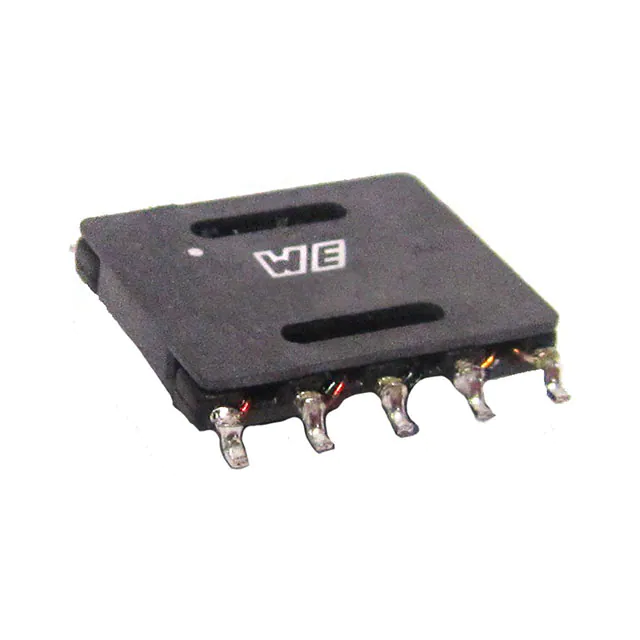

750316668XFMR FWD P-P DC/DC CONV 60UH SMD |
175 | - |
|
Datasheet | MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 60µH @ 10kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.458" L x 0.364" W (11.63mm x 9.25mm) | 0.157" (3.99mm) | 0.458" L x 0.496" W (11.63mm x 12.60mm) | - |
|
750315945XFMR FWD P-P DC/DC CONV SMD |
426 | - |
|
Datasheet | MID-FWD | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 17 ~ 36V | - | 1250Vrms | - | 500kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.699" W (13.46mm x 17.75mm) | 0.500" (12.70mm) | - | - |
|
750315504XFMR RES CONV DC/DC 2.5MH SM |
256 | - |
|
Datasheet | WE-FW, MID-HB | Tape & Reel (TR) | Active | For DC/DC Converters | Resonant Converters | - | - | 3 ~ 3.6V | - | 1500Vrms | 2.5mH @ 10kHz | 30 ~ 70kHz | -40°C ~ 105°C | - | - | Surface Mount | - | 0.385" (9.78mm) | 0.310" L x 0.330" W (7.87mm x 8.38mm) | - |
|
750316743XFMR FLYBACK SMD |
1,248 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PA5099.001NLTXFMR FLYBACK DC/DC CONV SMD |
610 | - |
|
Datasheet | PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
|
PA5099.002NLTXFMR FLYBACK DC/DC CONV SMD |
212 | - |
|
Datasheet | PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
PGT6466NLTXFMR FLYBACK 1.8UH SMD |
148 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | 6 ~ 28V | - | 3000VDC | 1.8µH @ 100kHz | 500kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.650" L x 0.642" W (16.50mm x 16.30mm) | 0.433" (11.00mm) | 0.862" L x 0.650" W (21.90mm x 16.50mm) | Wirewound |
|
|
PA3856.005NLTXFMR FWD P-P DC/DC CONV SMD |
1,151 | - |
|
Datasheet | EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
B82802A0012A315XFMR FLYBACK DC/DC CONV 100UH SM |
101 | - |
|
Datasheet | B82802A | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 36 ~ 60V | - | 1500Vrms | 100µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.650" L x 0.681" W (16.50mm x 17.30mm) | 0.341" (8.65mm) | 0.650" L x 0.902" W (16.50mm x 22.90mm) | - |
|
750313439XFMR FLYBACK DC/DC CONV 12UH SMD |
684 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Linear Technology | 8 ~ 40V | - | 1500Vrms | 12µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750310743XFMR POE DC/DC CONV 38UH SMD |
738 | - |
|
Datasheet | WE-PoE+ | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 37 ~ 57V | 12.7V @ 30mA | 1500Vrms | 38µH @ 100kHz | 250 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.591" W (13.46mm x 15.00mm) | 0.500" (12.70mm) | 0.530" L x 0.713" W (13.46mm x 18.10mm) | - |
|
750316566XFMR FLYBACK SMD |
228 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
7508170311XFMR FLYBACK AC/DC CONV 491UH SM |
765 | - |
|
Datasheet | WE-UNIT, MID-OLEE | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | 78 ~ 375V | 16V @ 50mA | 3000Vrms | 491µH @ 10kHz | 150kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.438" (11.13mm) | 0.543" L x 0.941" W (13.80mm x 23.90mm) | - |
Switching Converter, SMPS Transformers FAQ
Common questions about selecting, comparing and sourcing Switching Converter, SMPS Transformers components through Winsun (HK) Electronics.
What should I check when selecting Switching Converter, SMPS Transformers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Switching Converter, SMPS Transformers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Switching Converter, SMPS Transformers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Switching Converter, SMPS Transformers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
