Switching Converter, SMPS Transformers
Browse available Switching Converter, SMPS Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH0801CNLXFMR DC/DC CONV SMD |
752 | - |
|
Datasheet | PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|

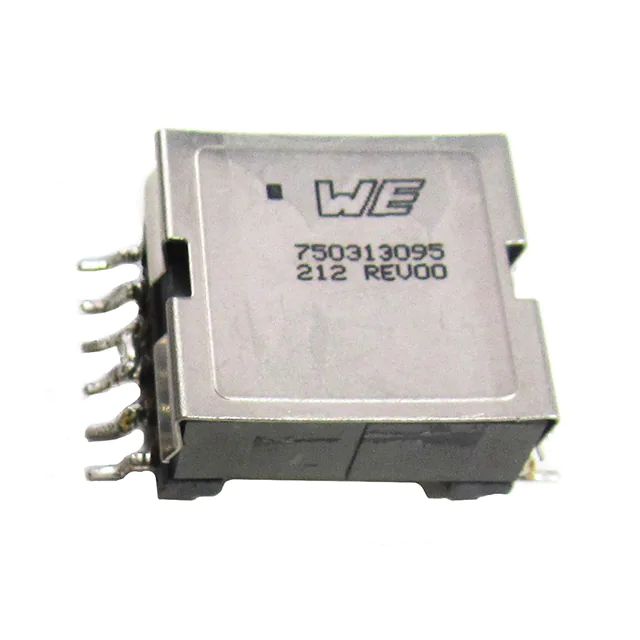

750313095XFMR POE DC/DC CONV 175UH SMD |
217 | - |
|
Datasheet | MID-POELT | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | Linear Technology | 40 ~ 57V | - | 3000Vrms | 175µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | - | - | - |
|
750310564XFMR FLYBACK DC/DC CONV 63UH SMD |
1,404 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 12 ~ 30V | 5V @ 20mA | 1500Vrms | 63µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
|
750310563XFMR FLYBACK DC/DC CONV 25UH SMD |
375 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 18 ~ 30V | 12V @ 20mA | 1500Vrms | 25µH @ 10kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
|
750310471XFMR FLYBACK DC/DC CONV 25UH SMD |
1,049 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 9 ~ 30V | 5V @ 20mA | 1500Vrms | 25µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750319496XFMR FLYBACK DC/DC CONV 7UH SMD |
126 | - |
|
Datasheet | WE-AGDT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Analog Devices, Inc | 9 ~ 18V | - | 4000V | 7µH | 350kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.445" L x 0.431" W (11.30mm x 10.95mm) | 0.470" (11.94mm) | - | Wirewound |
|
|
750319497XFMR FLYBACK DC/DC CONV 7UH SMD |
110 | - |
|
Datasheet | WE-AGDT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Analog Devices, Inc | 9 ~ 18V | - | 4000V | 7µH | 350kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.445" L x 0.431" W (11.30mm x 10.95mm) | 0.470" (11.94mm) | - | Wirewound |
|
749196118XFMR FLEX DC/DC CONV 27.4UH SMD |
966 | - |
|
Datasheet | WE-FLEX | Tape & Reel (TR) | Active | For DC/DC Converters | Flexible | - | - | - | - | 1500Vrms | 27.4µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.362" L x 0.508" W (9.19mm x 12.90mm) | 0.244" (6.20mm) | 0.512" L x 0.508" W (13.00mm x 12.90mm) | - |
|
749196540XFMR FLEX CONFIG DC/DC 3.4UH SMD |
238 | - |
|
Datasheet | WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 3.4µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.425" (10.80mm) | 0.827" L x 1.169" W (21.00mm x 29.70mm) | - |
1-Series.jpg "VPH1-0102-R")
|
VPH1-0102-RXFMR 14.7UH SMD |
1,322 | - |
|
Datasheet | VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.508" L x 0.512" W (12.90mm x 13.00mm) | 0.244" (6.20mm) | - | - |
|

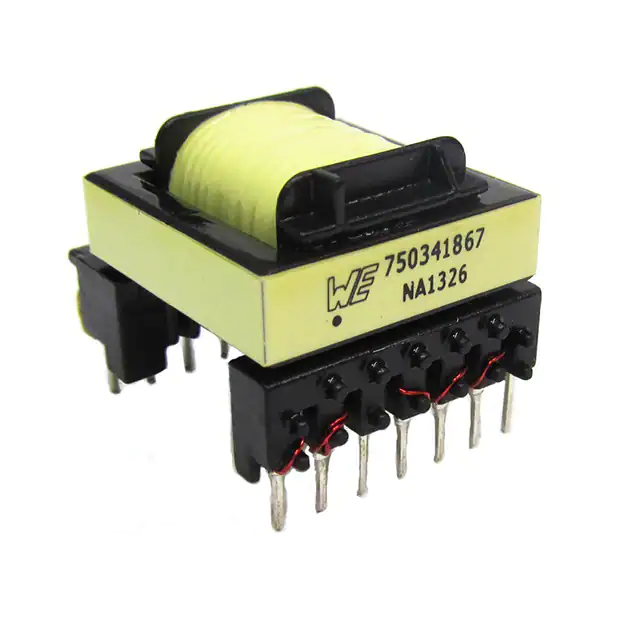

750341867XFMR FLYBACK DC/DC CONV 1.3MH SM |
216 | - |
|
Datasheet | MID-OLON | Tray | Active | For DC/DC Converters | Flyback Converters | - | On Semiconductor | - | - | 3750Vrms | 1.3mH @ 50kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 1.065" L x 1.270" W (27.05mm x 32.25mm) | 0.900" (22.86mm) | - | - |
|
|
750311342XFMR FLYBACK DC/DC CONV 15UH SMD |
696 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 36V | 10V @ 20mA | 1500Vrms | 15µH @ 250kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750311911XFMR FLYBCK DC/DC CONV 6.78UH TH |
115 | - |
|
Datasheet | WE-FB | Tray | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 16 ~ 24V | 5V @ 300mA | 1500Vrms | 6.78µH @ 100kHz | - | -40°C ~ 125°C | - | - | Through Hole | 0.874" L x 0.984" W (22.20mm x 25.00mm) | 0.635" (16.13mm) | 0.874" L x 0.984" W (22.20mm x 25.00mm) | - |
|
750311458XFMR FLYBACK DC/DC CONV 15UH SMD |
1,132 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 36V | 8V @ 20mA | 2500Vrms | 15µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
|
750311423XFMR FLYBACK DC/DC CONV 50UH SMD |
480 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 36V | 10V @ 20mA | 1500Vrms | 50µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
760871113XFMR LED DR AC/DC CONV 1.31MH SM |
403 | - |
|
Datasheet | WE-UOST | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 265V | 14V | 4000Vrms | 1.31mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.654" L x 0.790" W (16.60mm x 20.06mm) | 0.551" (14.00mm) | 0.654" L x 1.016" W (16.60mm x 25.81mm) | - |
|
|
760875532XFMR LED DR AC/DC CONV 1.5MH SMD |
236 | - |
|
Datasheet | WE-UOST | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 265V | 14V | 4000Vrms | 1.5mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.654" L x 0.790" W (16.60mm x 20.06mm) | 0.551" (14.00mm) | 0.654" L x 1.016" W (16.60mm x 25.81mm) | - |
|
|
760871534XFMR LED DR AC/DC CONV 1.25MH SM |
208 | - |
|
Datasheet | WE-UOST | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 265V | 14V | 4000Vrms | 1.25mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.654" L x 0.790" W (16.60mm x 20.06mm) | 0.551" (14.00mm) | 0.654" L x 1.016" W (16.60mm x 25.81mm) | - |
|
|
760871135XFMR LED DR AC/DC CONV 1.25MH SM |
165 | - |
|
Datasheet | WE-UOST | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 265V | 14V | 4000Vrms | 1.25mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.654" L x 0.790" W (16.60mm x 20.06mm) | 0.551" (14.00mm) | 0.654" L x 1.016" W (16.60mm x 25.81mm) | - |
|
|
760871543XFMR LED DR AC/DC CONV 1.31MH SM |
162 | - |
|
Datasheet | WE-UOST | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 265V | 14V | 4000Vrms | 1.31mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.654" L x 0.790" W (16.60mm x 20.06mm) | 0.551" (14.00mm) | 0.654" L x 1.016" W (16.60mm x 25.81mm) | - |
Switching Converter, SMPS Transformers FAQ
Common questions about selecting, comparing and sourcing Switching Converter, SMPS Transformers components through Winsun (HK) Electronics.
What should I check when selecting Switching Converter, SMPS Transformers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Switching Converter, SMPS Transformers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Switching Converter, SMPS Transformers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Switching Converter, SMPS Transformers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
