Switching Converter, SMPS Transformers
Browse available Switching Converter, SMPS Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750316886XFMR FWD P-P DC/DC CONV 200UH SM |
1,407 | - |
|
Datasheet | MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 200µH @ 10kHz | 420kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.450" L x 0.327" W (11.43mm x 8.30mm) | 0.165" (4.20mm) | 0.581" L x 0.327" W (14.75mm x 8.30mm) | - |
|

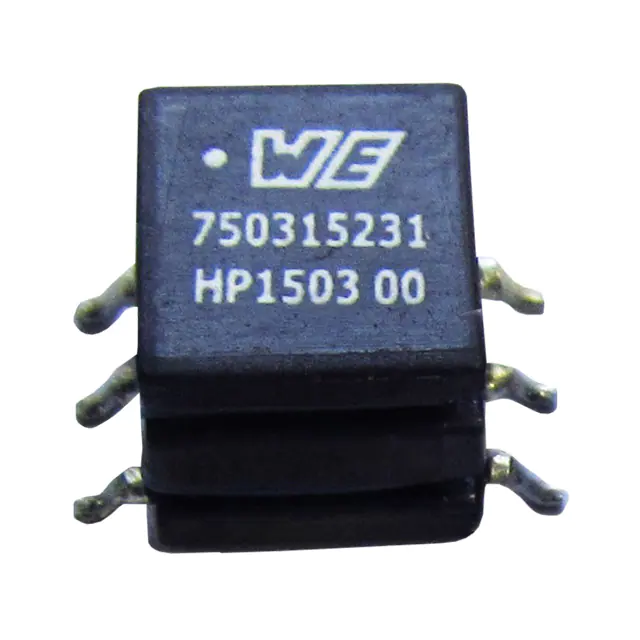

750315231XFMR FWD P-P SMD |
760 | - |
|
Datasheet | MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.300" (7.62mm) | - | - |
|
750315230XFMR FWD P-P SMD |
488 | - |
|
Datasheet | MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.300" (7.62mm) | - | - |
|
PA5099.006NLTXFMR FLYBACK DC/DC CONV SMD |
975 | - |
|
Datasheet | PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
|
PA5099.005NLTXFMR FLYBACK DC/DC CONV SMD |
264 | - |
|
Datasheet | PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
PA3855.004NLTXFMR FLYBACK DC/DC CONV 21UH SMD |
247 | - |
|
Datasheet | EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
.00xNL-Series.jpg "PA3856.005NL")
|
PA3856.005NLXFMR FWD P-P DC/DC CONV SMD |
302 | - |
|
Datasheet | - | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3856.003NLTXFMR FWD P-P DC/DC CONV SMD |
672 | - |
|
Datasheet | EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3856.006NLXFMR FWD P-P DC/DC CONV SMD |
174 | - |
|
Datasheet | - | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
CEER117-AX05-13-048XFMR FLYBACK DC/DC CONV 59UH SMD |
1,076 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV | Broadcom, ROHM | 12V | - | 2500Vrms | 59µH @ 100kHz, 240µH @ 100kHz | 120kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.449" L x 0.390" W (11.40mm x 9.90mm) | 0.331" (8.40mm) | 0.508" L x 0.449" W (12.90mm x 11.40mm) | - |
|
PH9496NLTXFMR FLYBACK DC/DC CONV SMD |
875 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | ACPL-32JT, ACPL-302J | - | 8 ~ 18V | - | 2500Vrms | - | 80kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.492" (12.50mm) | - | - |
|

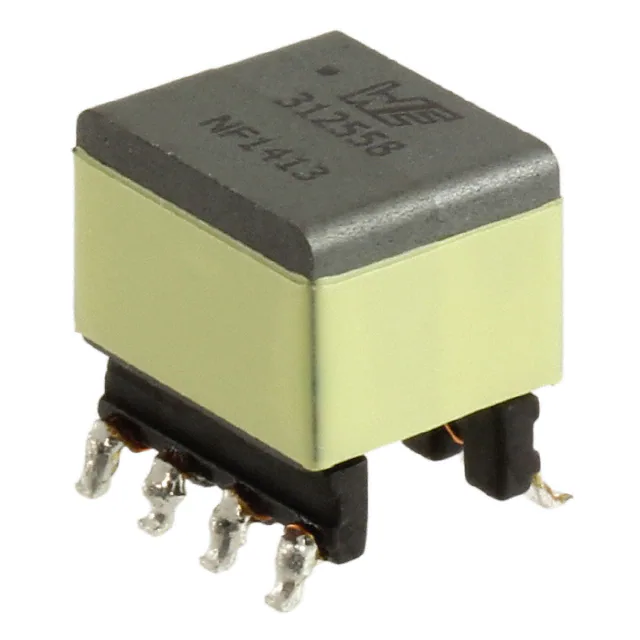

750312558XFMR FLYBACK DC/DC CONV 300UH SM |
1,749 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 36 ~ 72V | - | 1500Vrms | 300µH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.69mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
750313442XFMR FLYBACK DC/DC CONV 12UH SMD |
159 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Linear Technology | 8 ~ 32V | - | 1500Vrms | 12µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
|
750313460XFMR FLYBACK DC/DC CONV 12UH SMD |
120 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Linear Technology | 4 ~ 8V | - | 1500Vrms | 12µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750315837XFMR FLYBACK DC/DC CONV 40UH SMD |
458 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8304 | Linear Technology | 36 ~ 75V | - | 1500Vrms | 40µH @ 10kHz | 50 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" (12.70mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
750312366XFMR FLYBACK DC/DC CONV 400UH SM |
2,667 | - |
|
Datasheet | WE-UNIT, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 18 ~ 75V | - | 1500Vrms | 400µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.340" (8.64mm) | 0.400" L x 0.526" W (10.16mm x 13.36mm) | - |
|
750312365XFMR FLYBACK DC/DC CONV 300UH SM |
1,488 | - |
|
Datasheet | WE-PoE, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 30 ~ 72V | - | 1500Vrms | 300µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.342" (8.69mm) | 0.400" L x 0.526" W (10.16mm x 13.36mm) | - |
|
750312557XFMR FLYBACK DC/DC CONV 300UH SM |
166 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 36 ~ 72V | - | 1500Vrms | 300µH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.342" (8.69mm) | 0.400" L x 0.526" W (10.16mm x 13.36mm) | - |
|
750315229XFMR FWD P-P SMD |
885 | - |
|
Datasheet | MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.300" (7.62mm) | - | - |
|
POE025-PD13120SXFMR POE DC/DC CONV 80UH SMD |
5,098 | - |
|
Datasheet | POE-PD | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 57V | 14.5V | 1500Vrms | 80µH @ 100kHz | 220kHz | -40°C ~ 105°C | - | - | Surface Mount | 0.638" L x 0.551" W (16.20mm x 14.00mm) | 0.571" (14.50mm) | - | - |
Switching Converter, SMPS Transformers FAQ
Common questions about selecting, comparing and sourcing Switching Converter, SMPS Transformers components through Winsun (HK) Electronics.
What should I check when selecting Switching Converter, SMPS Transformers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Switching Converter, SMPS Transformers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Switching Converter, SMPS Transformers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Switching Converter, SMPS Transformers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
