Switching Converter, SMPS Transformers
Browse available Switching Converter, SMPS Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750813134XFMR FLYBACK AC/DC CONV 600UH TH |
172 | - |
|
Datasheet | WE-FB, MID-OLLT | Tray | Active | For AC/DC Converters | Flyback Converters | LT3799 | Linear Technology | 90 ~ 265V | 18V @ 10mA | 4500Vrms | 600µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.709" L x 0.650" W (18.00mm x 16.50mm) | 0.714" (18.14mm) | 0.709" L x 0.650" W (18.00mm x 16.50mm) | - |
|
750311625XFMR FLYBACK DC/DC CONV 9UH SMD |
363 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 10 ~ 40V | 8V @ 20mA | 1500Vrms | 9µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
750311608XFMR FLYBACK DC/DC CONV 12UH SMD |
247 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 30 ~ 75V | - | 1500Vrms | 12µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.910" L x 1.150" W (23.11mm x 29.08mm) | - |
1-Series.jpg "VP1-0076-R")
|
VP1-0076-RXFMR 4.9UH SMD |
342 | - |
|
Datasheet | VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.508" L x 0.512" W (12.90mm x 13.00mm) | 0.244" (6.20mm) | - | - |
|
750811645XFMR FLYBACK DC/DC CONV 470UH TH |
226 | - |
|
Datasheet | MID-OLEFD | Tray | Active | For DC/DC Converters | Flyback Converters | - | - | 120 ~ 375V | 20V | 4500Vrms | 470µH @ 10kHz | 68 ~ 100kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.551" (14.00mm) | - | - |
|
VGT12EEM-200S1A4XFMR FLYBACK AC/DC CONV 10UH SMD |
561 | - |
|
Datasheet | VGT | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | 2600Vrms | 10µH @ 100kHz | - | -40°C ~ 130°C | - | - | Surface Mount | 0.535" L x 0.425" W (13.60mm x 10.80mm) | 0.394" (10.00mm) | 0.583" L x 0.535" W (14.80mm x 13.60mm) | Wirewound |
2-Series.jpg "VP2-0216-R")
|
VP2-0216-RXFMR 10.6UH SMD |
1,167 | - |
|
Datasheet | VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.642" L x 0.661" W (16.30mm x 16.80mm) | 0.307" (7.80mm) | - | - |
|

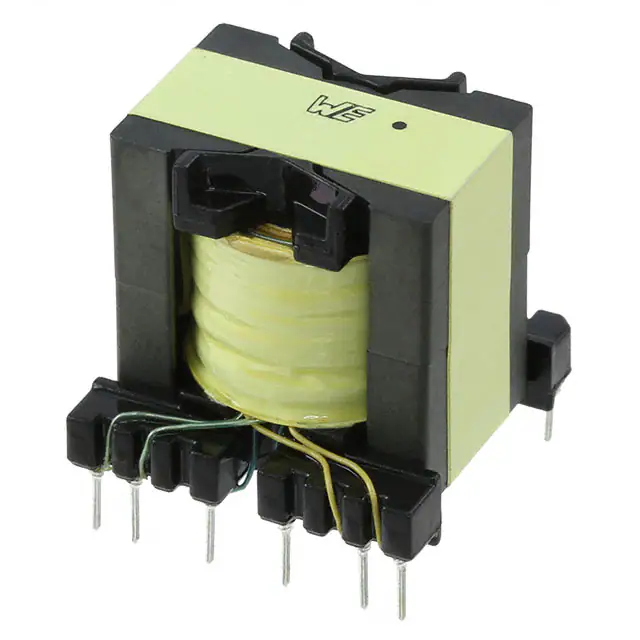

750315038XFMR ISOL BUCK DC/DC 36.5UH TH |
608 | - |
|
Datasheet | MID-IBTI | Tray | Active | For DC/DC Converters | Isolated Buck Converters | - | Texas Instruments | 7 ~ 26V | - | 3600Vrms | 36.5µH @ 10kHz | 250 ~ 600kHz | -40°C ~ 125°C | - | - | Through Hole | 0.920" L x 0.940" W (23.36mm x 23.88mm) | 0.955" (24.26mm) | 0.920" L x 0.940" W (23.36mm x 23.88mm) | - |
|
750311591XFMR FLYBACK DC/DC CONV 8UH SMD |
2,023 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 20 ~ 48V | 10V | 1500Vrms | 8µH @ 150kHz | 150kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.544" (13.82mm) | 1.064" L x 1.272" W (27.03mm x 32.31mm) | - |
|
|
750311771XFMR FLYBACK DC/DC CONV 500UH SM |
226 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 100 ~ 400V | 15V @ 20mA | 2500Vrms | 500µH @ 10kHz, 14µH @ 10kHz, 400µH @ 10kHz | 60 ~ 400kHz | - | - | - | Surface Mount | - | 0.544" (13.82mm) | 1.064" L x 1.272" W (27.03mm x 32.31mm) | - |
|
|
750311599XFMR FLYBACK DC/DC CONV 8UH SMD |
225 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 20 ~ 48V | - | 1500Vrms | 8µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.910" L x 1.150" W (23.11mm x 29.08mm) | - |
|
|
VP2-0116-RXFMR 5.7UF SMD |
222 | - |
|
Datasheet | VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.642" L x 0.661" W (16.30mm x 16.80mm) | 0.307" (7.80mm) | - | - |
|
749196501XFMR FLEXIBLE CONFIG DC/DC SMD |
262 | - |
|
Datasheet | WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.425" (10.80mm) | 0.827" L x 1.169" W (21.00mm x 29.70mm) | - |
|

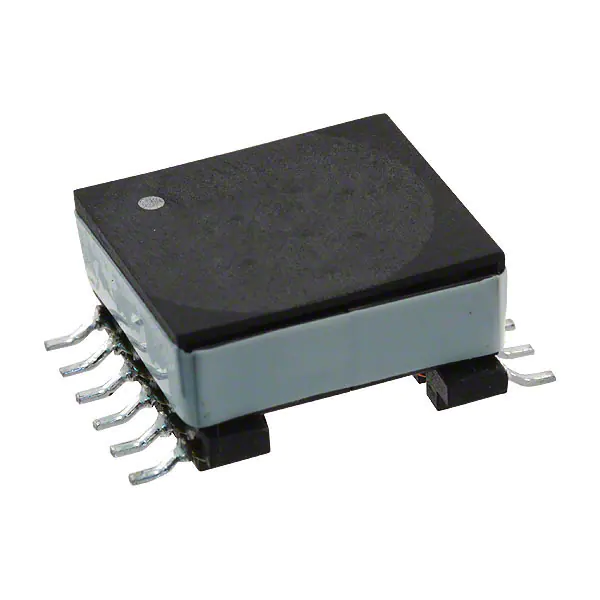

VP3-0138-RXFMR 11.2UH SMD |
181 | - |
|
Datasheet | VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.673" L x 0.878" W (17.10mm x 22.30mm) | 0.331" (8.40mm) | - | - |
|
|
750310617XFMR FLYBACK DC/DC CONV 4.5UH SM |
152 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 9 ~ 36V | 12V @ 20mA | 1500Vrms | 4.5µH @ 100kHz | 200kHz | - | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.910" L x 1.150" W (23.11mm x 29.08mm) | - |
|
VP4-0075TR-RXFMR 6.1UH SMD |
149 | - |
|
Datasheet | VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
VPH5-0155TR-RXFMR 22.3UH SMD |
217 | - |
|
Datasheet | VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 1.122" W (21.00mm x 28.50mm) | 0.425" (10.80mm) | - | - |
|
|
VPH4-0075-RXFMR 12.7UH SMD |
213 | - |
|
Datasheet | VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
|
VP5-0083TR-RXFMR 5.3UH SMD |
149 | - |
|
Datasheet | VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 1.122" W (21.00mm x 28.50mm) | 0.425" (10.80mm) | - | - |
|
750319021XFMR POE DC/DC CONV 22UH SMD |
893 | - |
|
Datasheet | MID-POE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 12V | 1500Vrms | 22µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.102" L x 1.064" W (28.00mm x 27.03mm) | 0.550" (13.97mm) | 1.278" L x 1.064" W (32.45mm x 27.03mm) | - |
Switching Converter, SMPS Transformers FAQ
Common questions about selecting, comparing and sourcing Switching Converter, SMPS Transformers components through Winsun (HK) Electronics.
What should I check when selecting Switching Converter, SMPS Transformers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Switching Converter, SMPS Transformers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Switching Converter, SMPS Transformers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Switching Converter, SMPS Transformers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
