Switching Converter, SMPS Transformers
Browse available Switching Converter, SMPS Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

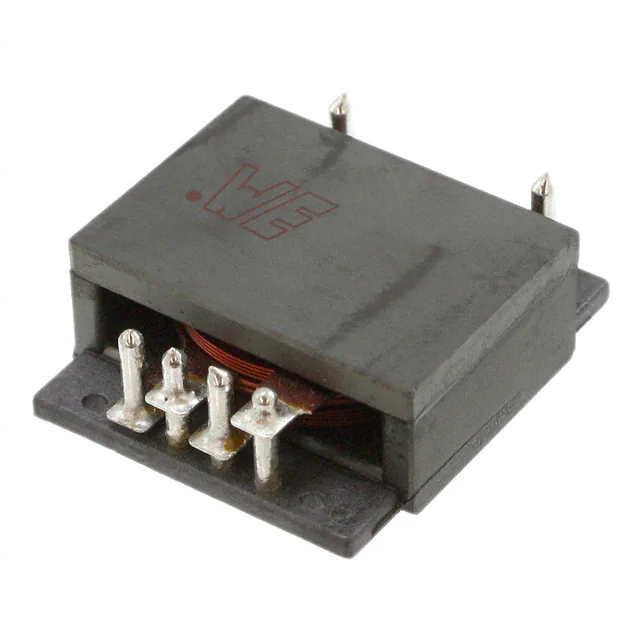

750341145XFMR FWD P-P DC/DC CONV 410UH SM |
1,033 | - |
|
Datasheet | WE-FW, MID-PLN | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VDC | 410µH @ 100kHz | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.050" L x 1.154" W (26.67mm x 29.30mm) | 0.418" (10.62mm) | 1.050" L x 1.154" W (26.67mm x 29.30mm) | Planar |
|
PE-68422NLXFMR FLYBACK DC/DC CONV SMD |
133 | - |
|
Datasheet | - | Tray | Active | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 18 ~ 36V | - | 1500Vrms | - | - | -40°C ~ 130°C | - | - | Surface Mount | 0.970" L x 1.070" W (24.64mm x 27.18mm) | 0.680" (17.27mm) | 0.970" L x 1.070" W (24.64mm x 27.18mm) | - |
|
|
PA0905NLXFMR SMD |
119 | - |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.402" (10.20mm) | 1.000" L x 1.160" W (25.40mm x 29.46mm) | - |
|

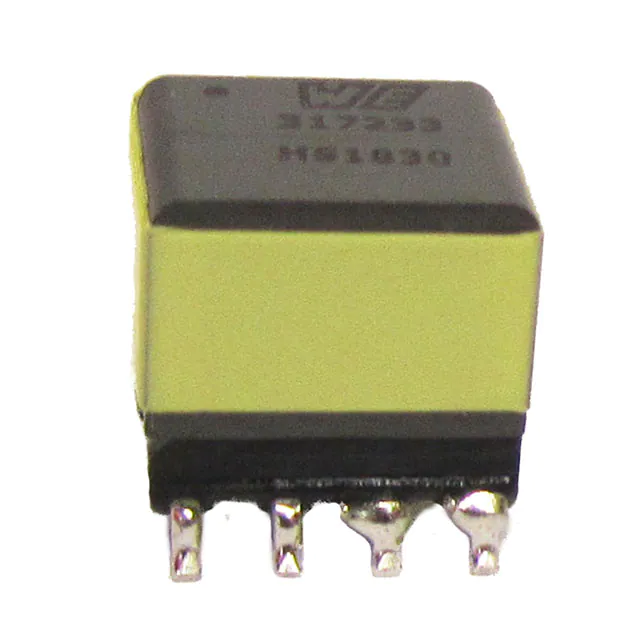

750317233XFMR FLYBACK DC/DC CONV 16UH SMD |
1,671 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 8 ~ 28VDC | - | 1500Vrms | 16µH @ 100kHz | 143.5kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.385" L x 0.374" W (9.78mm x 9.50mm) | 0.415" (10.54mm) | 0.324" L x 0.360" W (8.23mm x 9.14mm) | Wirewound |
|

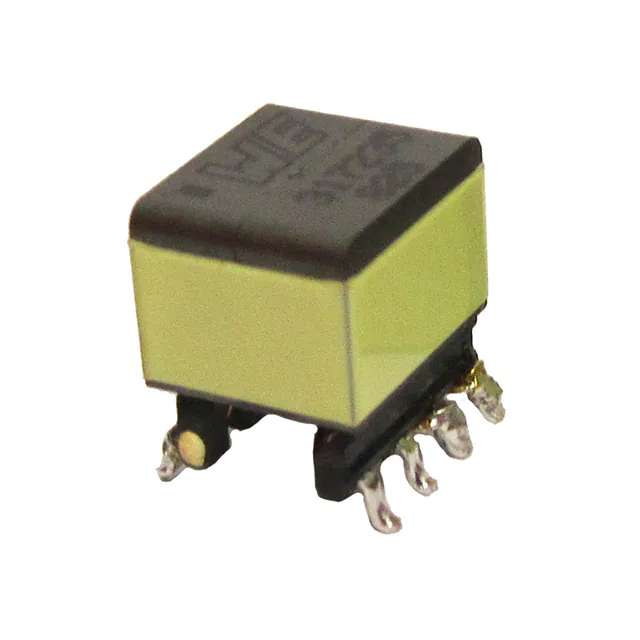

750317235XFMR FLYBACK DC/DC CONV 16UH SMD |
1,192 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 8 ~ 28VDC | - | 1500Vrms | 16µH @ 100kHz | 143.5kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.385" L x 0.374" W (9.78mm x 9.50mm) | 0.415" (10.54mm) | 0.324" L x 0.360" W (8.23mm x 9.14mm) | Wirewound |
|
PH9585.003NLTXFMR FLYBACK SMD |
4,764 | - |
|
Datasheet | PH9585.XXXNLT | Tape & Reel (TR) | Active | - | Flyback Converters | - | - | 36 ~ 72V | 15V | 2250V | - | 430kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.250" L x 0.242" W (6.35mm x 6.15mm) | 0.142" (3.60mm) | 0.252" L x 0.244" W (6.40mm x 6.20mm) | Wirewound |
|
750315825XFMR FLYBACK DC/DC CONV 150UH SM |
1,011 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Linear Technology | 36 ~ 72V | - | 1875Vrms | 150µH @ 10kHz | 50 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | - | - | - |
|
PA3855.005NLTXFMR FLYBACK DC/DC CONV 21UH SMD |
1,950 | - |
|
Datasheet | EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3855.002NLTXFMR FLYBACK DC/DC CONV SMD |
1,727 | - |
|
Datasheet | EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|

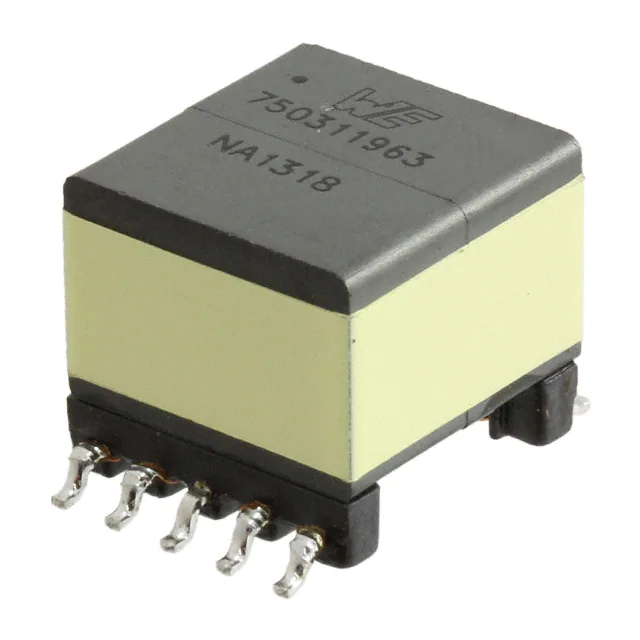

750311963XFMR FLYBACK DC/DC CONV 200UH SM |
804 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3511 | Linear Technology | 8 ~ 70V | - | 1500Vrms | 200µH @ 10kHz | 50 ~ 300kHz | - | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
750311659XFMR FLYBACK DC/DC CONV 300UH SM |
1,864 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 36 ~ 72V | 5V @ 20mA | 1500Vrms | 300µH @ 100kHz | 180kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.415" (10.54mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
750315226XFMR FWD P-P SMD |
2,005 | - |
|
Datasheet | MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | 3.3V | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.165" (4.19mm) | - | - |
|
|
750315225XFMR FWD P-P SMD |
172 | - |
|
Datasheet | MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | 3.3V | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.165" (4.19mm) | - | - |
.00xNL-Series.jpg "PA3856.004NL")
|
PA3856.004NLXFMR FWD P-P DC/DC CONV SMD |
772 | - |
|
Datasheet | - | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3965.001NLTXFMR FLYBACK 7W |
999 | - |
|
Datasheet | PA3965.XXXNLT | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.557" (14.15mm) | 0.657" L x 0.650" W (16.70mm x 16.50mm) | - |
|
PA3964.001NLXFMR AC FORWARD 7W |
735 | - |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.291" (7.40mm) | 0.614" L x 0.650" W (15.60mm x 16.50mm) | - |
|

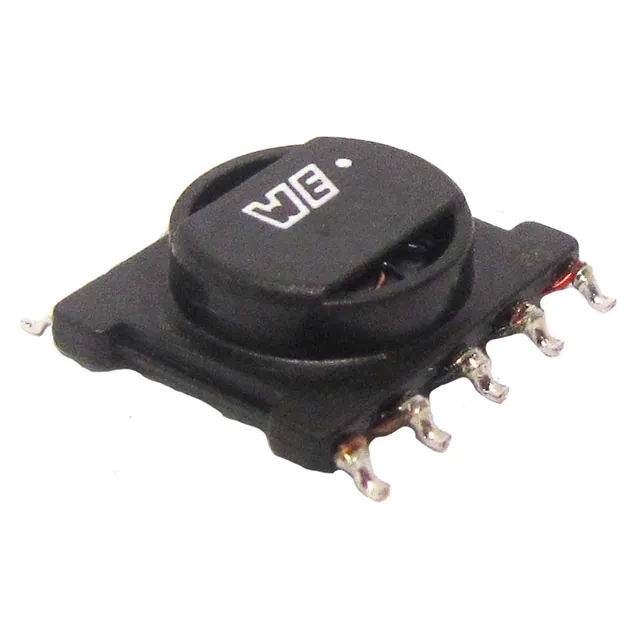

750316018XFMR FWD P-P DC/DC CONV 60UH SMD |
389 | - |
|
Datasheet | MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 60µH @ 10kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.458" L x 0.364" W (11.63mm x 9.25mm) | 0.145" (3.68mm) | 0.458" L x 0.496" W (11.63mm x 12.60mm) | - |
|
7508170312XFMR FLYBCK AC/DC CONV 1.99MH SM |
429 | - |
|
Datasheet | WE-UNIT, MID-OLEE | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | 78 ~ 375V | 16V @ 50mA | 3000Vrms | 1.99mH @ 10kHz | 50kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.438" (11.13mm) | 0.543" L x 0.941" W (13.80mm x 23.90mm) | - |
|
750317828XFMR FWD P-P DC/DC CONV 1MH SMD |
1,200 | - |
|
Datasheet | MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 24V | - | 2500Vrms | 1mH @ 10kHz | 300 ~ 620kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.281" L x 0.265" W (7.14mm x 6.73mm) | 0.165" (4.19mm) | 0.402" L x 0.265" W (10.20mm x 6.73mm) | - |
|

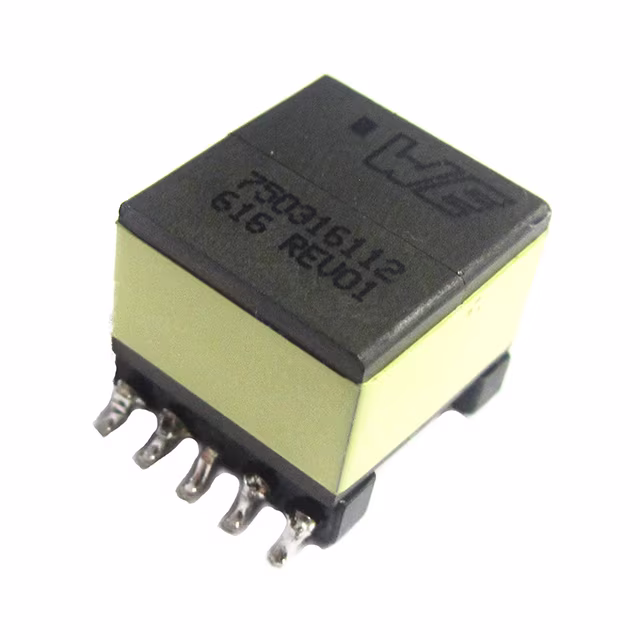

750316112XFMR FLYBACK DC/DC CONV 300UH SM |
584 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 17 ~ 36V | - | 1875Vrms | 300µH @ 10kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" (12.70mm) | - | - |
Switching Converter, SMPS Transformers FAQ
Common questions about selecting, comparing and sourcing Switching Converter, SMPS Transformers components through Winsun (HK) Electronics.
What should I check when selecting Switching Converter, SMPS Transformers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Switching Converter, SMPS Transformers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Switching Converter, SMPS Transformers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Switching Converter, SMPS Transformers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
