Switching Converter, SMPS Transformers
Use the filters and product table below to compare Switching Converter, SMPS Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VGT12EEM-200S1A4XFMR FLYBACK AC/DC CONV 10UH SMD |
561 | - |
|
Datasheet | VGT | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | 2600Vrms | 10µH @ 100kHz | - | -40°C ~ 130°C | - | - | Surface Mount | 0.535" L x 0.425" W (13.60mm x 10.80mm) | 0.394" (10.00mm) | 0.583" L x 0.535" W (14.80mm x 13.60mm) | Wirewound |
|
VGT15SEFD-250S4A7XFMR FLYBACK AC/DC CONV 2.6UH SM |
752 | - |
|
Datasheet | VGT | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | 2600Vrms | 2.6µH @ 100kHz | - | -40°C ~ 130°C | - | - | Surface Mount | 0.906" L x 0.606" W (23.00mm x 15.40mm) | 0.472" (12.00mm) | 0.906" L x 0.606" W (23.00mm x 15.40mm) | Wirewound |
|
VGT15EFD-200S3A6XFMR FLYBACK AC/DC CONV 8UH SMD |
719 | - |
|
Datasheet | VGT | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | 2600Vrms | 8µH @ 100kHz | - | -40°C ~ 130°C | - | - | Surface Mount | 0.787" L x 0.709" W (20.00mm x 18.00mm) | 0.402" (10.20mm) | 0.945" L x 0.787" W (24.00mm x 20.00mm) | Wirewound |
|

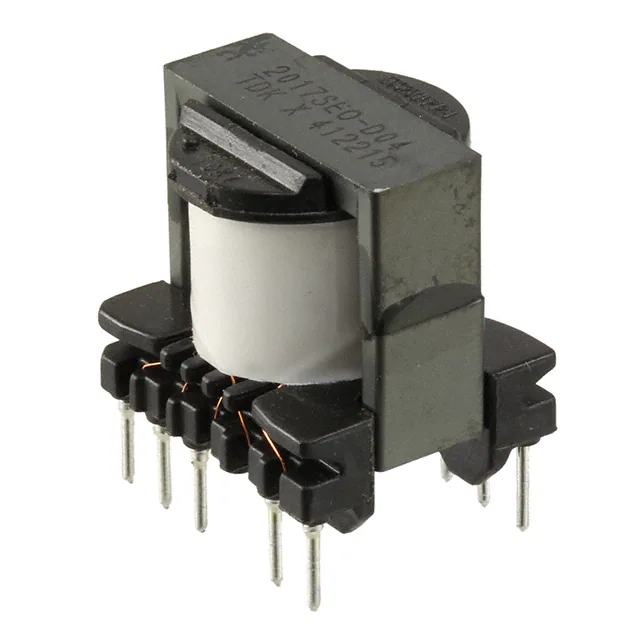

ECO2017SEO-D04V015XFMR FLYBCK AC/DC CONV 3.18MH TH |
210 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 160 ~ 288V | 12V @ 300mA | 3000Vrms | 3.18mH @ 10kHz | 100kHz | -30°C ~ 120°C | - | - | Through Hole | 0.768" L x 0.886" W (19.50mm x 22.50mm) | 0.945" (24.00mm) | 0.768" L x 0.886" W (19.50mm x 22.50mm) | - |
|
ECO2425SLD-D02H0111XFMR FLYBACK AC/DC CONV 446UH TH |
183 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 276V | 5V @ 2.2A, 12V @ 200mA | 3000Vrms | 446µH @ 10kHz | 67kHz | -30°C ~ 120°C | - | - | Through Hole | 1.024" L x 1.181" W (26.00mm x 30.00mm) | 0.787" (20.00mm) | 1.024" L x 1.181" W (26.00mm x 30.00mm) | - |
|
ECO2225SEO-D02V0112XFMR FLYBCK AC/DC CONV 1.33MH TH |
138 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 180 ~ 276V | 12.3V @ 3.2A | 4000Vrms | 1.33mH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 1.122" L x 0.906" W (28.50mm x 23.00mm) | 1.220" (31.00mm) | 1.122" L x 0.906" W (28.50mm x 23.00mm) | - |
|

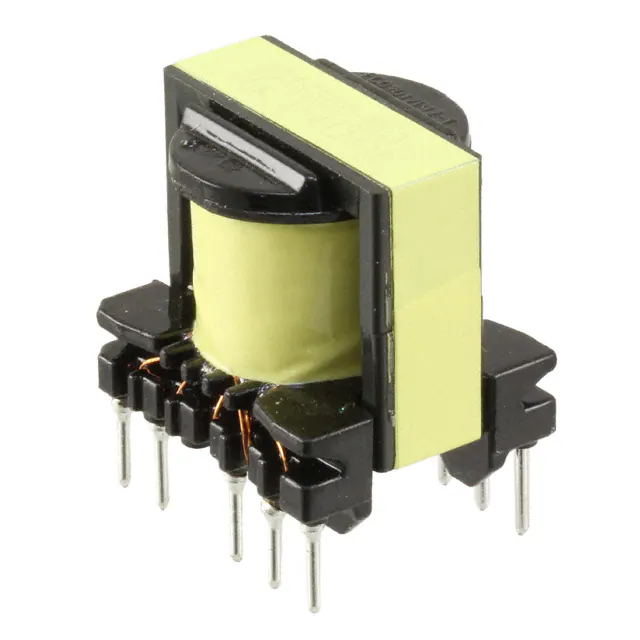

ECO2017SEO-D03V014XFMR FLYBACK AC/DC CONV 555UH TH |
209 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 264V | 12V @ 1A | 3000Vrms | 555µH @ 100kHz | - | -30°C ~ 120°C | - | - | Through Hole | 0.768" L x 0.886" W (19.50mm x 22.50mm) | 0.945" (24.00mm) | 0.768" L x 0.886" W (19.50mm x 22.50mm) | - |
|
ECO2225SEO-D01H016XFMR FLYBACK AC/DC CONV 567UH TH |
115 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 276V | 12V @ 50mA, 12V @ 1.5A | 3000Vrms | 567µH @ 10kHz | 67kHz | -30°C ~ 120°C | - | - | Through Hole | 1.024" L x 1.201" W (26.00mm x 30.50mm) | 0.945" (24.00mm) | 1.024" L x 1.201" W (26.00mm x 30.50mm) | - |
|
ECO2425SEO-D03V014XFMR FLYBACK AC/DC CONV 2.8MH TH |
145 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 170 ~ 230V | 36.5V @ 900mA | 1500Vrns | 2.8mH @ 10kHz | 30kHz | -30°C ~ 120°C | - | - | Through Hole | 1.122" L x 0.945" W (28.50mm x 24.00mm) | 1.240" (31.50mm) | 1.122" L x 0.945" W (28.50mm x 24.00mm) | - |
|
ECO2420SEO-D04V0110XFMR FLYBCK AC/DC CONV 1.54MH TH |
118 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 214 ~ 404V | 12V @ 1.25A, 14V @ 250mA | 1500Vrms | 1.54mH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 1.240" L x 0.984" W (31.50mm x 25.00mm) | 1.043" (26.50mm) | 1.240" L x 0.984" W (31.50mm x 25.00mm) | - |
Switching Converter, SMPS Transformers FAQ
Common questions about filtering, comparing and sourcing Switching Converter, SMPS Transformers components.
How can I narrow the Switching Converter, SMPS Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Switching Converter, SMPS Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
