Switching Converter, SMPS Transformers
Use the filters and product table below to compare Switching Converter, SMPS Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VGT15SEFD-200S1A4XFMR FLYBACK AC/DC CONV 10UH SMD |
509 | - |
|
Datasheet | VGT | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | 2600Vrms | 10µH @ 100kHz | - | -40°C ~ 130°C | - | - | Surface Mount | 0.614" L x 0.606" W (15.60mm x 15.40mm) | 0.394" (10.00mm) | 0.764" L x 0.614" W (19.40mm x 15.60mm) | Wirewound |
|
ECO2023SEO-D02V015XFMR FLYBACK AC/DC CONV TH |
4,644 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | - | - | 50kHz | -30°C ~ 120°C | - | - | Through Hole | - | 1.181" (30.00mm) | - | - |
|
|
ECO2020SEO-D14V014XFMR FLYBACK AC/DC CONV TH |
4,894 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | - | - | 50kHz | -30°C ~ 120°C | - | - | Through Hole | - | 1.063" (27.00mm) | - | - |
|
|
ECO2230SEO-D04V016XFMR FLYBACK AC/DC CONV TH |
2,635 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | - | - | 50kHz | -30°C ~ 120°C | - | - | Through Hole | - | 1.417" (36.00mm) | - | - |
|
VGT22EPC-200S6A12XFMR FLYBACK AC/DC CONV 2.5UH SM |
1,414 | - |
|
Datasheet | VGT | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | 2600Vrms | 2.5µH @ 100kHz | - | -40°C ~ 130°C | - | - | Surface Mount | 1.299" L x 0.976" W (33.00mm x 24.80mm) | 0.539" (13.70mm) | 1.299" L x 1.055" W (33.00mm x 26.80mm) | Wirewound |
|

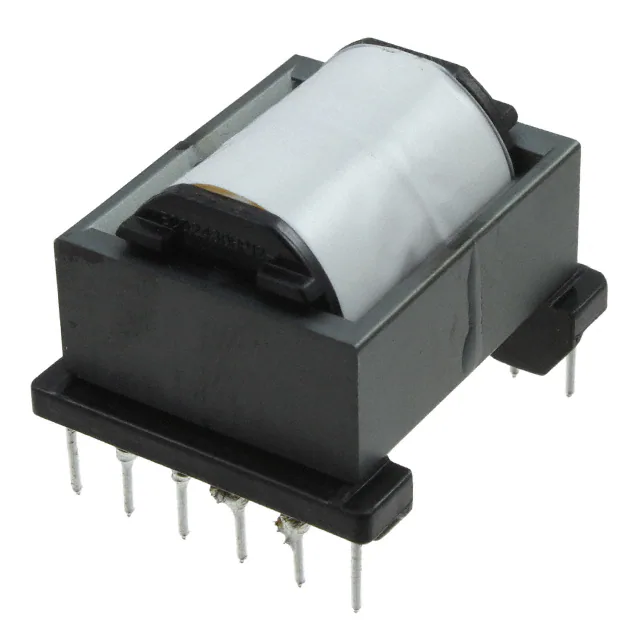

ECO2430SEO-D03H016XFMR FLYBACK AC/DC CONV 680UH TH |
3,190 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 187 ~ 264V | 5V @ 1A, 24V @ 2A | 3000Vrms | 680µH @ 10kHz | 67kHz | -30°C ~ 120°C | - | - | Through Hole | 1.181" L x 1.417" W (30.00mm x 36.00mm) | 0.984" (25.00mm) | 1.181" L x 1.417" W (30.00mm x 36.00mm) | - |
|

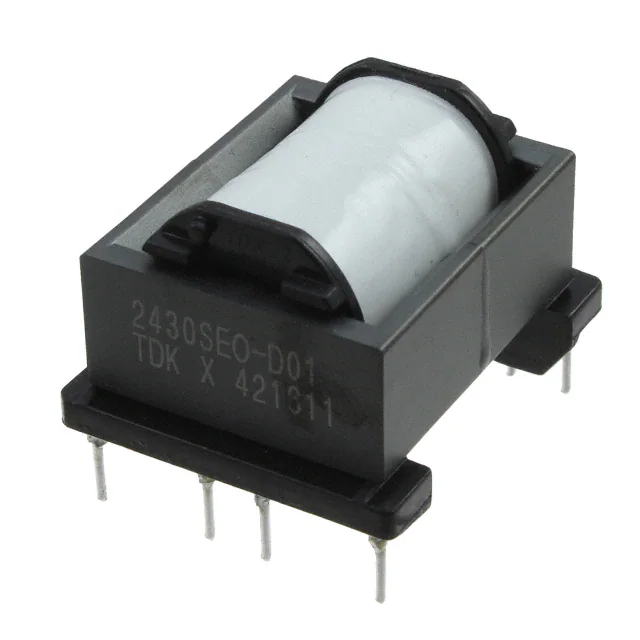

ECO2430SEO-D01H0110XFMR FLYBACK AC/DC CONV 450UH TH |
2,517 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 390 V | 12V @ 2A, 17V @ 500mA | 3000Vrms | 450µH @ 10kHz | 100kHz | -30°C ~ 120°C | - | - | Through Hole | 1.181" L x 1.417" W (30.00mm x 36.00mm) | 0.984" (25.00mm) | 1.181" L x 1.417" W (30.00mm x 36.00mm) | - |
|
PCA14.5/6ER-U03S002XFMR 21.6UH SMD |
1,831 | - |
|
Datasheet | PCA14.5/6ER | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | Parallel 21.6µH @ 10kHz, Series 778µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.307" (7.80mm) | 0.642" L x 0.661" W (16.30mm x 16.80mm) | - |
|
ECO2425SLD-D01H017XFMR FLYBACK AC/DC CONV 722UH TH |
4,059 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 100 ~ 370V | 12.7V @ 2.33A | 3000Vrms | 722µH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 1.024" L x 1.181" W (26.00mm x 30.00mm) | 0.787" (20.00mm) | 1.024" L x 1.181" W (26.00mm x 30.00mm) | - |
|
ECO2020SEO-D10V017XFMR FLYBACK AC/DC CONV 770UH TH |
4,735 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 96 ~ 276V | 15V @ 150mA, 18V @ 150mA | 3000Vrms | 770µH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 0.886" L x 0.768" W (22.50mm x 19.50mm) | 1.063" (27.00mm) | 0.886" L x 0.768" W (22.50mm x 19.50mm) | - |
Switching Converter, SMPS Transformers FAQ
Common questions about filtering, comparing and sourcing Switching Converter, SMPS Transformers components.
How can I narrow the Switching Converter, SMPS Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Switching Converter, SMPS Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
