Switching Converter, SMPS Transformers
Use the filters and product table below to compare Switching Converter, SMPS Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

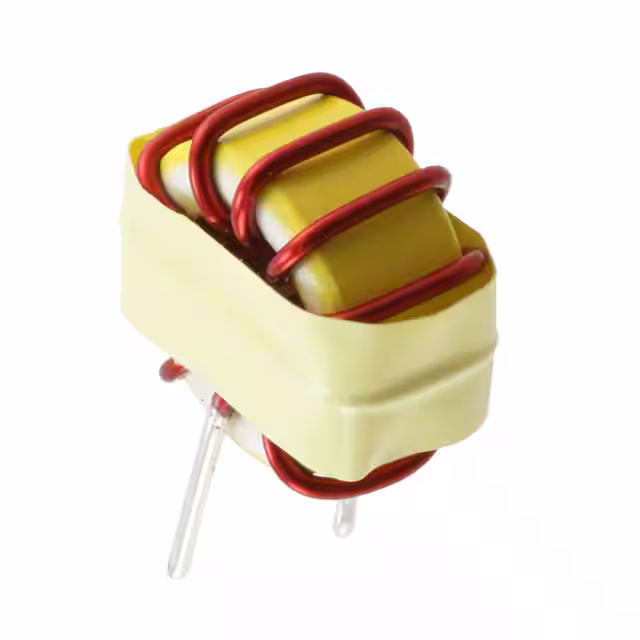

750310344XFMR LED DR AC/DC CONV 10UH TH |
3,204 | - |
|
Datasheet | - | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TPS92010DR | Texas Instruments | - | - | - | 10µH @ 100kHz | - | - | - | - | Through Hole | 1.000" Dia x 0.530" W (25.40mm x 13.46mm) | 1.000" (25.40mm) | 1.000" Dia x 0.530" W (25.40mm x 13.46mm) | - |
|
750811445XFMR ISOL AC/DC CONV 1.5MH TH |
4,201 | - |
|
Datasheet | WE-UNIT, MID-OLTI | Tray | Active | For AC/DC Converters | Isolation | - | - | 90 ~ 375V | 18V @ 10mA | 4500Vrms | 1.5mH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.635" (16.13mm) | 0.800" L x 0.960" W (20.32mm x 24.38mm) | - |
|
750314288XFMR FLYBACK AC/DC CONV 2.5MH TH |
3,111 | - |
|
Datasheet | WE-UNIT, MID-OLSTM | Tray | Active | For AC/DC Converters | Flyback Converters | - | STMicroelectronics | 120 ~ 375V | - | 2500Vrms | 2.5mH @ 10kHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.740" (18.80mm) | - | - |
|

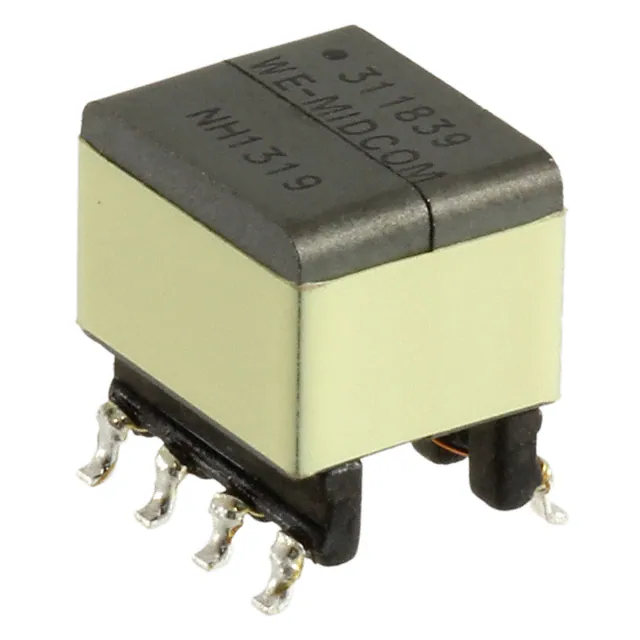

750311839XFMR FLYBACK DC/DC CONV 200UH SM |
1,757 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3512 | Linear Technology | 36 ~ 72V | - | 1500Vrms | 200µH @ 100kHz | 190kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.69mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
750811050XFMR FLYBACK DC/DC CONV 1.5MH TH |
2,449 | - |
|
Datasheet | WE-FB | Tray | Active | For DC/DC Converters | Flyback Converters | LT3748 | Linear Technology | 100 ~ 400V | 15V | 4500Vrms | 1.5mH @ 10kHz | 70 ~ 130kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.635" (16.13mm) | 0.800" L x 0.960" W (20.32mm x 24.38mm) | - |
|

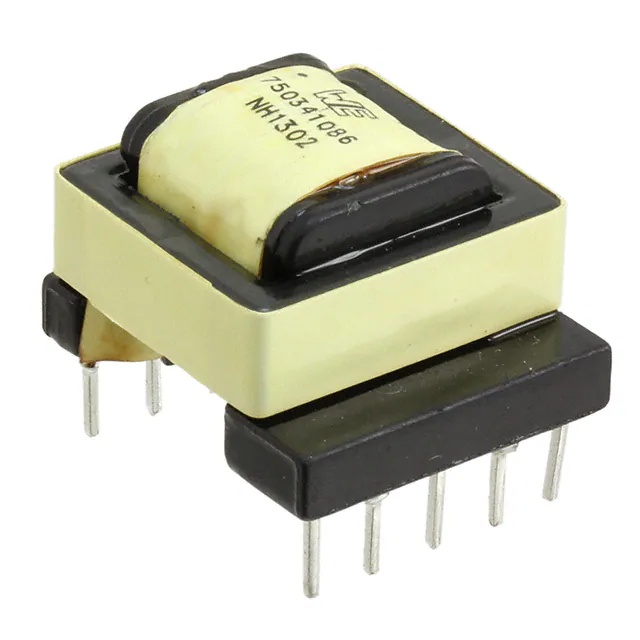

750341086XFMR LED DR AC/DC CONV 850UH TH |
4,765 | - |
|
Datasheet | MID-OLTI | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 135V | 22V @ 10mA | 4500Vrms | 850µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.665" L x 0.740" W (16.90mm x 18.80mm) | 0.529" (13.44mm) | 0.665" L x 0.740" W (16.90mm x 18.80mm) | - |
|
750314746XFMR ISOL BUCK DC/DC CON 22UH SM |
3,209 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Isolated Buck Converters | - | - | 36 ~ 72V | - | - | 22µH @ 100kHz | 200 ~ 350kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.307" (7.80mm) | - | - |
|
|
750314747XFMR ISOL BUCK DC/DC CON 33UH SM |
1,784 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Isolated Buck Converters | - | - | 36 ~ 72V | - | - | 33µH @ 100kHz | 200 ~ 350kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.307" (7.80mm) | - | - |
|
|
750314748XFMR ISOL BUCK DC/DC CON 47UH SM |
2,294 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Isolated Buck Converters | - | - | 36 ~ 72V | - | - | 47µH @ 100kHz | 200 ~ 350kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.307" (7.80mm) | - | - |
|
750317072XFMR FWD P-P DC/DC CONV 200UH SM |
2,739 | - |
|
Datasheet | MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 200µH @ 10kHz | 420kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.450" L x 0.327" W (11.43mm x 8.30mm) | 0.165" (4.20mm) | 0.581" L x 0.327" W (14.75mm x 8.30mm) | - |
Switching Converter, SMPS Transformers FAQ
Common questions about filtering, comparing and sourcing Switching Converter, SMPS Transformers components.
How can I narrow the Switching Converter, SMPS Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Switching Converter, SMPS Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
