Audio Transformers
Use the filters and product table below to compare Audio Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

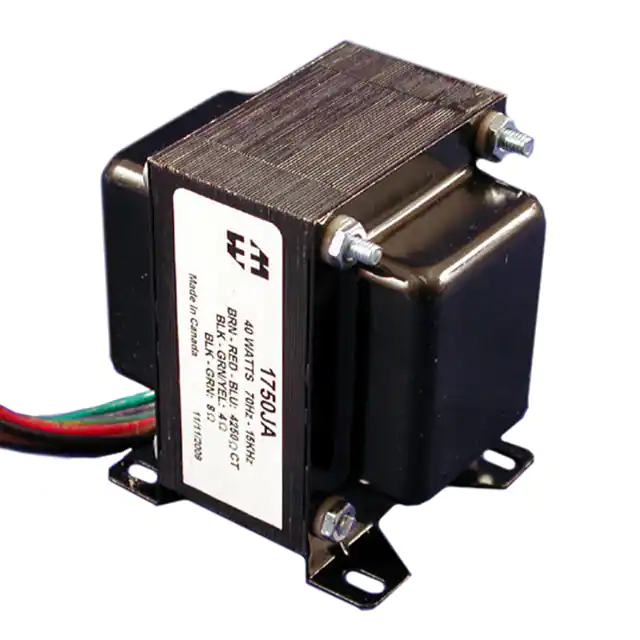

1750JAXFMR 4.25KCT / 4, 8 CHAS MNT |
3,208 | - |
|
Datasheet | 1750 | Bulk | Active | - | 4.25kCT | 4, 8 | 82Ohm, 108.3Ohm | 253mOhm, 462mOhm | - | 70Hz ~ 15kHz | ±1dB | 2000V @ 1 Second | - | - | 40W | - | - | Chassis Mount | 2.500" L x 3.150" W (63.50mm x 80.01mm) | 3.319" (84.30mm) | Wire Leads |
|
290XXAUDIO XFMR CHAS MNT |
1,093 | - |
|
Datasheet | 290 | Bulk | Active | - | - | - | 8.03Ohm | 140mOhm, 3.7Ohm, 40.72Ohm | - | - | - | 120/240VAC | - | - | - | - | - | Chassis Mount | 3.000" L x 2.500" W (76.20mm x 63.50mm) | 2.013" (51.13mm) | Wire Leads |
|

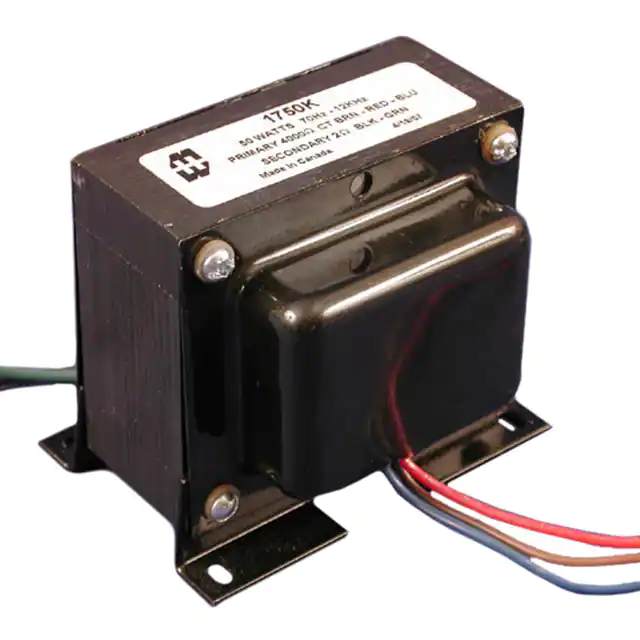

1750KAUDIO XFMR 4KCT / 2 CHAS MNT |
2,843 | - |
|
Datasheet | 1750 | Box | Active | 44.67:1 | 4kCT | 2 | 43.16Ohm, 46.28Ohm | 180mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 50W | - | - | Chassis Mount | 4.063" L x 3.125" W (103.20mm x 79.38mm) | 3.516" (89.31mm) | Wire Leads |
|
1750KAAUDIO XFMR 4.15KCT / 2 CHAS MNT |
1,914 | - |
|
Datasheet | 1750 | Bulk | Active | - | 4.15kCT | 2 | 45.53Ohm, 49.09Ohm | 140mOhm | - | 70Hz ~ 15kHz | ±1dB | 2000V @ 1 Second | - | - | 50W | - | - | Chassis Mount | 4.050" L x 3.136" W (102.87mm x 79.65mm) | 3.563" (90.50mm) | Wire Leads |
|
1609AXFMR 10KCT / 4, 8, 16 CHAS MNT |
3,327 | - |
|
Datasheet | A | Box | Active | - | 10kCT | 4, 8, 16 | 102.2Ohm, 114.3Ohm | 321mOhm, 365mOhm, 476mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 30Hz ~ 30kHz | ±1dB | 2000V @ 1 Second | - | - | 10W | - | - | Chassis Mount | 2.750" L x 2.500" W (69.85mm x 63.50mm) | 3.060" (77.72mm) | Wire Leads |
|
1750YAUDIO XFMR 6.2KCT / 8 CHAS MNT |
1,935 | - |
|
Datasheet | 1750 | Box | Active | 27.87:1 | 6.2kCT | 8 | 289Ohm | 480mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 15W | - | - | Chassis Mount | 2.500" L x 3.328" W (63.50mm x 84.53mm) | 3.123" (79.32mm) | Wire Leads |
|
1750QXFMR 7.371KCT / 4, 8, 16 CHAS MT |
1,893 | - |
|
Datasheet | 1750 | Box | Active | 21.46:1 | 7.371kCT | 4, 8, 16 | 81.61Ohm, 78.63Ohm | 120mOhm, 190mOhm, 270mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 50Hz ~ 12kHz | ±1dB | - | - | - | 50W | - | - | Chassis Mount | 3.125" L x 3.280" W (79.38mm x 83.31mm) | 3.813" (96.85mm) | Wire Leads |
|
|
1760KXFMR 4KCT / 2, 4, 8 CHAS MNT |
4,145 | - |
|
Datasheet | 1760 | Box | Active | 44.67:1 | 4kCT | 2, 4, 8 | 89.43Ohm | 91mOhm, 183mOhm, 219mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 50W | - | - | Chassis Mount | 4.063" L x 3.125" W (103.20mm x 79.38mm) | 3.516" (89.31mm) | Wire Leads |
|

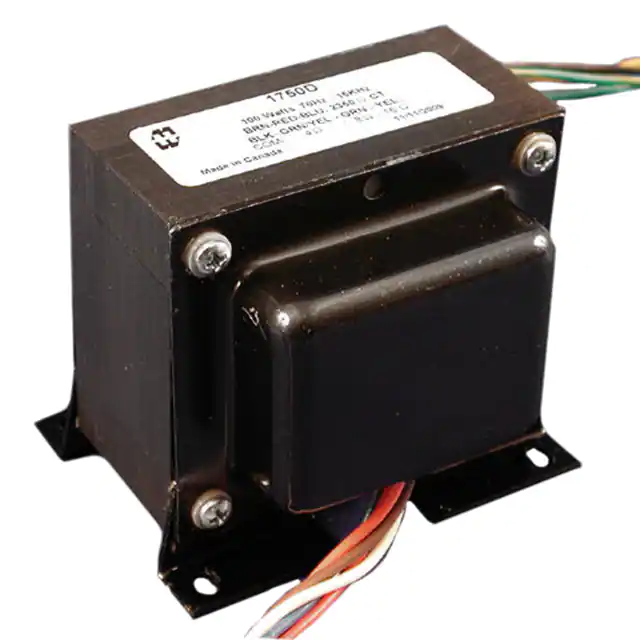

1750DXFMR 2.35KCT/25M / 4, 8, 16 CHAS |
2,486 | - |
|
Datasheet | 1750 | Bulk | Active | - | 2.35kCT/25m | 4, 8, 16 | 33.09Ohm, 34.82Ohm, 370mOhm | 300mOhm, 690mOhm, 860mOhm | - | 70Hz ~ 15kHz | ±1dB | 2000V @ 1 Second | - | - | 100W | - | - | Chassis Mount | 4.050" L x 3.715" W (102.87mm x 94.36mm) | 3.563" (90.50mm) | Wire Leads |
|
126CAUDIO XFMR 10K / 10K CHAS MNT |
1,923 | - |
|
Datasheet | 126 | Box | Active | - | 10k | 10k | 375Ohm | 375Ohm | Single Ended Audiophile, Ultra-Linear - Tube Output | 20Hz ~ 20kHz | ±1dB | 400VDC | - | - | 4W | - | - | Chassis Mount | 3.120" L x 2.500" W (79.25mm x 63.50mm) | 3.120" (79.25mm) | Wire Leads |
Audio Transformers FAQ
Common questions about filtering, comparing and sourcing Audio Transformers components.
How can I narrow the Audio Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Audio Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
