Audio Transformers
Use the filters and product table below to compare Audio Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1140-MN-BAUDIO XFMR 150 / 3.8K CHAS MNT |
4,179 | - |
|
Datasheet | 1140 | Bulk | Active | 1:5 | 150 | 3.8k | - | - | Impedance Matching | 20Hz ~ 20kHz | ±0.35dB | - | - | - | - | - | - | Chassis Mount | - | - | Screw Terminal |
|
290UXAUDIO XFMR CHAS MNT |
2,128 | - |
|
Datasheet | 290 | Bulk | Active | - | - | - | 4.14Ohm | 80mOhm, 4.8Ohm, 44.94Ohm | - | - | - | 120/240VAC | - | - | - | - | - | Chassis Mount | 3.125" L x 3.250" W (79.38mm x 82.55mm) | 3.813" (96.85mm) | Wire Leads |
|
1750PXFMR 3.4KCT / 2, 4, 8, 16 CHAS |
1,103 | - |
|
Datasheet | 1750 | Box | Active | 14.24:1 | 3.4kCT | 2, 4, 8, 16 | 41.3Ohm, 40.5Ohm, 81.8Ohm | 120mOhm, 150mOhm, 210mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 50Hz ~ 12kHz | ±1dB | - | - | - | 50W | - | - | Chassis Mount | 3.750" L x 3.090" W (95.25mm x 78.49mm) | 3.188" (80.98mm) | Solder Lug |
|
|
290QXAUDIO XFMR CHAS MNT |
2,133 | - |
|
Datasheet | 290 | Bulk | Active | - | - | - | 8.054Ohm, 9.752Ohm | 166mOhm, 4.776Ohm, 52.25Ohm | - | - | - | 120/240VAC | - | - | - | - | - | Chassis Mount | 3.375" L x 2.385" W (85.73mm x 60.58mm) | 2.876" (73.05mm) | Solder Lug |
|
1750UXFMR 1.7KCT / 4, 8, 16 CHAS MNT |
2,356 | - |
|
Datasheet | 1750 | Box | Active | 10.40:1 | 1.7kCT | 4, 8, 16 | 15.36Ohm, 16.56Ohm | 100mOhm, 120mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 50Hz ~ 12kHz | ±1dB | - | - | - | 100W | - | - | Chassis Mount | 3.750" L x 4.020" W (95.25mm x 102.11mm) | 4.600" (116.84mm) | Wire Leads |
|

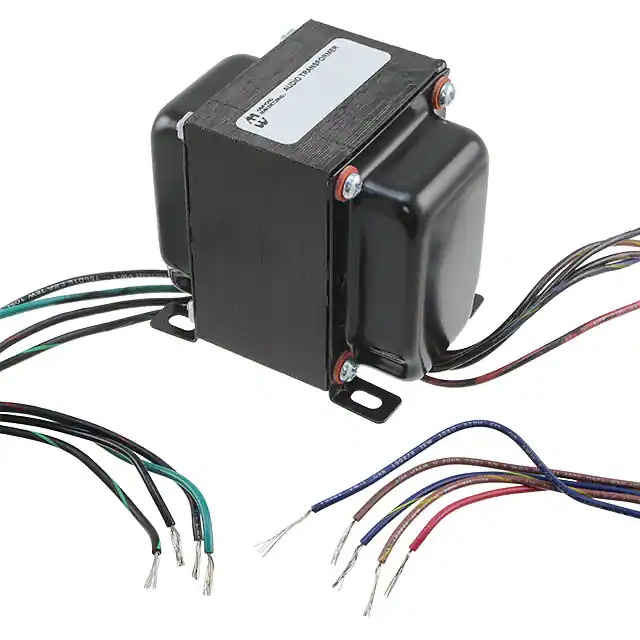

1650EXFMR 8KCT / 4, 8, 16 CHAS MNT |
4,380 | - |
|
Datasheet | A | Box | Active | - | 8kCT | 4, 8, 16 | 98.98Ohm, 101.9Ohm | 154mOhm, 218mOhm, 303mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 30Hz ~ 30kHz | ±1dB | 2000V @ 1 Second | - | - | 15W | - | - | Chassis Mount | 3.250" L x 2.500" W (82.55mm x 63.50mm) | 3.060" (77.72mm) | Wire Leads |
|
|
1750VAUDIO XFMR 4KCT / 8, 16 CHAS MNT |
1,835 | - |
|
Datasheet | 1750 | Box | Active | 15.93:1 | 4kCT | 8, 16 | 138Ohm | 720mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 30W | - | - | Chassis Mount | 3.125" L x 3.325" W (79.38mm x 84.46mm) | 3.843" (97.61mm) | Wire Leads |
|
|
290VXAUDIO XFMR CHAS MNT |
3,033 | - |
|
Datasheet | 290 | Bulk | Active | - | - | - | 1.52Ohm | 80mOhm, 4.75Ohm, 10.34Ohm | - | - | - | 120/240VAC | - | - | - | - | - | Chassis Mount | 4.125" L x 3.985" W (104.77mm x 101.22mm) | 3.858" (97.99mm) | Wire Leads |
|
850GAXFMR 600 150/150 / 600 150/150 |
4,661 | - |
|
Datasheet | 850A | Bulk | Active | - | 600, 150/150 | 600, 150/150 | 71Ohm | 71Ohm | - | 20Hz ~ 20kHz | ±0.5dB | - | 1dB | - | 15dB | - | - | Chassis Mount | 1.700" L x 1.200" W (43.18mm x 30.48mm) | 1.650" (41.90mm) | Wire Leads |
|
|
850NAXFMR 600 150/150 / 40K 10K/10K |
1,208 | - |
|
Datasheet | 850A | Bulk | Active | - | 600, 150/150 | 40k, 10k/10k | 65Ohm | 4.98kOhm | - | 20Hz ~ 20kHz | ±0.5dB | - | 1dB | - | 15dB | - | - | Chassis Mount | 1.700" L x 1.200" W (43.18mm x 30.48mm) | 1.650" (41.90mm) | Wire Leads |
