Audio Transformers
Use the filters and product table below to compare Audio Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

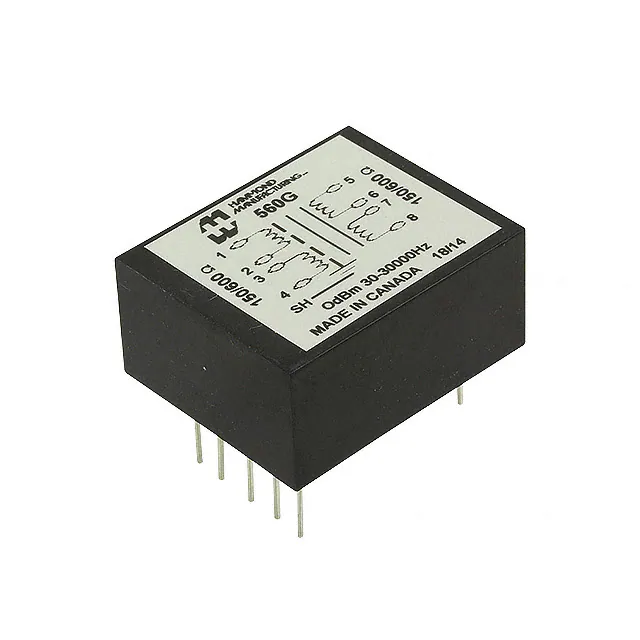

560GXFMR 600 150/150 / 600 150/150 |
2,639 | - |
|
Datasheet | 560 | Bulk | Active | - | 600, 150/150 | 600, 150/150 | - | - | Broadcast Quality | 30Hz ~ 30kHz | ±1dB | - | 1dB Max | - | - | - | - | Through Hole | 1.330" L x 1.640" W (33.78mm x 41.66mm) | 0.850" (21.59mm) | PC Pin |
|
107BAUDIO XFMR 150CT / 12 TH |
2,054 | - |
|
Datasheet | 107 | Bulk | Active | 3.53:1 | 150CT | 12 | 22Ohm | 1.85Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 150mW | - | - | Through Hole | 0.630" L x 0.586" W (16.00mm x 14.88mm) | 0.630" (16.00mm) | PC Pin |
|
109EAUDIO XFMR 600CT / 3.2CT TH |
1,660 | - |
|
Datasheet | 109 | Bulk | Active | 6.88:1 | 600CT | 3.2CT | 40Ohm | 270mOhm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 2W | - | - | Through Hole | 1.315" L x 0.930" W (33.40mm x 23.62mm) | 0.920" (23.37mm) | PC Pin |
|

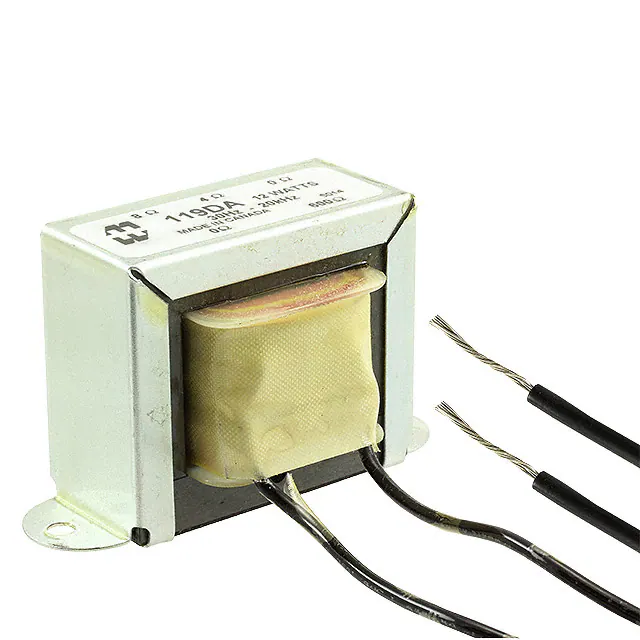

119DAAUDIO XFMR 600 / 4, 8 CHAS MNT |
1,669 | - |
|
Datasheet | 119 | Bulk | Active | - | 600 | 4, 8 | - | - | Tube Driver and Speaker Matching | 30Hz ~ 20kHz | ±1dB | - | - | - | 12W | - | - | Chassis Mount | 3.280" L x 2.350" W (83.31mm x 59.69mm) | 2.000" (50.80mm) | Wire Leads |
|
1750CAUDIO XFMR 5K, 8K / 3.2 CHAS MNT |
1,049 | - |
|
Datasheet | 1750 | Box | Active | 49.16:1 | 5k, 8k | 3.2 | 314.2Ohm | 295mOhm | Single Ended Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 5W | - | - | Chassis Mount | 2.813" L x 1.560" W (71.45mm x 39.62mm) | 1.746" (44.35mm) | Wire Leads |
|

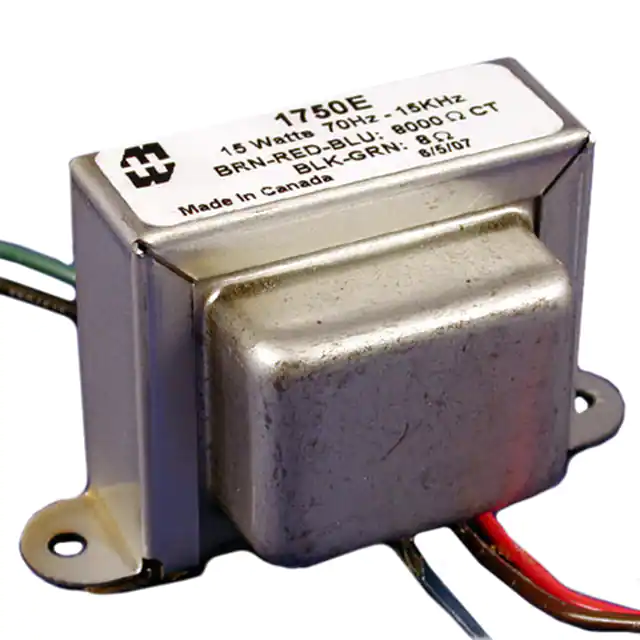

1750EAUDIO XFMR 8KCT / 8 CHAS MNT |
4,201 | - |
|
Datasheet | 1750 | Box | Active | 32.61:1 | 8kCT | 8 | 150Ohm, 300Ohm | 450mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 15W | - | - | Chassis Mount | 3.250" L x 2.085" W (82.55mm x 52.96mm) | 2.058" (52.27mm) | Wire Leads |
|
|
1760CXFMR 5K, 8K / 3.2, 8, 16 CHAS MT |
4,261 | - |
|
Datasheet | 1760 | Box | Active | 44.61:1 | 5k, 8k | 3.2, 8, 16 | 284.2Ohm | 292mOhm | Single Ended Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 5W | - | - | Chassis Mount | 2.813" L x 1.560" W (71.45mm x 39.62mm) | 1.746" (44.35mm) | Wire Leads |
|
1140-LN-BAUDIO XFMR 10K / 10K CHAS MNT |
4,944 | - |
|
Datasheet | 1140 | Bulk | Active | 1:1 | 10k | 10k | - | - | Impedance Matching | 20Hz ~ 20kHz | ±0.35dB | - | - | - | - | - | - | Chassis Mount | - | - | Screw Terminal |
|

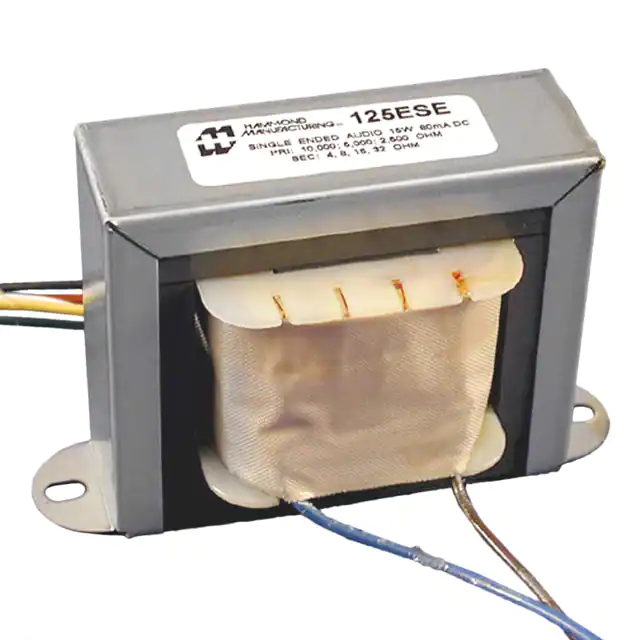

125ESEXFMR 2.5K-10K / 4-32 CHAS MNT |
4,272 | - |
|
Datasheet | 125SE | Bulk | Active | - | 2.5k ~ 10k | 4 ~ 32 | 100.5Ohm | 590mOhm | General Purpose | 100Hz ~ 15kHz | ±1dB | 1500V @ 1 Second | - | - | 15W | - | - | Chassis Mount | 4.500" L x 2.360" W (114.30mm x 59.94mm) | 2.940" (74.68mm) | Wire Leads |
|
1608XFMR 8KCT / 4, 8, 16 CHAS MNT |
2,309 | - |
|
Datasheet | 1600 | Bulk | Active | - | 8kCT | 4, 8, 16 | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | 30Hz ~ 30kHz | ±1dB | - | ±1dB | - | 10W | - | - | Chassis Mount | 2.750" L x 2.500" W (69.85mm x 63.50mm) | 3.060" (77.72mm) | Wire Leads |
