Audio Transformers
Use the filters and product table below to compare Audio Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1650KPAUDIO XFMR 3.4KCT / 4, 8, 16 TH |
2,481 | - |
|
Datasheet | 1600 | Bulk | Obsolete | - | 3.4kCT | 4, 8, 16 | - | - | Push-Pull Potted, Ultra-Linear - Tube Output | 30Hz ~ 30kHz | ±1dB | - | - | - | 50W | - | - | Through Hole | 3.880" L x 3.310" W (98.55mm x 84.07mm) | 4.250" (107.95mm) | - |
|
107DAUDIO XFMR 150CT / 150CT TH |
1,050 | - |
|
Datasheet | 107 | Bulk | Active | 1:1 | 150CT | 150CT | 22Ohm | 27Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 150mW | - | - | Through Hole | 0.630" L x 0.586" W (16.00mm x 14.88mm) | 0.630" (16.00mm) | PC Pin |
|

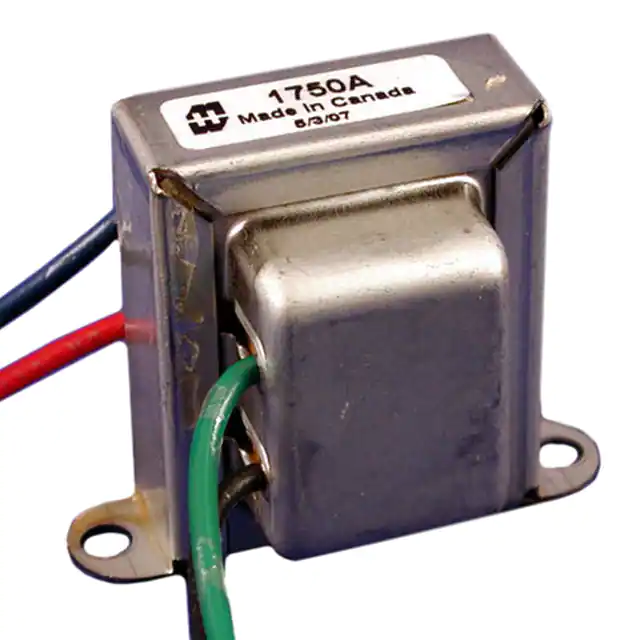

1750AAUDIO XFMR 22.8K / 8 CHAS MNT |
3,430 | - |
|
Datasheet | 1750 | Box | Active | 53.11:1 | 22.8k | 8 | 1.065kOhm | 1.02Ohm | Single Ended Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 3.5W | - | - | Chassis Mount | 2.000" L x 1.440" W (50.80mm x 36.58mm) | 1.773" (45.03mm) | Wire Leads |
|
124AAUDIO XFMR 10K / 90KCT CHAS MNT |
3,796 | - |
|
Datasheet | 124 | Bulk | Active | 1:3 | 10k | 90kCT | 405Ohm | 1.525kOhm | Tube Driver and Speaker Matching | 150Hz ~ 15kHz | ±1dB | 500Vrms | - | - | 5W | - | - | Chassis Mount | 2.380" L x 1.350" W (60.45mm x 34.29mm) | 1.430" (36.32mm) | Wire Leads |
|
1760HXFMR 6.6KCT / 4, 8, 16 CHAS MNT |
2,721 | - |
|
Datasheet | 1760 | Box | Active | 40.62:1, 28.72:1, 20.31:1 | 6.6kCT | 4, 8, 16 | 347.8Ohm | 686mOhm, 803mOhm, 1.157Ohm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 20W | - | - | Chassis Mount | 3.710" L x 2.400" W (94.23mm x 60.96mm) | 2.371" (60.22mm) | Wire Leads |
|

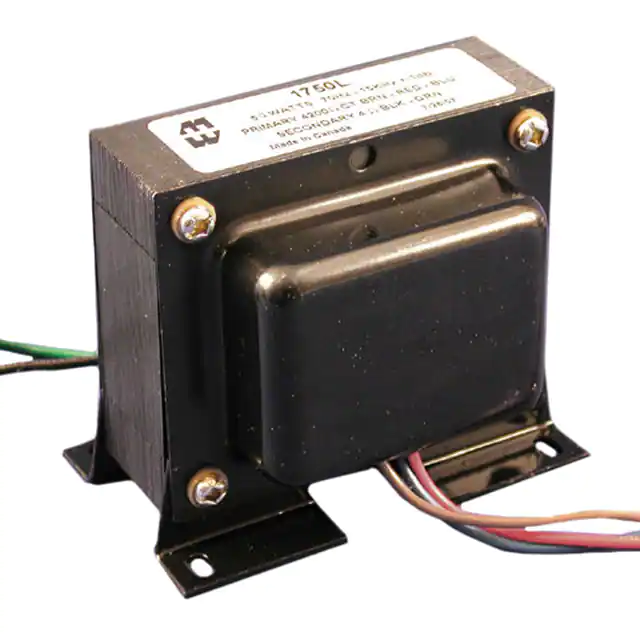

1750LAUDIO XFMR 4.2KCT / 4 CHAS MNT |
2,906 | - |
|
Datasheet | 1750 | Box | Active | 31.16:1 | 4.2kCT | 4 | 46.48Ohm, 51.04Ohm | 170mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 60W | - | - | Chassis Mount | 4.050" L x 3.050" W (102.87mm x 77.47mm) | 3.523" (89.48mm) | Wire Leads |
|
1650FXFMR 7.6KCT / 4, 8, 16 CHAS MNT |
2,383 | - |
|
Datasheet | 1600 | Bulk | Active | - | 7.6kCT | 4, 8, 16 | 210Ohm | 220mOhm, 270mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 30Hz ~ 30kHz | ±1dB | 2000V @ 1 Second | ±1dB | - | 25W | - | - | Chassis Mount | 3.500" L x 2.500" W (88.90mm x 63.50mm) | 3.060" (77.72mm) | Wire Leads |
|
1629SEAXFMR 6.5K / 4, 8, 16 CHAS MNT |
2,197 | - |
|
Datasheet | 1600 | Box | Active | - | 6.5k | 4, 8, 16 | - | - | Single Ended Audiophile, Ultra-Linear - Tube Output | 20Hz ~ 20kHz | ±1dB | 2000Vrms | ±1dB | - | 30W | - | - | Chassis Mount | 4.500" L x 3.750" W (114.30mm x 95.25mm) | 4.560" (115.82mm) | Wire Leads |
|

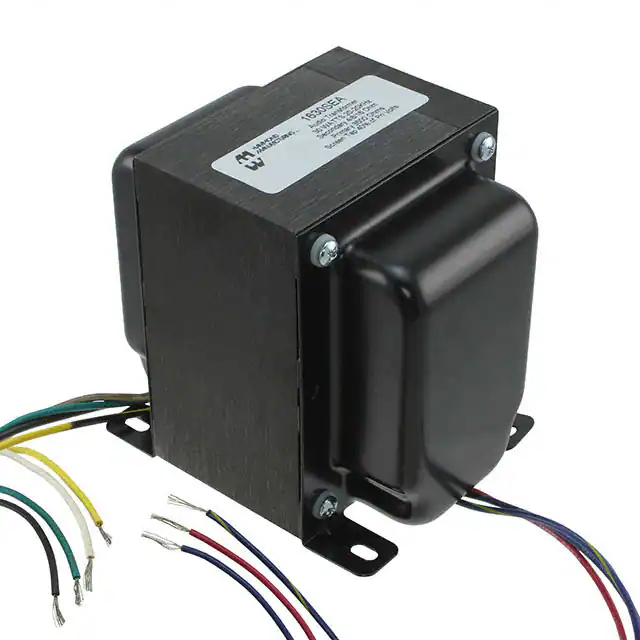

1630SEAXFMR 3.5K / 4, 8, 16 CHAS MNT |
2,835 | - |
|
Datasheet | 1600 | Box | Active | - | 3.5k | 4, 8, 16 | 110.1Ohm | 634mOhm | Single Ended Audiophile, Ultra-Linear - Tube Output | 20Hz ~ 20kHz | ±1dB | 2828VDC @ 1 Second | ±1dB | - | 30W | - | - | Chassis Mount | 4.980" L x 3.750" W (126.49mm x 95.25mm) | 4.650" (118.11mm) | Wire Leads |
|
145HAUDIO XFMR 2K / 500CT CHAS MNT |
2,584 | - |
|
Datasheet | 145 | Bulk | Active | - | 2k | 500CT | 148Ohm | 17Ohm | Economical Open Type | 150Hz ~ 15kHz | ±1dB | - | - | - | 135mW | - | - | Chassis Mount | 1.630" L x 0.880" W (41.40mm x 22.35mm) | 0.810" (20.57mm) | Wire Leads |
Audio Transformers FAQ
Common questions about filtering, comparing and sourcing Audio Transformers components.
How can I narrow the Audio Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Audio Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
