Audio Transformers
Use the filters and product table below to compare Audio Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109LAUDIO XFMR 10KCT / 3.2CT TH |
2,214 | - |
|
Datasheet | 109 | Bulk | Active | 55.3:1 | 10kCT | 3.2CT | 300Ohm | 200mOhm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 2W | - | - | Through Hole | 1.315" L x 0.930" W (33.40mm x 23.62mm) | 0.920" (23.37mm) | PC Pin |
|

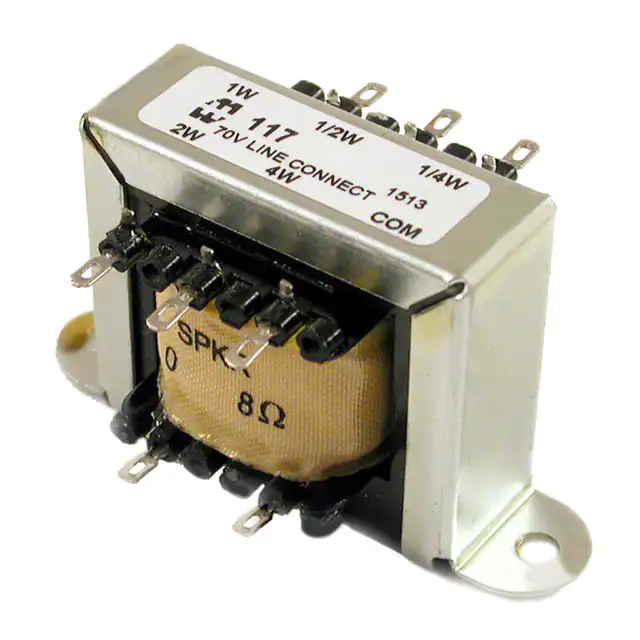

117F32AUDIO XFMR 8 / 70V CHAS MNT |
3,837 | - |
|
Datasheet | 117 | Bulk | Active | - | 8 | 70V | - | - | Sound Distribution | 100Hz ~ 9kHz | 1dB | - | 2dB | - | 32W | - | - | Chassis Mount | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) | Solder Lug |
|

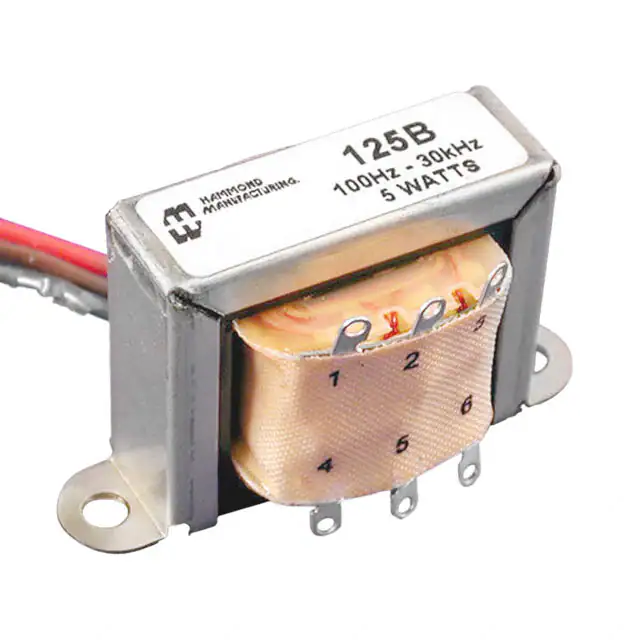

125BXFMR 1.2K-25K / 1.5-15 CHAS MNT |
4,935 | - |
|
Datasheet | 125 | Bulk | Active | - | 1.2k ~ 25k | 1.5 ~ 15 | - | - | General Purpose | 150Hz ~ 15kHz | ±1dB | - | - | - | 5W | - | - | Chassis Mount | 2.380" L x 1.380" W (60.45mm x 35.05mm) | 1.380" (35.05mm) | Wire Leads |
|
1760EXFMR 8.5KCT / 4, 8, 16 CHAS MNT |
2,993 | - |
|
Datasheet | 1760 | Box | Active | 32.61:1 | 8.5kCT | 4, 8, 16 | 150Ohm | 300Ohm, 450mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 15W | - | - | Chassis Mount | 3.250" L x 2.085" W (82.55mm x 52.96mm) | 2.058" (52.27mm) | Wire Leads |
|
290WXAUDIO XFMR CHAS MNT |
4,182 | - |
|
Datasheet | 290 | Bulk | Active | - | - | - | 22.5Ohm | 240mOhm, 185.4Ohm | - | - | - | 120/240VAC | - | - | - | - | - | Chassis Mount | 3.250" L x 2.360" W (82.55mm x 59.94mm) | 2.058" (52.27mm) | Wire Leads |
|

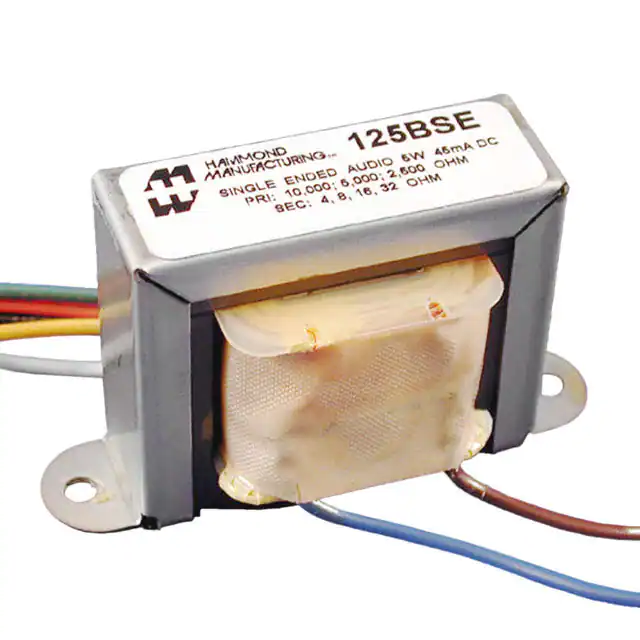

125BSEXFMR 2.5K-10K / 4-32 CHAS MNT |
4,683 | - |
|
Datasheet | 125SE | Bulk | Active | - | 2.5k ~ 10k | 4 ~ 32 | - | - | General Purpose | 100Hz ~ 15kHz | ±1dB | - | - | - | 5W | - | - | Chassis Mount | 3.250" L x 1.630" W (82.55mm x 41.40mm) | 2.000" (50.80mm) | Wire Leads |
|
119Y60XFMR 16, 8 / 70V 25V CHAS MNT |
3,611 | - |
|
Datasheet | 119 | Bulk | Active | - | 16, 8 | 70V, 25V | - | - | Sound Distribution | 50Hz ~ 10kHz | - | 25V, 70V | - | - | 60W | - | - | Chassis Mount | 3.250" L x 2.500" W (82.55mm x 63.50mm) | 3.060" (77.72mm) | Wire Leads |
|
560LXFMR 600 150/150 / 20K 5K/5K TH |
2,933 | - |
|
Datasheet | 560 | Bulk | Active | - | 600, 150/150 | 20k, 5k/5k | - | - | Broadcast Quality | 30Hz ~ 30kHz | ±1dB | - | 1dB Max | - | - | - | - | Through Hole | 1.330" L x 1.640" W (33.78mm x 41.66mm) | 0.850" (21.59mm) | PC Pin |
|
|
560QXFMR 40K 10K/10K / 40K 10K/10K |
3,006 | - |
|
Datasheet | 560 | Bulk | Active | - | 40k, 10k/10k | 40k, 10k/10k | - | - | Broadcast Quality | 30Hz ~ 15kHz | ±1dB | - | 1dB Max | - | - | - | - | Through Hole | 1.330" L x 1.640" W (33.78mm x 41.66mm) | 0.850" (21.59mm) | PC Pin |
|

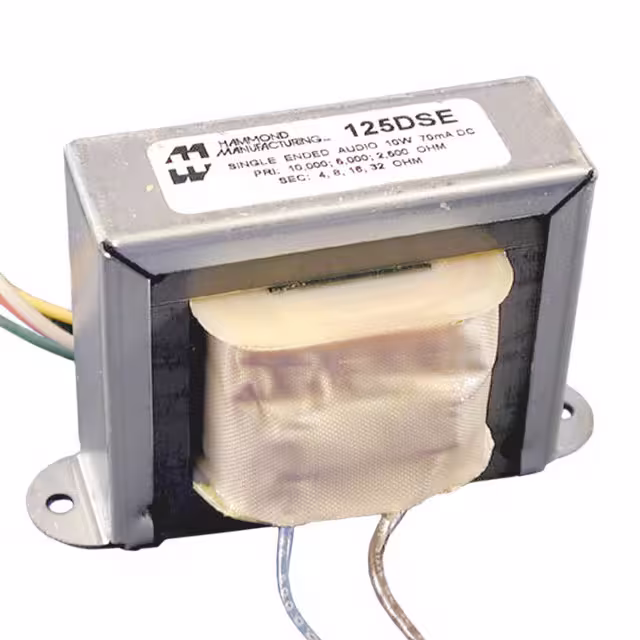

125DSEXFMR 2.5K-10K / 4-32 CHAS MNT |
3,198 | - |
|
Datasheet | 125SE | Bulk | Active | - | 2.5k ~ 10k | 4 ~ 32 | 115Ohm | 590mOhm | General Purpose | 100Hz ~ 15kHz | ±1dB | 1500V @ 1 Second | - | - | 10W | - | - | Chassis Mount | 4.000" L x 2.100" W (101.60mm x 53.34mm) | 2.630" (66.80mm) | Wire Leads |
