FET, MOSFET Arrays
Use the filters and product table below to compare FET, MOSFET Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCSM120DUM11T3AGMOSFET 2N-CH 1200V 254A SP3F |
3 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Common Source | - | 1200V (1.2kV) | 254A (Tc) | 10.4mOhm @ 120A, 20V | 2.8V @ 3mA | 696nC @ 20V | 9060pF @ 1000V | 1067W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
MSCSM170HM45CT3AGMOSFET 4N-CH 1700V 64A |
3 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | - | 1700V (1.7kV) | 64A (Tc) | 45mOhm @ 30A, 20V | 3.2V @ 2.5mA | 178nC @ 20V | 3300pF @ 1000V | 319W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
MSCSM170DUM11T3AGMOSFET 2N-CH 1700V 240A SP3F |
5 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Common Source | - | 1700V (1.7kV) | 240A (Tc) | 11.3mOhm @ 120A, 20V | 3.2V @ 10mA | 712nC @ 20V | 13200pF @ 1000V | 1140W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
MSCSM120TAM31CT3AGMOSFET 6N-CH 1200V 89A SP3F |
3 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 89A (Tc) | 31mOhm @ 40A, 20V | 2.8V @ 1mA | 232nC @ 20V | 3020pF @ 1000V | 395W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
MSCSM120DUM08T3AGMOSFET 2N-CH 1200V 337A SP3F |
3 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Common Source | - | 1200V (1.2kV) | 337A (Tc) | 7.8mOhm @ 80A, 20V | 2.8V @ 4mA | 928nC @ 20V | 12100pF @ 1000V | 1409W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
MSCSM170TLM23C3AGMOSFET 4N-CH 1700V 124A SP3F |
6 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 1700V (1.7kV) | 124A (Tc) | 22.5mOhm @ 60A, 20V | 3.2V @ 5mA | 356nC @ 20V | 6600pF @ 1000V | 602W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
MSCSM170TAM45CT3AGMOSFET 6N-CH 1700V 64A |
16 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1700V (1.7kV) | 64A (Tc) | 45mOhm @ 30A, 20V | 3.2V @ 2.5mA | 178nC @ 20V | 3300pF @ 1000V | 319W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170AM15CT3AGMOSFET 2N-CH 1700V 181A |
16 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 181A (Tc) | 15mOhm @ 90A, 20V | 3.2V @ 7.5mA | 534nC @ 20V | 9900pF @ 1000V | 862W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|

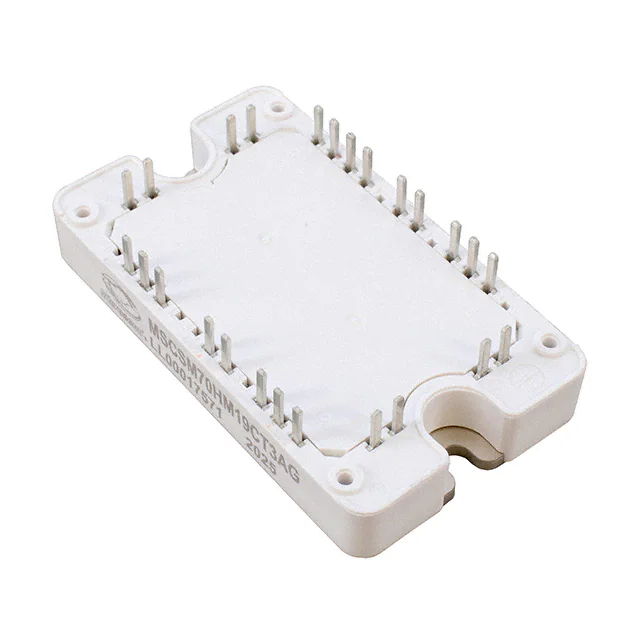

MSCSM120AM08CT3AGMOSFET 2N-CH 1200V 337A SP3F |
2 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 337A (Tc) | 7.8mOhm @ 160A, 20V | 2.8V @ 4mA | 928nC @ 20V | 12.08pF @ 1000V | 1.409kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
MSCSM70DUM025AGMOSFET 2N-CH 700V 689A |
5 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Common Source | - | 700V | 689A (Tc) | 3.2mOhm @ 240A, 20V | 2.4V @ 24mA | 1290nC @ 20V | 27000pF @ 700V | 1882W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
FET, MOSFET Arrays FAQ
Common questions about filtering, comparing and sourcing FET, MOSFET Arrays components.
How can I narrow the FET, MOSFET Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FET, MOSFET Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
