FET, MOSFET Arrays
Use the filters and product table below to compare FET, MOSFET Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCSM120DUM042AGMOSFET 2N-CH 1200V 495A |
2 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Common Source | - | 1200V (1.2kV) | 495A (Tc) | 5.2mOhm @ 240A, 20V | 2.8V @ 6mA | 1392nC @ 20V | 18100pF @ 1000V | 2031W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170TAM23CTPAGMOSFET 6N-CH 1700V 122A |
3 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 6 N-Channel (Phase Leg) | - | 1700V (1.7kV) | 122A (Tc) | 22.5mOhm @ 60A, 20V | 3.2V @ 5mA | 356nC @ 20V | 6600pF @ 1000V | 588W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|

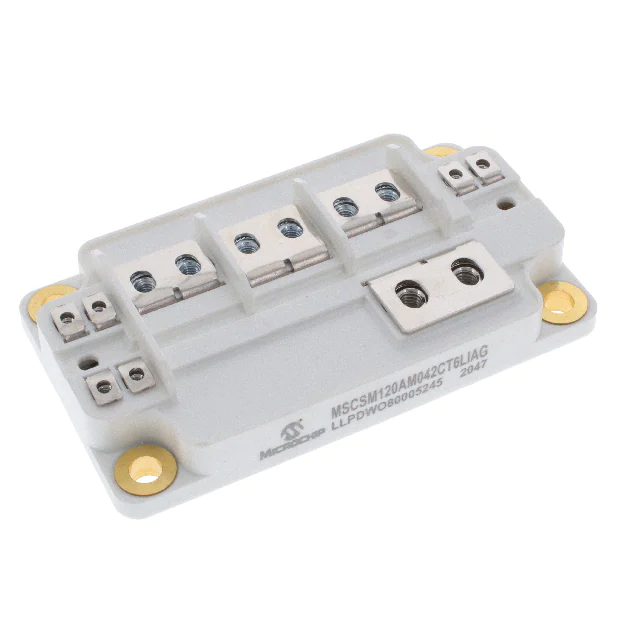

MSCSM120AM042CT6LIAGMOSFET 2N-CH 1200V 495A SP6C LI |
4 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 495A (Tc) | 5.2mOhm @ 240A, 20V | 2.8V @ 6mA | 1392nC @ 20V | 18100pF @ 1kV | 2.031kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C LI |
|
|
MSCSM120AM042CD3AGMOSFET 2N-CH 1200V 495A D3 |
3 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 495A (Tc) | 5.2mOhm @ 240A, 20V | 2.8V @ 6mA | 1392nC @ 20V | 18.1pF @ 1000V | 2.031kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | D3 |
|
|
MSCSM70TLM05CAGMOSFET 4N-CH 700V 464A SP6C |
7 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 700V | 464A (Tc) | 4.8mOhm @ 160A, 20V | 2.4V @ 16mA | 860nC @ 20V | 18000pF @ 700V | 1277W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C |
|
|
MSCSM170HM12CAGMOSFET 4N-CH 1700V 179A |
13 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | - | 1700V (1.7kV) | 179A (Tc) | 15mOhm @ 90A, 20V | 3.2V @ 7.5mA | 534nC @ 20V | 9900pF @ 1000V | 843W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170AM058CT6AGMOSFET 2N-CH 1700V 353A |
3 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 353A (Tc) | 7.5mOhm @ 180A, 20V | 3.3V @ 15mA | 1068nC @ 20V | 19800pF @ 1000V | 1.642kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170TAM15CTPAGMOSFET 6N-CH 1700V 179A |
8 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 6 N-Channel (Phase Leg) | - | 1700V (1.7kV) | 179A (Tc) | 15mOhm @ 90A, 20V | 3.2V @ 7.5mA | 534nC @ 20V | 9900pF @ 1000V | 843W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|

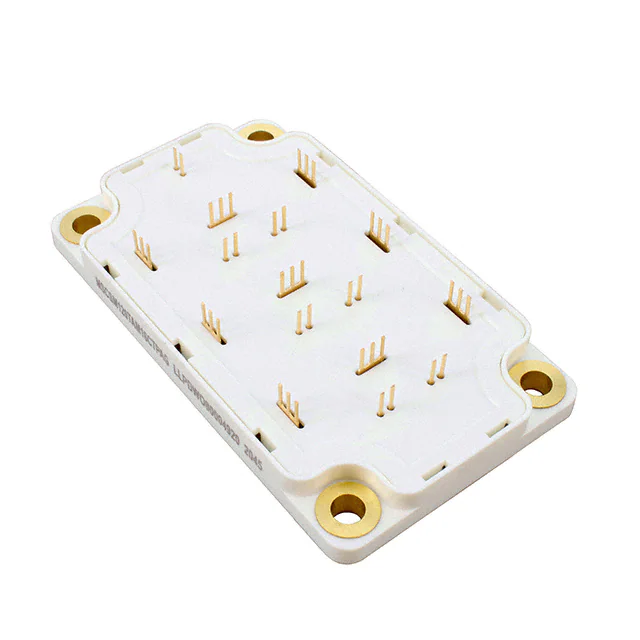

MSCSM120TAM11CTPAGMOSFET 6N-CH 1200V 251A SP6-P |
2 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 251A (Tc) | 10.4mOhm @ 120A, 20V | 2.8V @ 3mA | 696nC @ 20V | 9060pF @ 1000V | 1.042kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6-P |
|
MSCSM120AM03CT6LIAGMOSFET 2N-CH 1200V 805A SP6C LI |
2 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 805A (Tc) | 3.1mOhm @ 400A, 20V | 2.8V @ 10mA | 2320nC @ 20V | 30200pF @ 1kV | 3.215kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C LI |
FET, MOSFET Arrays FAQ
Common questions about filtering, comparing and sourcing FET, MOSFET Arrays components.
How can I narrow the FET, MOSFET Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FET, MOSFET Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
