FET, MOSFET Arrays
Use the filters and product table below to compare FET, MOSFET Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCSM70TLM10C3AGMOSFET 4N-CH 700V 241A MODULE |
15 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 4 N-Channel | - | 700V | 241A (Tc) | 9.5mOhm @ 80A, 20V | 2.4V @ 8mA (Typ) | 430nC @ 20V | 9000pF @ 700V | 690W (Tc) | -40°C ~ 175°C (TJ) | - | - | Through Hole | Module |
|

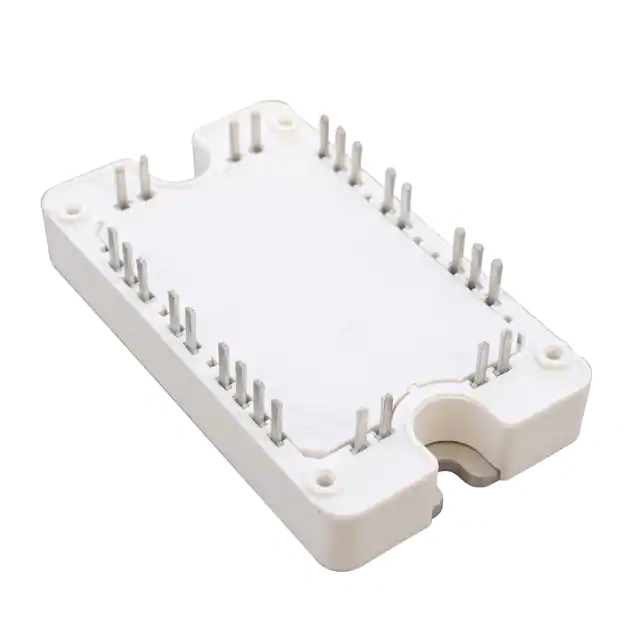

MSCSM120AM11CT3AGMOSFET 2N-CH 1200V 254A SP3F |
3 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 254A (Tc) | 10.4mOhm @ 120A, 20V | 2.8V @ 3mA | 696nC @ 20V | 9060pF @ 1000V | 1.067kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
MSCM20AM058GMOSFET 2N-CH 200V 280A LP8 |
3 | - |
|
Datasheet | - | Module | Box | Active | MOSFET (Metal Oxide) | 2 N Channel (Phase Leg) | - | 200V | 280A (Tc) | - | - | - | - | - | - | - | - | Chassis Mount | LP8 |
|
|
MSCSM170TLM15CAGMOSFET 4N-CH 1700V 179A SP6C |
5 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 1700V (1.7kV) | 179A (Tc) | 15mOhm @ 90A, 20V | 3.2V @ 7.5mA | 534nC @ 20V | 9900pF @ 1000V | 843W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C |
|
|
MSCSM70TLM07CAGMOSFET 4N-CH 700V 349A SP6C |
4 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 700V | 349A (Tc) | 6.4mOhm @ 120A, 20V | 2.4V @ 12mA | 645nC @ 20V | 13500pF @ 700V | 966W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C |
|
|
MSCSM70VR1M10CTPAGMOSFET 6N-CH 700V 238A |
2 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 6 N-Channel (Phase Leg) | - | 700V | 238A (Tc) | 9.5mOhm @ 80A, 20V | 2.4V @ 8mA | 430nC @ 20V | 9000pF @ 700V | 674W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM120TLM11CAGMOSFET 4N-CH 1200V 251A SP6C |
4 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 1200V (1.2kV) | 251A (Tc) | 10.4mOhm @ 120A, 20V | 2.8V @ 3mA | 696nC @ 20V | 9000pF @ 1000V | 1042W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C |
|
|
MSCSM170TLM11CAGMOSFET 4N-CH 1700V 238A SP6C |
5 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 1700V (1.7kV) | 238A (Tc) | 11.3mOhm @ 120A, 20V | 3.2V @ 10mA | 712nC @ 20V | 13200pF @ 1000V | 1114W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C |
|
|
MSCSM120TLM08CAGMOSFET 4N-CH 1200V 333A SP6C |
6 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 1200V (1.2kV) | 333A (Tc) | 7.8mOhm @ 80A, 20V | 2.8V @ 4mA | 928nC @ 20V | 12000pF @ 1000V | 1378W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C |
|

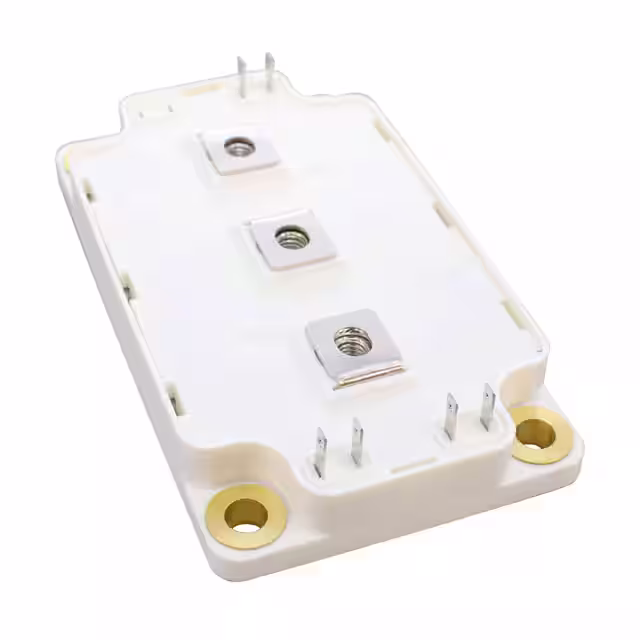

MSCSM120AM027CT6AGMOSFET 2N-CH 1200V 733A SP6C |
12 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 733A (Tc) | 3.5mOhm @ 360A, 20V | 2.8V @ 9mA | 2088nC @ 20V | 27000pF @1000V | 2.97kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C |
FET, MOSFET Arrays FAQ
Common questions about filtering, comparing and sourcing FET, MOSFET Arrays components.
How can I narrow the FET, MOSFET Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FET, MOSFET Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
