Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM0603-56NJFIXED IND 56NH 600MA 310MOHM SMD |
3,203 | - |
|
Datasheet | PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 600 mA | - | Unshielded | 310mOhm | 40 @ 200MHz | 1.9GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
PM0603-68NJFIXED IND 68NH 600MA 1.7 OHM SMD |
3,404 | - |
|
Datasheet | PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 600 mA | - | Unshielded | 1.7Ohm | 40 @ 200MHz | 1.7GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
PM0603-82NJFIXED IND 82NH 400MA 540MOHM SMD |
2,414 | - |
|
Datasheet | PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 400 mA | - | Unshielded | 540mOhm | 35 @ 150MHz | 1.7GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
PM0603-R12JFIXED IND 120NH 300MA 650MOHM SM |
4,859 | - |
|
Datasheet | PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 300 mA | - | Unshielded | 650mOhm | 35 @ 150MHz | 1.3GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|

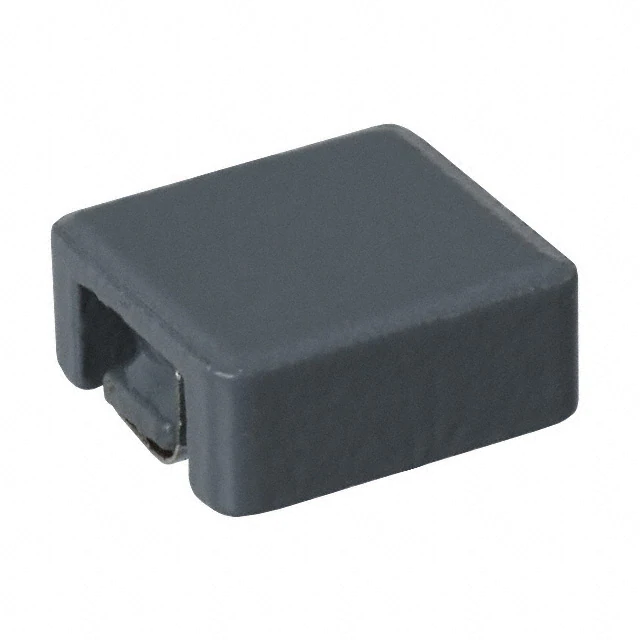

PM7232S-R22MFIXED IND 220NH 17A 1.7 MOHM SMD |
4,564 | - |
|
Datasheet | PM7232S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 nH | ±20% | 17 A | - | Shielded | 1.7mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
100217FIXED IND 6.8UH 1.3A 170 MOHM TH |
3,151 | - |
|
Datasheet | M | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 6.8 µH | ±10% | 1.3 A | - | Unshielded | 170mOhm Max | 70 @ 7.9MHz | 65MHz | - | - | 7.9 MHz | - | Through Hole | - | 0.250" Dia x 0.600" L (6.35mm x 15.24mm) | - |
|
PM1038S-R75MFIXED IND 750NH 20A 3.5 MOHM SMD |
3,354 | - |
|
Datasheet | PM1038S | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 750 nH | ±20% | 20 A | - | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
2100HT-150-HFIXED IND 15UH 9.1A 14 MOHM TH |
3,726 | - |
|
Datasheet | 2100HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 15 µH | ±15% | 9.1 A | - | Shielded | 14mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2200HT-101-HFIXED IND 100UH 5.3A 61 MOHM TH |
3,567 | - |
|
Datasheet | 2200HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 100 µH | ±15% | 5.3 A | - | Shielded | 61mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2200HT-220-HFIXED IND 22UH 9.3A 20 MOHM TH |
1,657 | - |
|
Datasheet | 2200HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 22 µH | ±15% | 9.3 A | - | Shielded | 20mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
