Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2300HT-181-HFIXED IND 180UH 7.2A 55 MOHM TH |
4,585 | - |
|
Datasheet | 2300HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 180 µH | ±15% | 7.2 A | - | Shielded | 55mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|

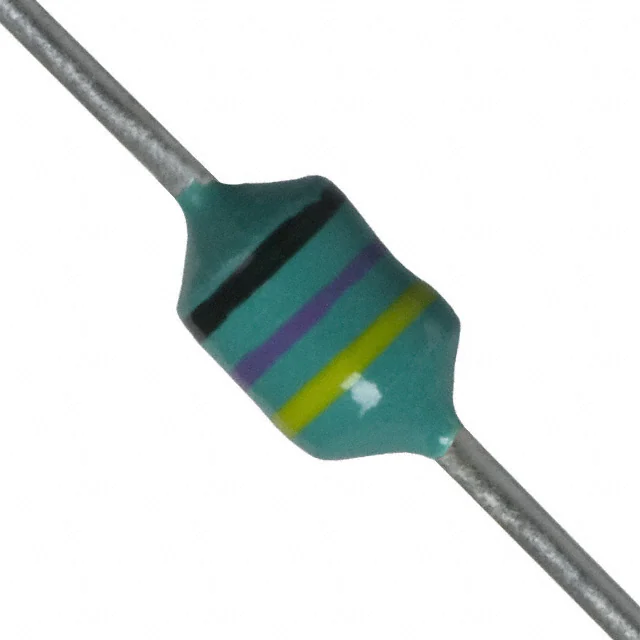

79F470KFIXED IND 47UH 70MA 5.8 OHM TH |
4,074 | - |
|
Datasheet | 79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 70 mA | - | Unshielded | 5.8Ohm Max | 40 @ 2.5MHz | 12MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
PM74SH-100MFIXED IND 10UH 1.65A 70 MOHM SMD |
1,709 | - |
|
Datasheet | PM74SH | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.65 A | - | Shielded | 70mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|

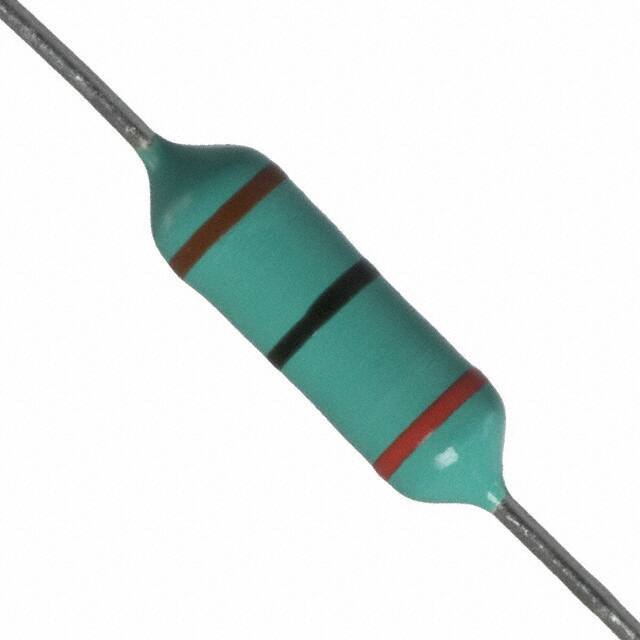

08450FIXED INDUCTOR TH |
1,298 | - |
|
Datasheet | - | Axial | Bulk | Obsolete | - | - | - | - | - | - | Unshielded | - | - | - | - | - | - | - | Through Hole | - | - | - |
|

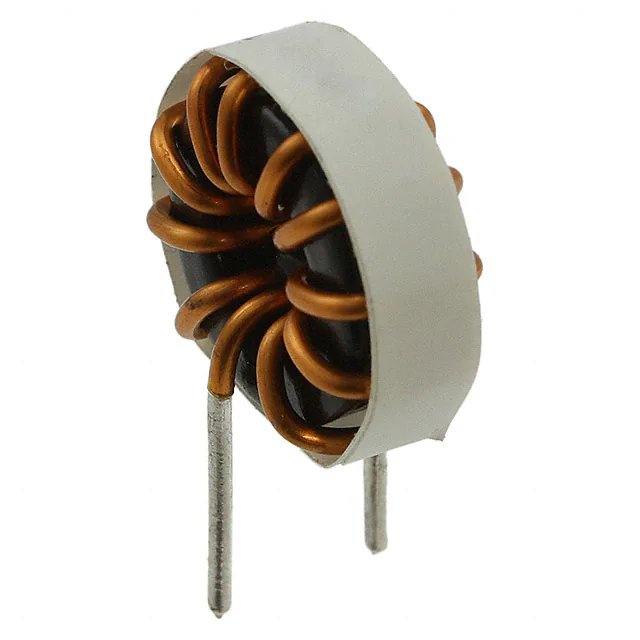

2100LL-4R7-V-RCFIXED IND 4.7UH 14A 3 MOHM TH |
4,264 | - |
|
Datasheet | 2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 4.7 µH | ±20% | 14 A | - | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-680-V-RCFIXED IND 68UH 4.7A 30 MOHM TH |
4,820 | - |
|
Datasheet | 2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 68 µH | ±15% | 4.7 A | - | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-820-V-RCFIXED IND 82UH 4.6A 32 MOHM TH |
2,308 | - |
|
Datasheet | 2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 82 µH | ±15% | 4.6 A | - | Shielded | 32mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-181-V-RCFIXED IND 180UH 3.7A 48 MOHM TH |
4,083 | - |
|
Datasheet | 2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 180 µH | ±15% | 3.7 A | - | Shielded | 48mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-471-V-RCFIXED IND 470UH 2.3A 124 MOHM TH |
4,490 | - |
|
Datasheet | 2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 470 µH | ±15% | 2.3 A | - | Shielded | 124mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-102-V-RCFIXED IND 1MH 1.5A 284 MOHM TH |
1,204 | - |
|
Datasheet | 2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 1 mH | ±15% | 1.5 A | - | Shielded | 284mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
