Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
79F6R8K-RCFIXED IND 6.8UH 175MA 2 OHM TH |
1,326 | - |
|
Datasheet | 79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 175 mA | - | Unshielded | 2Ohm Max | 40 @ 7.9MHz | 26MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
79F100K-TR-RCFIXED IND 10UH 160MA 2.4 OHM TH |
2,206 | - |
|
Datasheet | 79F | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 160 mA | - | Unshielded | 2.4Ohm Max | 40 @ 7.9MHz | 22MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
79F180K-RCFIXED IND 18UH 140MA 3.1 OHM TH |
2,051 | - |
|
Datasheet | 79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 140 mA | - | Unshielded | 3.1Ohm Max | 40 @ 2.5MHz | 17MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|

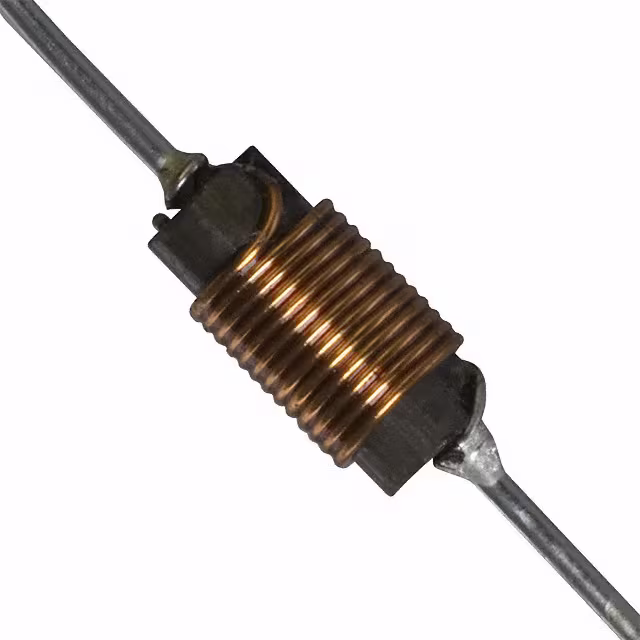

70F106AI-RCFIXED IND 1UH 2.041A 48 MOHM TH |
2,641 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 1 µH | ±20% | 2.041 A | - | Unshielded | 48mOhm Max | 41 @ 25MHz | 118MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
70F104AI-RCFIXED IND 100UH 139MA 7.68OHM TH |
2,053 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 100 µH | ±5% | 139 mA | - | Unshielded | 7.68Ohm Max | 25 @ 2.5MHz | 3.6MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
70F103AI-RCFIXED IND 1MH 79MA 24 OHM TH |
1,340 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 1 mH | ±5% | 79 mA | - | Unshielded | 24Ohm Max | 30 @ 790kHz | 1.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.220" Dia x 0.250" L (5.59mm x 6.35mm) | - |
|

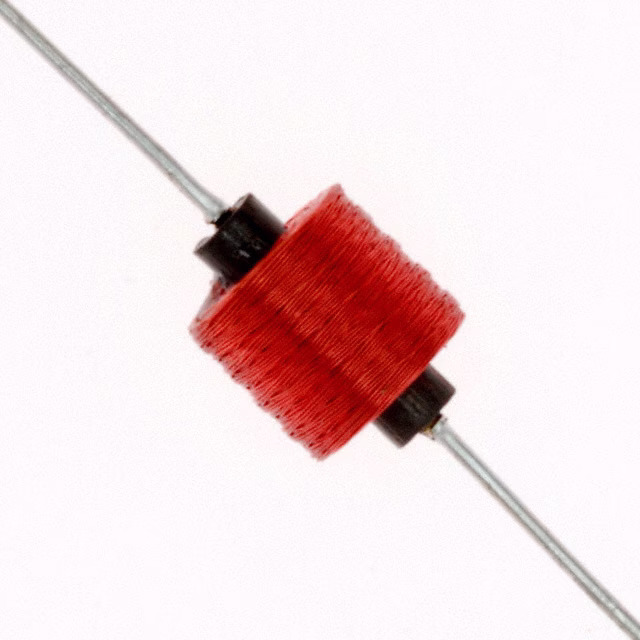

70F102AI-RCFIXED IND 10MH 38MA 101 OHM TH |
3,542 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 10 mH | ±5% | 38 mA | - | Unshielded | 101Ohm Max | 41 @ 250kHz | 520kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.330" Dia x 0.380" L (8.38mm x 9.65mm) | - |
|

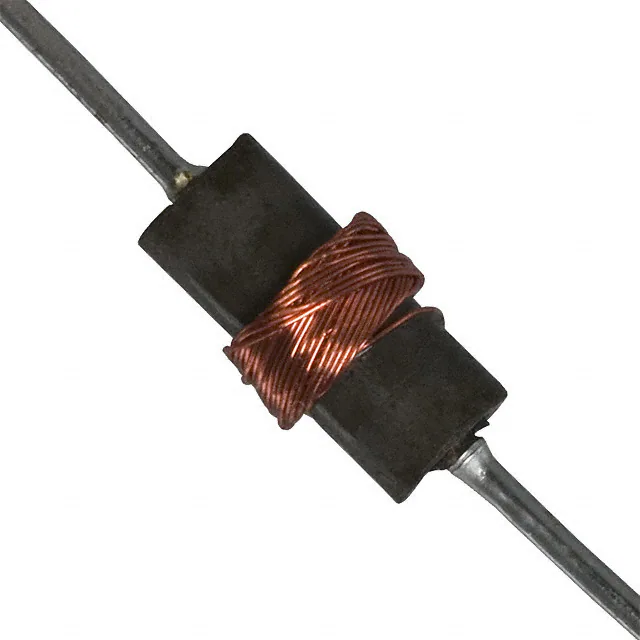

70F225AI-RCFIXED IND 22UH 229MA 2.28 OHM TH |
4,690 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 22 µH | ±5% | 229 mA | - | Unshielded | 2.28Ohm Max | 51 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|

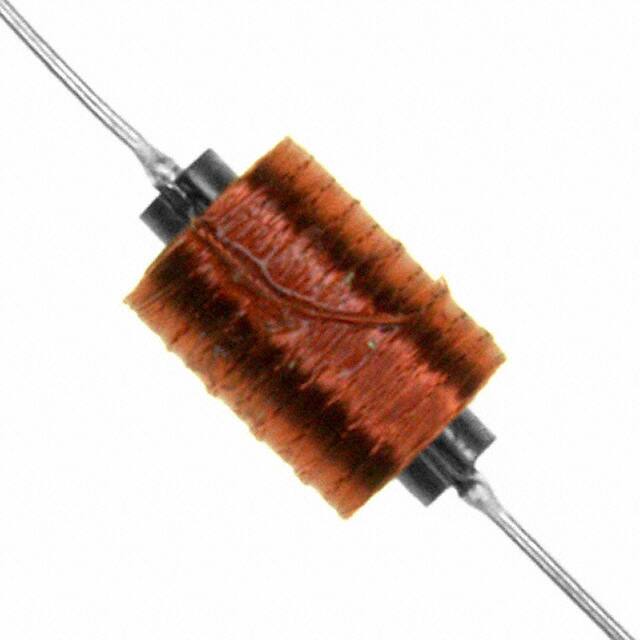

70F222AI-RCFIXED IND 22MH 41MA 144 OHM TH |
3,823 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 22 mH | ±5% | 41 mA | - | Unshielded | 144Ohm Max | 50 @ 79kHz | 270kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.330" Dia x 0.500" L (8.38mm x 12.70mm) | - |
|

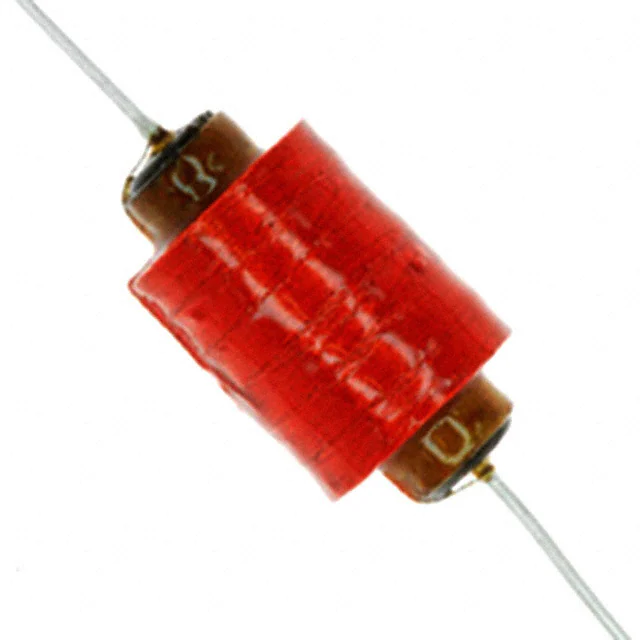

70F221AF-RCFIXED IND 220MH 39MA 424 OHM TH |
4,047 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 220 mH | ±5% | 39 mA | - | Unshielded | 424Ohm Max | 51 @ 25kHz | 70kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.540" Dia x 0.880" L (13.72mm x 22.35mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
