Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2200LL-1R8-V-RCFIXED IND 1.8UH 22.6A 2 MOHM TH |
3,548 | - |
|
Datasheet | 2200LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 1.8 µH | ±20% | 22.6 A | - | Unshielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|
|
2200LL-3R9-V-RCFIXED IND 3.9UH 18.5A 4 MOHM TH |
1,127 | - |
|
Datasheet | 2200LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 3.9 µH | ±20% | 18.5 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|
|
2200LL-4R7-V-RCFIXED IND 4.7UH 17.1A 4 MOHM TH |
1,994 | - |
|
Datasheet | 2200LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 4.7 µH | ±20% | 17.1 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|
|
2200LL-270-V-RCFIXED IND 27UH 11.8A 9 MOHM TH |
1,590 | - |
|
Datasheet | 2200LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 27 µH | ±15% | 11.8 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|

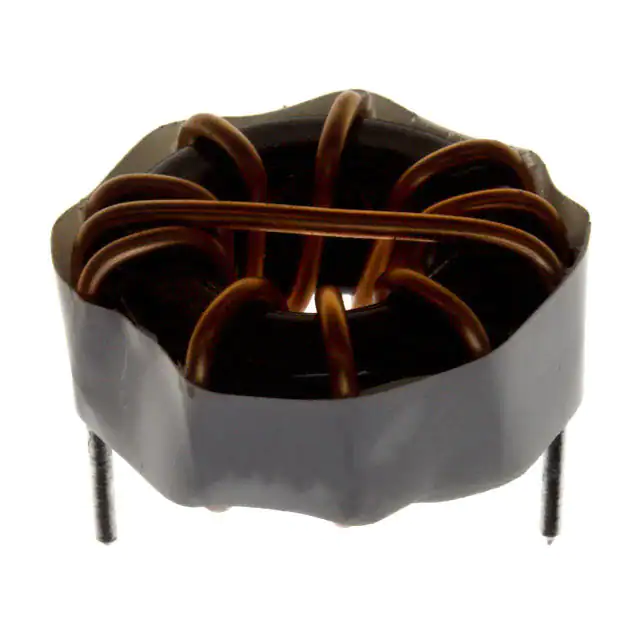

2300LL-331-H-RCFIXED IND 330UH 4.6A 79 MOHM TH |
4,969 | - |
|
Datasheet | 2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 330 µH | ±15% | 4.6 A | - | Shielded | 79mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|

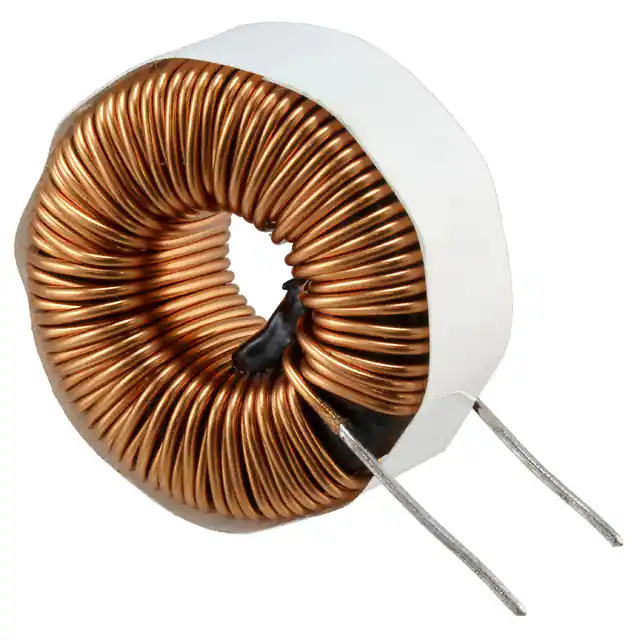

2300LL-2R7-V-RCFIXED IND 2.7UH 29.4A 2 MOHM TH |
3,074 | - |
|
Datasheet | 2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 2.7 µH | ±20% | 29.4 A | - | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300LL-331-V-RCFIXED IND 330UH 4.6A 79 MOHM TH |
3,465 | - |
|
Datasheet | 2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 330 µH | ±15% | 4.6 A | - | Shielded | 79mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300LL-391-V-RCFIXED IND 390UH 4.4A 85 MOHM TH |
3,102 | - |
|
Datasheet | 2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 390 µH | ±15% | 4.4 A | - | Shielded | 85mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300LL-681-V-RCFIXED IND 680UH 3.8A 113 MOHM TH |
4,114 | - |
|
Datasheet | 2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 680 µH | ±15% | 3.8 A | - | Shielded | 113mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
79F5R6K-RCFIXED IND 5.6UH 180MA 1.9 OHM TH |
2,474 | - |
|
Datasheet | 79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 180 mA | - | Unshielded | 1.9Ohm Max | 40 @ 7.9MHz | 28MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
