Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTSMDS4F-R10MSMD SHIELDED RF INDUCTOR |
3,010 | - |
|
Datasheet | CTSMDS4F | 2-SMD, J-Lead | Bulk | Obsolete | - | - | 100 nH | ±20% | - | 3A | Shielded | 26mOhm Max | 50 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | SMD | 0.504" L x 0.238" W (12.80mm x 6.05mm) | 0.228" (5.80mm) |
|
CTFCF-470K47UH POWER INDUCTOR |
4,240 | - |
|
Datasheet | CTFCF | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 47 µH | ±10% | 1 A | - | Unshielded | 500mOhm Max | 45 @ 2.5MHz | - | - | -20°C ~ 100°C | 2.5 MHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.031" (26.20mm) |
|
CTH6EF-103JMINIATURE AXL POWER LINE CHOKE |
3,173 | - |
|
Datasheet | CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 10 mH | ±5% | 52 mA | 30mA | Unshielded | 75Ohm Max | - | 270kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
CTRFB1010F-151K150UH RADIAL FIXED INDUCTOR |
2,144 | - |
|
Datasheet | CTRFB1010F | Radial, Vertical Cylinder | Bulk | Active | - | - | 150 µH | ±10% | 1.9 A | 1.6A | Unshielded | 245mOhm Max | - | 5MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
CTMLP080504BF-1R0M1.0UH SMD MULTIL POWER INDUCTOR |
4,201 | - |
|
Datasheet | CTMLP080504BF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.2 A | 650mA | Shielded | 120mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CTSMDS4F-104KSMD SHIELDED RF INDUCTOR |
1,573 | - |
|
Datasheet | CTSMDS4F | 2-SMD, J-Lead | Bulk | Obsolete | - | - | 100 mH | ±10% | - | 22mA | Shielded | 484Ohm Max | 50 @ 79kHz | 320kHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | SMD | 0.504" L x 0.238" W (12.80mm x 6.05mm) | 0.228" (5.80mm) |
|
CTLVC6020F-150M15UH SMD POWER INDUCTOR |
2,265 | - |
|
Datasheet | CTLVC6020F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.3 A | 1.3A | Shielded | 190mOhm | - | - | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
|
CTFCF-102K1000UH POWER INDUCTOR |
1,607 | - |
|
Datasheet | CTFCF | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 1 mH | ±10% | 210 mA | - | Unshielded | 8.6Ohm Max | 70 @ 250kHz | - | - | -20°C ~ 100°C | 250 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.031" (26.20mm) |
|
CTH9F-400M40UH AXIAL PWR LINE INDUCTOR |
4,241 | - |
|
Datasheet | CTH9F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 40 µH | ±20% | - | 3A | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.310" Dia x 1.250" L (7.87mm x 31.75mm) | - |
|
CT187LYF-331JRAD LEADED FIXED SHLDED INDUCTOR |
3,385 | - |
|
Datasheet | ct187lyf | - | Bulk | Active | - | - | 330 µH | ±5% | - | - | - | 4Ohm | - | 2.3MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
CTCDRH73F-120MSMD SHIELDED POWER INDUCTOR |
3,203 | - |
|
Datasheet | CTCDRH73F | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 1.5 A | - | Shielded | 100mOhm Max | - | - | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
CT636CYF-100MSMD SHIELDED POWER INDUCTOR |
4,859 | - |
|
Datasheet | ct636cyf | - | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | - | - | - | 80mOhm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|

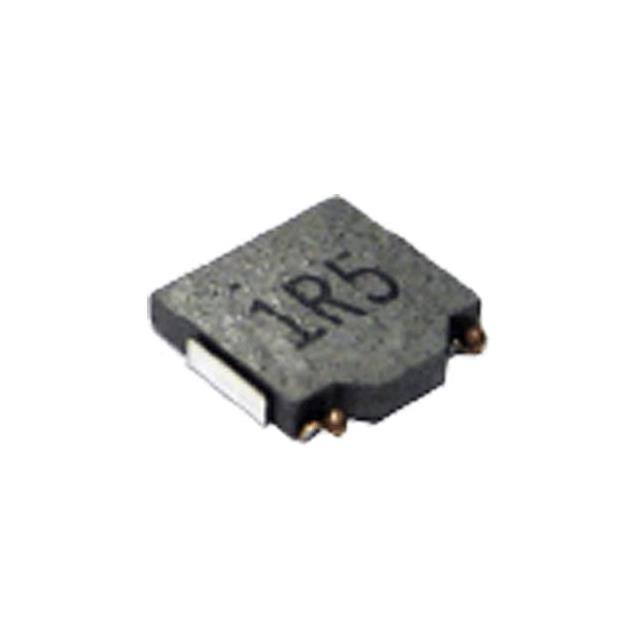

CTSPMA5015F-R47MPOWR INDUCTOR SMD SHIELDED .47UH |
1,688 | - |
|
Datasheet | CTSPMA5015F | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 8.5 A | 12.5A | Shielded | 11.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.059" (1.50mm) |
|
CTAC0603F-47NKSMD AIR CORE INDUCTOR |
4,864 | - |
|
Datasheet | CTAC0603F | Nonstandard | Bulk | Active | Wirewound | Air | 47 nH | ±10% | 320 mA | - | Unshielded | 34.5mOhm Max | 70 @ 300MHz | 1.5GHz | - | -25°C ~ 85°C | 300 MHz | - | Surface Mount | - | 0.079" L x 0.071" W (2.00mm x 1.80mm) | 0.079" (2.00mm) |
|
CTRL6050F-122M1200UH SMD UNSHLD POWER INDUCTOR |
2,257 | - |
|
Datasheet | CTRL6050F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 mH | ±20% | 350 mA | 540mA | Unshielded | 3.5Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.551" L x 0.461" W (14.00mm x 11.70mm) | 0.331" (8.40mm) |
|
|
CTH6VF-2R2K2.2UH MINI AXL P-LINE INDUCTOR |
3,693 | - |
|
Datasheet | CTH6F | Axial | Bulk | Active | Wirewound | - | 2.2 µH | ±10% | 2.6 A | 2A | Unshielded | 30mOhm Max | - | 130MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.138" Dia x 0.394" L (3.50mm x 10.00mm) | - |
|
CTH8HCF-154K150000UH AXIAL PWR LINE INDUCTOR |
2,695 | - |
|
Datasheet | CTH8HCF | Axial | Tape & Reel (TR) | Active | - | - | 150 mH | ±10% | 70 mA | 60mA | Unshielded | 84.3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.000" L (13.97mm x 25.40mm) | - |
|
CTMC1812SF-120JSMD FERRITE CORE WW INDUCTOR |
1,395 | - |
|
Datasheet | CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±5% | 225 mA | - | Unshielded | 2Ohm Max | 50 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
CTDR6F-333KRADIAL LEADED DRUM CORE INDUCTOR |
1,890 | - |
|
Datasheet | CTDR6F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 33 mH | ±10% | 1.7 A | 1.5A | Unshielded | 4.16Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
CTMC1812SF-101JSMD FERRITE CORE WW INDUCTOR |
4,265 | - |
|
Datasheet | CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 110 mA | - | Unshielded | 8Ohm Max | 40 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
