Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTML0805F-120K12UH FER MULTIL SHLD INDUCTOR |
2,654 | - |
|
Datasheet | CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 12 µH | ±10% | 15 mA | - | Shielded | 1.2Ohm Max | 50 @ 2MHz | 22MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
CTSCH875DF-100MRADIAL FIXED INDUCTOR |
3,479 | - |
|
Datasheet | CTSCH875DF | Radial, Vertical Cylinder | Bulk | Active | - | - | 10 µH | ±20% | - | 2.4A | Shielded | 50mOhm Max | - | - | - | - | 2.52 MHz | - | Through Hole | Radial | 0.307" Dia (7.80mm) | 0.307" (7.80mm) |
|
CTPCI6045F-101MSMD SHLDED POWER INDUCTOR |
4,432 | - |
|
Datasheet | CTPCI6045F | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 860 mA | 550mA | Shielded | 384mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.193" (4.90mm) |
|
CTCH855F-560K56UH RADIAL LEAD FIX INDUCTOR |
2,722 | - |
|
Datasheet | CTCH855F | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 56 µH | ±10% | - | 1.1A | Unshielded | 310mOhm Max | - | - | - | - | 2.52 MHz | - | Through Hole | Radial | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
CTIHSM4825F-470L47.0UH SMD MOLDED INDUCTOR |
3,314 | - |
|
Datasheet | CTIHSM4825F | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±15% | 1.07 A | 740mA | Unshielded | 362mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | SMD | 0.520" L x 0.250" W (13.20mm x 6.35mm) | 0.230" (5.84mm) |
|
CTM2F-470J47UH AXIAL MOLDED INDUCTOR |
3,405 | - |
|
Datasheet | CTM2F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 47 µH | ±5% | 193 mA | - | Unshielded | 2.8Ohm Max | 55 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|
CTS4F-1R0K1UH XIALSHIELDED INDUCTOR |
2,083 | - |
|
Datasheet | CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±10% | 2.08 A | 2.08A | Shielded | 50mOhm Max | 42 @ 25MHz | 156MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
CTCVCF-100JAXIAL LEAD CLEAR POWER INDUCTOR |
3,201 | - |
|
Datasheet | CTCVCF | Axial | Tape & Reel (TR) | Active | - | - | 10 µH | ±5% | 2.9 A | 4.6A | Unshielded | 90mOhm Max | 55 @ 2.52MHz | 38MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|
CTCDRH127/LDF-330M33UH SMD SHIELDED POWR INDUCTOR |
4,756 | - |
|
Datasheet | CTCDRH127/LDF | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 3.67 A | 3.9A | Shielded | 53.3mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
CTXAL5030F-R33MHIGH CURRENT SMD POWER INDUCTOR |
1,180 | - |
|
Datasheet | CTXAL5030F | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±20% | 19.2 A | 26A | Shielded | 3.52mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
CTXAL5030F-4R7MHIGH CURRENT SMD POWER INDUCTOR |
2,629 | - |
|
Datasheet | CTXAL5030F | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 5.9 A | 7A | Shielded | 36.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
CTPA5031F-R44M0.44UH SMD SHLDED POWER INDUCTOR |
4,607 | - |
|
Datasheet | CTPA5031F | Nonstandard | Tape & Reel (TR) | Active | - | - | 440 nH | ±20% | 45 A | 35A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 100°C | 2 MHz | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
CTDR1F-820K82UH RADIAL DRUM CORE INDUCTOR |
2,147 | - |
|
Datasheet | CTDR1F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 82 µH | ±10% | - | 2.8A | Unshielded | 83mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.669" Dia (17.00mm) | 0.866" (22.00mm) |
|
CTSFW1365F-7R3MSMD SHIELDED POWER INDUCTOR |
3,914 | - |
|
Datasheet | CTSFW1365F | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.3 µH | ±20% | 13 A | 12A | Shielded | 6.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
|

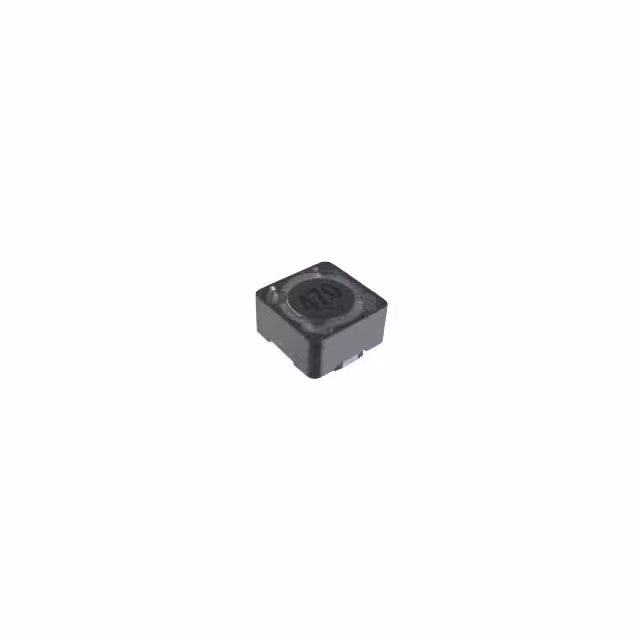

CTCDRH74CF-100M10UH SMD SHIELDED POWER INDUCTOR |
4,132 | - |
|
Datasheet | CTCDRH74CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | - | 1.84A | Shielded | 49mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.177" (4.50mm) |
|
CTGS137F-150M15UH SMD UNSHLD POWER INDUCTOR |
3,916 | - |
|
Datasheet | CTGS137F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 4.5 A | 7.5A | Unshielded | 34mOhm | 28 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
CTML0603F-R082K82N FER MULTIL SHLD INDUCTOR |
2,187 | - |
|
Datasheet | CTML0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 82 nH | ±10% | 50 mA | - | Shielded | 300mOhm Max | 10 @ 50MHz | 245MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
CTLVC6028F-1R5N1.5UH SMD POWER INDUCTOR |
2,185 | - |
|
Datasheet | CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | 4.32 A | 5.67A | Shielded | 16mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
CTH8HCF-104K100000UH AXIAL PWR LINE INDUCTOR |
3,367 | - |
|
Datasheet | CTH8HCF | Axial | Tape & Reel (TR) | Active | - | - | 100 mH | ±10% | 70 mA | 100mA | Unshielded | 68.5Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.000" L (13.97mm x 25.40mm) | - |
|
|
CTH8HCF-103K10000UH AXIAL PWR LINE INDUCTOR |
1,280 | - |
|
Datasheet | CTH8HCF | Axial | Tape & Reel (TR) | Active | - | - | 10 mH | ±10% | 350 mA | 600mA | Unshielded | 6Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.000" L (13.97mm x 25.40mm) | - |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
