Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTC2F-R022JAXL LEADED CONF COATED INDUCTOR |
3,298 | - |
|
Datasheet | ctc2f | - | Tape & Reel (TR) | Active | - | - | 22 nH | ±5% | - | - | - | 10mOhm | - | 500MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
CTPCI7045F-101MSMD SHLDED POWER INDUCTOR |
3,650 | - |
|
Datasheet | CTPCI7045F | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.05 A | 800mA | Shielded | 312mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
CTLV5020SF-3R9M3.9UH SMD POWER INDUCTOR |
3,355 | - |
|
Datasheet | CTLV5020SF | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 3.9 µH | ±20% | 2.34 A | 2.61A | Shielded | 53mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
CTLL2012SF-47NJSMD HIGH FREQCER MULTIL INDUCTOR |
4,828 | - |
|
Datasheet | CTLL2012SF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 47 nH | ±5% | 300 mA | - | Unshielded | 700mOhm Max | 18 @ 100MHz | 900MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
CTLVC6028F-101M100UH SMD POWER INDUCTOR |
1,076 | - |
|
Datasheet | CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 720 mA | 730mA | Shielded | 600mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
CTH8HCF-101K100UH AXIAL PWR LINE INDUCTOR |
1,896 | - |
|
Datasheet | CTH8HCF | Axial | Tape & Reel (TR) | Active | - | - | 100 µH | ±10% | 3.8 A | 5.7A | Unshielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.000" L (13.97mm x 25.40mm) | - |
|
CTDT3316PF-22322UH SMD SHIELDED POWR INDUCTOR |
1,254 | - |
|
Datasheet | CTDT3316PF | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.5 A | - | Shielded | 84mOhm Max | - | 22MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
|
CTDT3316PF-47347UH SMD SHIELDED POWR INDUCTOR |
3,580 | - |
|
Datasheet | CTDT3316PF | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1 A | - | Shielded | 110mOhm Max | - | 16MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|

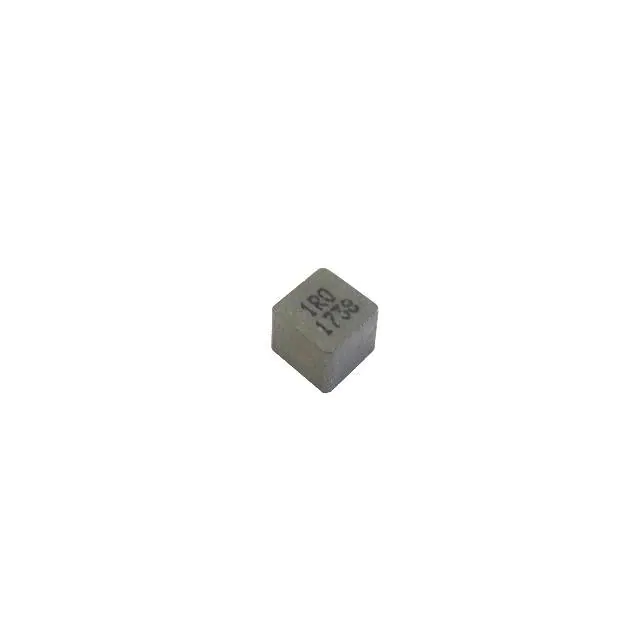

CTXAL5030F-1R0MHIGH CURRENT SMD POWER INDUCTOR |
1,141 | - |
|
Datasheet | CTXAL5030F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 12.2 A | 14.3A | Shielded | 7.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
CT622LYF-471JRADIAL LEADED FIXED INDUCTOR |
1,966 | - |
|
Datasheet | ct622lyf | - | Bulk | Active | - | - | 470 µH | ±5% | - | - | - | 1.1Ohm | - | 1.9MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CTH8HCF-333K33000UH AXIAL PWR LINE INDUCTOR |
1,406 | - |
|
Datasheet | CTH8HCF | Axial | Tape & Reel (TR) | Active | - | - | 33 mH | ±10% | 160 mA | 330mA | Unshielded | 21Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.000" L (13.97mm x 25.40mm) | - |
|
CTH8F-822K8200UH AXIAL PWR LINE INDUCTOR |
4,135 | - |
|
Datasheet | CTH8F | Axial | Bulk | Active | - | - | 8.2 mH | ±10% | 250 mA | 293mA | Unshielded | 6.32Ohm Max | - | 300kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
CM32252R2KSBWOUND CHIP INDUCTOR,3225, 2.20UH |
3,454 | - |
|
Datasheet | CM3225-S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±10% | 320 mA | - | Unshielded | 1Ohm Max | 30 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
CM4532470KSBWOUND CHIP INDUCTOR,4532, 47.00U |
3,869 | - |
|
Datasheet | CM4532-S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 140 mA | - | Unshielded | 5Ohm Max | 50 @ 2.52MHz | 10.5MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
PC0504-470K-RC47UH 10% POWER CHIP INDUCTOR |
3,981 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|
|
PC0504-220K-RC22UH 10% POWER CHIP INDUCTOR |
3,299 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±10% | 1.11 A | - | Unshielded | 180mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|
|
PC0504-331M-RC330UH 20% POWER CHIP INDUCTOR |
3,553 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 280 mA | - | Unshielded | 1.7Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|
SMAC60-R30L-RC300NH 15% SMD AIR COIL INDUCTOR |
2,870 | - |
|
Datasheet | - | Nonstandard | Tray | Active | Wirewound | Air | 300 nH | ±15% | 3.5 A | - | Unshielded | 49mOhm Max | 1 @ 200MHz | - | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.465" L x 0.190" W (11.80mm x 4.83mm) | 0.140" (3.55mm) |
|
ALA0410-102KAXIAL LEAD INDUCTORS |
2,689 | - |
|
Datasheet | - | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ALC0410-101KAXIAL LEAD INDUCTORS |
3,836 | - |
|
Datasheet | - | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
