Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS03-1R5J-RC1.5uH +/-5% Ferrite Core Chip |
1,046 | - |
|
Datasheet | LS03 | 0603 (1608 Metric) | Tray | Active | Wirewound | Ferrite | 1.5 µH | ±5% | - | 540mA | Unshielded | 1.06Ohm Max | 17 @ 7.9MHz | 270MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|

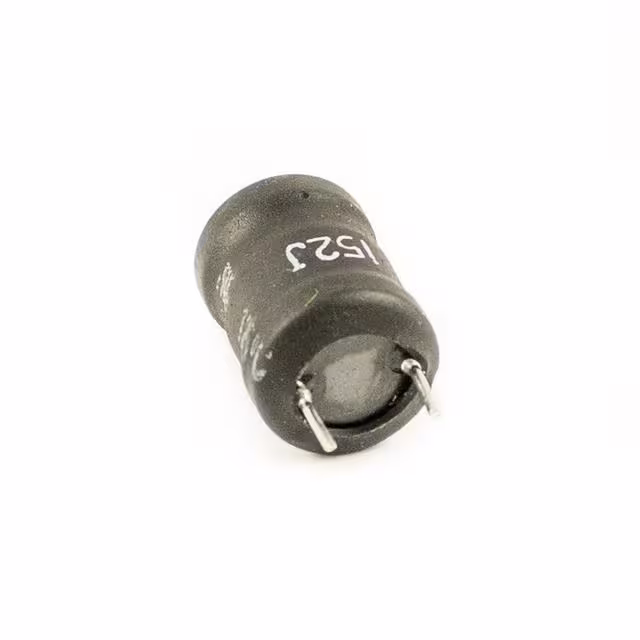

RB1315-152J-RC1500uH +/-5% Radial Inductor |
4,737 | - |
|
Datasheet | RB1315 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 1.5 mH | ±5% | 680 mA | 1A | Unshielded | 1.3Ohm Max | 40 @ 252kHz | 830kHz | - | -25°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
RB0814-102K-RC1000uH +/-10% Radial Inductor |
3,545 | - |
|
Datasheet | RB0814 | Radial, Vertical Cylinder | Tray | Active | - | - | 1 mH | ±10% | - | 300mA | Unshielded | 2.1Ohm Max | 40 @ 252kHz | 1.3MHz | - | -40°C ~ 105°C | 252 kHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
RB40-102K-RC1000uH +/-10% Radial Inductor |
2,514 | - |
|
Datasheet | RB40 | Radial, Vertical Cylinder | Bag | Active | Wirewound | - | 1 mH | ±10% | 150 mA | - | Unshielded | 6Ohm Max | 90 @ 252kHz | 1.3MHz | - | -55°C ~ 125°C | 252 kHz | - | Through Hole | Radial | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RB40-103K-RC10mH +/-10% Radial Inductor |
4,934 | - |
|
Datasheet | RB40 | Radial, Vertical Cylinder | Bag | Active | Wirewound | - | 10 mH | ±10% | 40 mA | - | Unshielded | 40Ohm Max | 100 @ 79.6kHz | 400kHz | - | -55°C ~ 125°C | 79.6 kHz | - | Through Hole | Radial | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
RDC40-153K-RC15uH +/-10% Radial Drum Core |
4,132 | - |
|
Datasheet | RDC40 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core | - | 15 mH | ±10% | 1.3 A | 1.5A | Unshielded | 3.39Ohm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
RDC40-101K-RC100uH +/-10% Radial Drum Core |
4,857 | - |
|
Datasheet | RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 100 µH | ±10% | 14.4 A | 20A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
RDC40-821K-RC820uH +/-10% Radial Drum Core |
2,891 | - |
|
Datasheet | RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 820 µH | ±10% | 2.7 A | 6.8A | Unshielded | 154mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
RDC40-270K-RC27uH +/-10% Radial Drum Core |
2,883 | - |
|
Datasheet | RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 27 µH | ±10% | 21 A | 36A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
RDC50-100K-RC10uH +/-10% Radial Drum Core |
4,741 | - |
|
Datasheet | RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 10 µH | ±10% | 35 A | 67A | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-181K-RC180uH +/-10% Radial Drum Core |
2,057 | - |
|
Datasheet | RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 180 µH | ±10% | 13.5 A | 14A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-150K-RC15uH +/-10% Radial Drum Core |
3,065 | - |
|
Datasheet | RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 15 µH | ±10% | 35 A | 49A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-221K-RC220uH +/-10% Radial Drum Core |
4,152 | - |
|
Datasheet | RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 220 µH | ±10% | 13.5 A | 13A | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-471K-RC470uH +/-10% Radial Drum Core |
2,565 | - |
|
Datasheet | RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 470 µH | ±10% | 11.4 A | 8.8A | Unshielded | 78mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-680K-RC68uH +/-10% Radial Drum Core |
3,372 | - |
|
Datasheet | RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 68 µH | ±10% | 21 A | 23A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
RDC60-333K-RC33000uH +/-10% Radial Drum Core |
4,164 | - |
|
Datasheet | RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 33 mH | ±10% | 1.7 A | 1.5A | Unshielded | 4.16Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-392K-RC3900uH +/-10% Radial Drum Core |
1,706 | - |
|
Datasheet | RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 3.9 mH | ±10% | 4.5 A | 4.2A | Unshielded | 548mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-271K-RC270uH +/-10% Radial Drum Core |
3,038 | - |
|
Datasheet | RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 270 µH | ±10% | 21 A | 16.2A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-123K-RC12000uH +/-10% Radial Drum Core |
1,074 | - |
|
Datasheet | RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 12 mH | ±10% | 2.8 A | 2.4A | Unshielded | 1.54Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-181K-RC180uH +/-10% Radial Drum Core |
3,254 | - |
|
Datasheet | RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 180 µH | ±10% | 21 A | 19.5A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
