Fixed Inductors

Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)

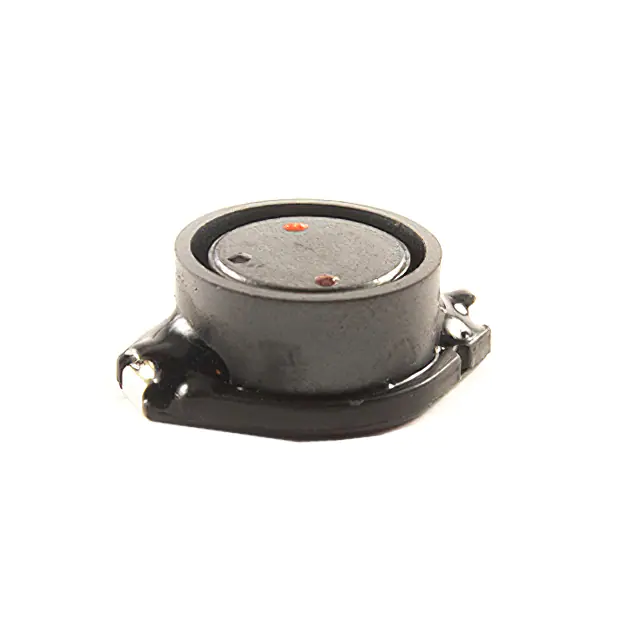

PCIS60-331M-RC 330uH +/-20% Power Chip Inductor Allied Components International	1,863	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	-	-	330 µH	±20%	860 mA	860mA	Shielded	780mOhm Max	-	3MHz	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	-	0.730" L x 0.600" W (18.54mm x 15.24mm)	0.300" (7.62mm)

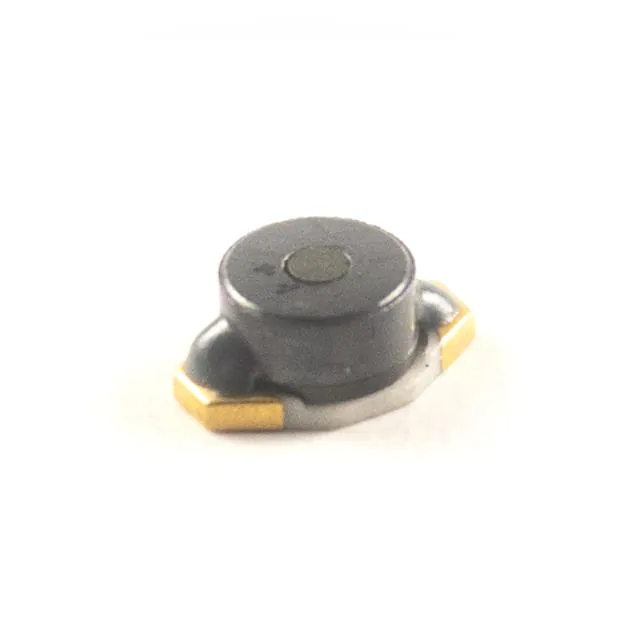

PCIT40-6R8M-RC 6.8uH +/-20% Power Chip Inductor Allied Components International	2,107	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	-	-	6.8 µH	±20%	2.5 A	-	Shielded	50mOhm Max	-	40MHz	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	-	0.510" L x 0.370" W (12.95mm x 9.40mm)	0.200" (5.08mm)

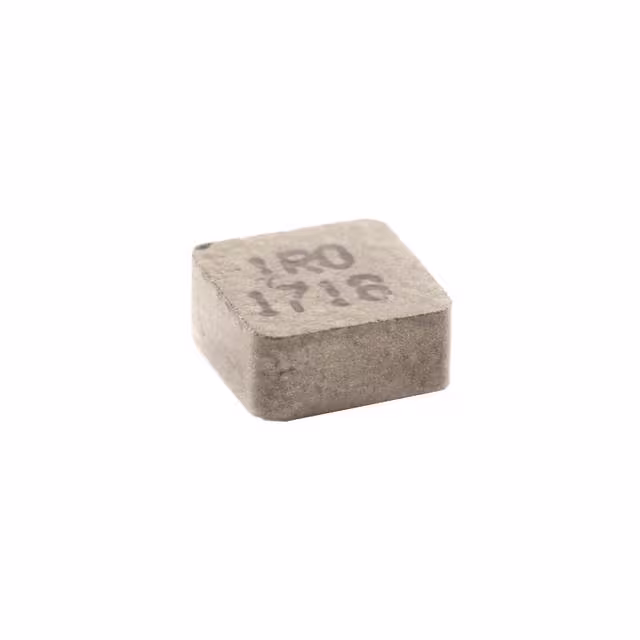

PCXLR402-1R0M 1.0uH +/-20% Hi-Curr. Pwr. Choke Allied Components International	3,944	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	-	-	1 µH	±20%	11 A	8A	Shielded	11.7mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.161" L x 0.161" W (4.10mm x 4.10mm)	0.083" (2.10mm)

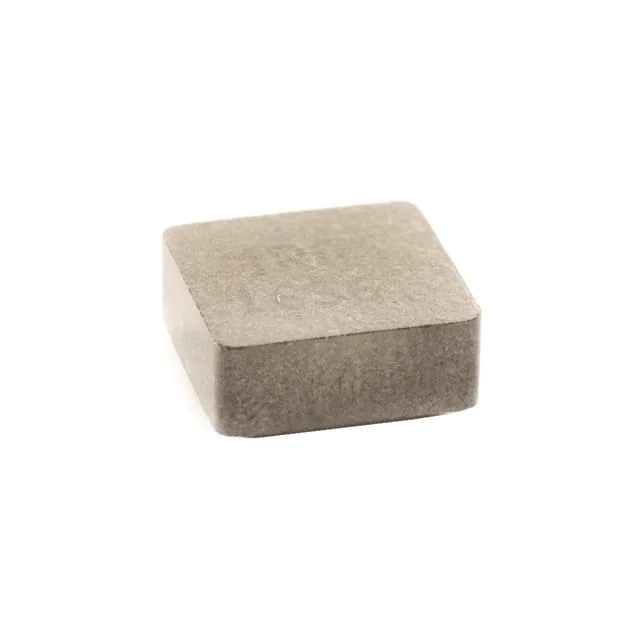

PCXA603-1R0M 1.0uH +/-20% Hi-Curr. Pwr. Choke Allied Components International	4,403	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	-	-	1 µH	±20%	18 A	18A	Shielded	6.05mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.260" L x 0.252" W (6.60mm x 6.40mm)	0.118" (3.00mm)
RB30-150K-RC 15uH +/-10% Radial Bobbin Ind. Allied Components International	1,181	-	RFQ	Datasheet	-	Radial, Vertical Cylinder	Tray	Active	Wirewound	-	15 µH	±10%	-	2.3A	Unshielded	56mOhm Max	40 @ 2.52MHz	12MHz	-	-55°C ~ 125°C	2.52 MHz	-	Through Hole	Radial	0.335" Dia (8.50mm)	0.433" (11.00mm)

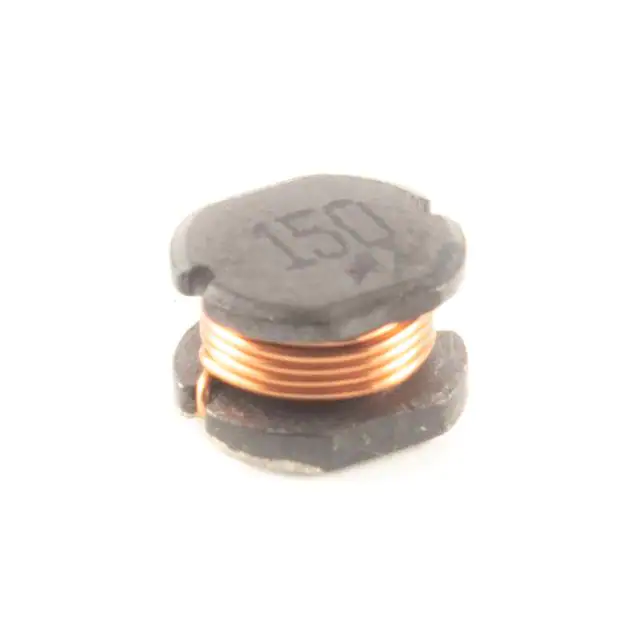

PC0705-101M-RC 100uH +/-20% Power Chip Inductor Allied Components International	3,697	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	100 µH	±20%	720 mA	-	Unshielded	430mOhm Max	-	-	-	-40°C ~ 85°C	1 kHz	-	Surface Mount	-	0.307" L x 0.276" W (7.80mm x 7.00mm)	0.209" (5.30mm)
RB30-104K-RC 100MH 10% RADIAL BOBBIN IND. Allied Components International	1,943	-	RFQ	Datasheet	RB30	Radial, Vertical Cylinder	Tray	Active	Wirewound	-	100 mH	±10%	-	20mA	Unshielded	235Ohm Max	20 @ 25kHz	100kHz	-	-55°C ~ 125°C	25 kHz	-	Through Hole	Radial	0.335" Dia (8.50mm)	0.433" (11.00mm)
PCI50-102M-RC 1000uH +/-20% Power Chip Induct. Allied Components International	1,626	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	1 mH	±20%	100 mA	800mA	Unshielded	2Ohm Max	-	1.5MHz	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.510" L x 0.370" W (12.95mm x 9.40mm)	0.450" (11.43mm)
PCI50-681M-RC 680uH +/-20% Power Chip Inductor Allied Components International	1,301	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	680 µH	±20%	200 mA	1A	Unshielded	1.2Ohm Max	-	2MHz	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.510" L x 0.370" W (12.95mm x 9.40mm)	0.450" (11.43mm)
CC02-10NG-RC 10nH +/-2% Ceramic Core Chip Allied Components International	4,628	-	RFQ	Datasheet	CC02	0402 (1005 Metric)	Tape & Reel (TR)	Active	Wirewound	Ceramic	10 nH	±2%	-	480mA	Unshielded	195mOhm Max	21 @ 250MHz	3.9GHz	-	-40°C ~ 125°C	250 MHz	-	Surface Mount	0402	0.050" L x 0.030" W (1.27mm x 0.76mm)	0.024" (0.61mm)
CC02-12NG-RC 12nH +/-2% Ceramic Core Chip Allied Components International	2,235	-	RFQ	Datasheet	CC02	0402 (1005 Metric)	Tape & Reel (TR)	Active	Wirewound	Ceramic	12 nH	±2%	-	640mA	Unshielded	120mOhm Max	24 @ 250MHz	3.6GHz	-	-40°C ~ 125°C	250 MHz	-	Surface Mount	0402	0.050" L x 0.030" W (1.27mm x 0.76mm)	0.024" (0.61mm)
CC02-33NG-RC 33nH +/- 2% Ceramic Core Chip Allied Components International	4,295	-	RFQ	Datasheet	CC02	0402 (1005 Metric)	Tape & Reel (TR)	Active	Wirewound	Ceramic	33 nH	±2%	-	400mA	Unshielded	350mOhm Max	24 @ 250MHz	2.35GHz	-	-40°C ~ 125°C	250 MHz	-	Surface Mount	0402	0.050" L x 0.030" W (1.27mm x 0.76mm)	0.024" (0.61mm)
CC02-40NG-RC 39nH +/-2% Ceramic Core Chip Allied Components International	1,767	-	RFQ	Datasheet	CC02	0402 (1005 Metric)	Tape & Reel (TR)	Active	Wirewound	Ceramic	40 nH	±2%	-	320mA	Unshielded	50mOhm Max	24 @ 250MHz	2.24GHz	-	-40°C ~ 125°C	250 MHz	-	Surface Mount	0402	0.050" L x 0.030" W (1.27mm x 0.76mm)	0.024" (0.61mm)
HFC05-1N0S-RC 1.0nH +/-0.3nH 0603 Hi-Freq Chip Allied Components International	2,952	-	RFQ	Datasheet	HFC05	0603 (1608 Metric)	Tape & Reel (TR)	Active	Multilayer	Ceramic	1 nH	±0.3nH	600 mA	-	Unshielded	100mOhm Max	8 @ 100MHz	10GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	0.037" (0.95mm)
HFC05-100NK-RC 100nH +/-10% 0603 Hi-Freq. Chip Allied Components International	4,459	-	RFQ	Datasheet	HFC05	0603 (1608 Metric)	Tape & Reel (TR)	Active	Multilayer	Ceramic	100 nH	±10%	300 mA	-	Unshielded	1.2Ohm Max	12 @ 100MHz	770MHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	0.037" (0.95mm)
HFC05-15NJ-RC 15nH +/-5% 0603 Hi-Freq. Chip Allied Components International	4,439	-	RFQ	Datasheet	HFC05	0603 (1608 Metric)	Tape & Reel (TR)	Active	Multilayer	Ceramic	15 nH	±5%	600 mA	-	Unshielded	320mOhm Max	12 @ 100MHz	2.5GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	0.037" (0.95mm)
HFC05-22NJ-RC 22nH +/-5% 0603 High Freq Chip Allied Components International	3,821	-	RFQ	Datasheet	HFC05	0603 (1608 Metric)	Tape & Reel (TR)	Active	Multilayer	Ceramic	22 nH	±5%	500 mA	-	Unshielded	400mOhm Max	12 @ 100MHz	2GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	0.037" (0.95mm)
HFC05-82NJ-RC 82nH +/-5% 0603 High Freq Chip Allied Components International	4,787	-	RFQ	Datasheet	HFC05	0603 (1608 Metric)	Tape & Reel (TR)	Active	Multilayer	Ceramic	82 nH	±5%	300 mA	-	Unshielded	1Ohm Max	12 @ 100MHz	900MHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	0.037" (0.95mm)
HFQ02-1N0B-RC 1.0nH +/-0.1nH 0201 High Q Chip Allied Components International	3,472	-	RFQ	Datasheet	HFQ02	0201 (0603 Metric)	Tape & Reel (TR)	Active	Multilayer	Ceramic	1 nH	±0.1nH	-	850mA	Unshielded	70mOhm Max	14 @ 500MHz	10GHz	-	-55°C ~ 125°C	500 MHz	-	Surface Mount	0201	0.024" L x 0.012" W (0.60mm x 0.30mm)	0.013" (0.33mm)
LS03-R15J-RC .15uH +/-5% Ferrite Core Chip Allied Components International	1,998	-	RFQ	Datasheet	LS03	0603 (1608 Metric)	Tape & Reel (TR)	Active	Wirewound	Ferrite	150 nH	±5%	-	1.45A	Unshielded	150mOhm Max	17 @ 7.9MHz	1.35GHz	-	-40°C ~ 125°C	7.9 MHz	-	Surface Mount	0603	0.071" L x 0.049" W (1.80mm x 1.25mm)	0.040" (1.02mm)

WINSUN SOURCING SUPPORT

Need Fixed Inductors Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Fixed Inductors FAQ

Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.

What should I check when selecting Fixed Inductors components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific Fixed Inductors part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for Fixed Inductors components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
