Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HTC220LL-471L-RC470UH 30% HRZMNT TOROIDAL CHOKE |
1,841 | - |
|
Datasheet | - | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 470 µH | ±15% | 3.7 A | - | Unshielded | 92mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
|
VTC220LL-102L-RC1000UH30% VRTMNT TOROIDAL CHOKE |
4,910 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 1 mH | ±15% | 2.4 A | - | Unshielded | 216mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia x 0.550" L (27.94mm x 13.97mm) | - |
|
PCS124-101M-RC100UH 20% POWER CHIP SHIELDED |
2,029 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.2 A | - | Shielded | 308mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
PCSDR74-220M-RC22uH +/-20% Power Chip Inductor |
2,413 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.752 A | 2.13A | Shielded | 111mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
PCSDR74-101M-RC100uH +/-20% Power Chip Inductor |
4,980 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 861 mA | 986mA | Shielded | 459.6mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
PCSDR74-471M-RC470uH +/-20% Power Chip Inductor |
4,662 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 404 mA | 461mA | Shielded | 2.088Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
PCSDR74-680M-RC68uH +/-20% Power Chip Inductor |
3,368 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.035 A | 1.19A | Shielded | 318mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
PCSDR127-271M-RC270uH +/-20% Power Chip Inductor |
1,857 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | 1.214 A | 2.2A | Shielded | 508mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PCSDR127-220M-RC22uH +/-20% Power Chip Inductor |
2,183 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.997 A | 7.57A | Shielded | 46.9mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PCSDR127-270M-RC27uH +/-20% Power Chip Inductor |
4,342 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 3.596 A | 6.83A | Shielded | 58mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PCSDR127-221M-RC220uH +/-20% Power Chip Inductor |
2,160 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 1.289 A | 2.43A | Shielded | 451.2mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
PCFV52-220M-RC22uH +/-20% SMD Power Chip Ind. |
4,776 | - |
|
Datasheet | - | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 900 mA | 1.08A | Shielded | 265mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
PCFV52-100M-RC10uH +/-20% SMD Power Chip Ind. |
4,401 | - |
|
Datasheet | - | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.44 A | 1.62A | Shielded | 125mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|

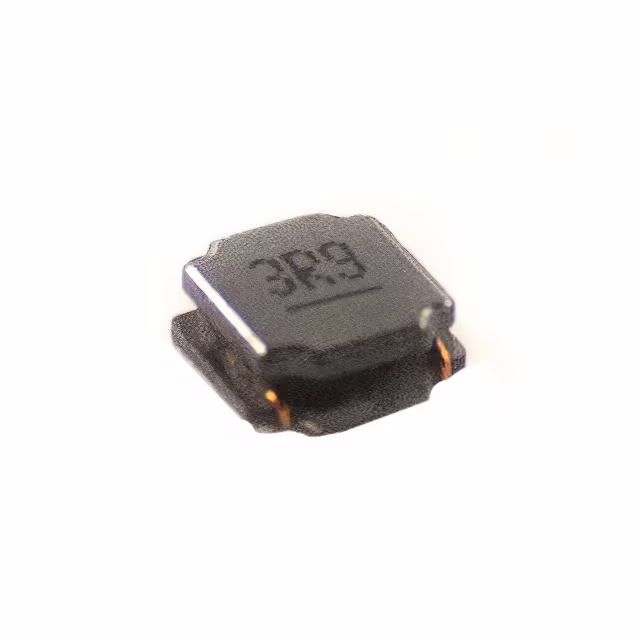

PCFV52-3R9M-AU3.9uH +/-20% SMD Power Chip Ind |
2,678 | - |
|
Datasheet | - | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 3.9 µH | ±20% | - | - | Shielded | - | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
PCFV52-4R7M-RC4.7uH +/-20% SMD Power Chip Ind |
3,188 | - |
|
Datasheet | - | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.98 A | 2.43A | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
PCHP32-6R8M-RC6.8uH +/-20% SMD Shielded Power |
2,905 | - |
|
Datasheet | PCHP32 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1 A | 1A | Shielded | 160mOhm | - | 36MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

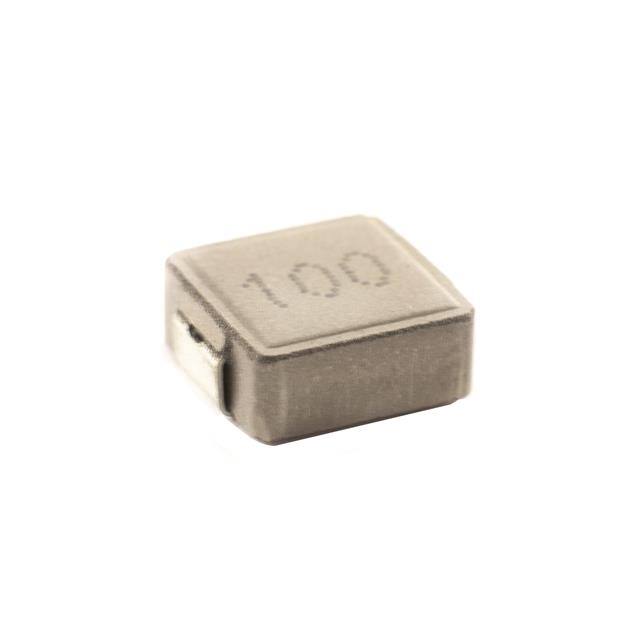

PCHC63A-100M-RC100uH +/-20% Power Inductor |
3,963 | - |
|
Datasheet | PCHC63A | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 4 A | 3.5A | Shielded | 71.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
CHQ02-1N0J-RC1.0nH +/-5% Ceramic Core Chip In |
2,099 | - |
|
Datasheet | - | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1 nH | ±5% | 2.3 A | - | Unshielded | 30mOhm Max | 46 @ 900MHz | 16GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
CHQ02-6N8-RC6.8nH +/-2% Ceramic Core Chip In |
1,607 | - |
|
Datasheet | - | 0402 (1005 Metric) | Bag | Active | Wirewound | Ceramic | 6.8 nH | ±2% | 1.5 A | - | Unshielded | 65mOhm Max | 68 @ 900MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|

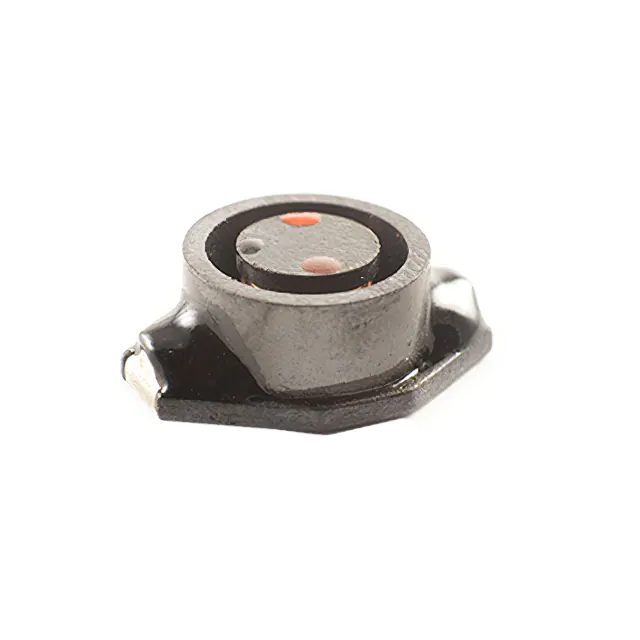

PCIS40-330M-RC22uH +/-20% Power Chip Inductor |
4,736 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 1.1 A | 1.4A | Shielded | 334mOhm Max | 20 @ 100kHz | 12MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
