Fixed Inductors

Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
AE90-333K-RC 33MH 10% AXIAL EPOXY COATED Allied Components International	1,714	-	RFQ	Datasheet	AE90	Axial	Bag	Active	Wirewound	-	33 mH	±10%	67 mA	85mA	Unshielded	130Ohm Max	50 @ 79.6kHz	140kHz	-	-55°C ~ 125°C	10 kHz	-	Through Hole	Axial	0.236" Dia x 0.630" L (6.00mm x 16.00mm)	-
CHQ05-16NG-RC 16NH 2% CERAMIC CORE HI. Q CHIP Allied Components International	4,748	-	RFQ	Datasheet	-	0805 (2012 Metric)	Tape & Reel (TR)	Active	Wirewound	Ceramic	16 nH	±2%	1.5 A	-	Unshielded	60mOhm Max	72 @ 500MHz	2.95GHz	-	-40°C ~ 125°C	250 MHz	-	Surface Mount	0805	0.090" L x 0.070" W (2.29mm x 1.78mm)	0.060" (1.52mm)
CHQ05-51NG-RC 51NH 2% CERAMIC CORE HI. Q CHIP Allied Components International	1,597	-	RFQ	Datasheet	-	0805 (2012 Metric)	Tape & Reel (TR)	Active	Wirewound	Ceramic	51 nH	±2%	1 A	-	Unshielded	120mOhm Max	65 @ 500MHz	1.4GHz	-	-40°C ~ 125°C	250 MHz	-	Surface Mount	0805	0.090" L x 0.070" W (2.29mm x 1.78mm)	0.060" (1.52mm)
CHQ05-2N5J-RC 2.5NH 5% CERAMIC CORE HI Q CHIP Allied Components International	4,742	-	RFQ	Datasheet	-	0805 (2012 Metric)	Tape & Reel (TR)	Active	Wirewound	Ceramic	2.5 nH	±5%	1.6 A	-	Unshielded	20mOhm Max	80 @ 1.5GHz	6GHz	-	-40°C ~ 125°C	250 MHz	-	Surface Mount	0805	0.090" L x 0.070" W (2.29mm x 1.78mm)	0.060" (1.52mm)
CHQ05-48NG-RC 48NH 2% CERAMIC CORE HI. Q CHIP Allied Components International	1,920	-	RFQ	Datasheet	-	0805 (2012 Metric)	Tape & Reel (TR)	Active	Wirewound	Ceramic	48 nH	±2%	1.2 A	-	Unshielded	110mOhm Max	65 @ 500MHz	1.4GHz	-	-40°C ~ 125°C	250 MHz	-	Surface Mount	0805	0.090" L x 0.070" W (2.29mm x 1.78mm)	0.060" (1.52mm)
CHQ05-30NG-RC 30NH 2% CERAMIC CORE HI. Q CHIP Allied Components International	2,376	-	RFQ	Datasheet	-	0805 (2012 Metric)	Tape & Reel (TR)	Active	Wirewound	Ceramic	30 nH	±2%	1.2 A	-	Unshielded	95mOhm Max	65 @ 500MHz	1.95GHz	-	-40°C ~ 125°C	250 MHz	-	Surface Mount	0805	0.090" L x 0.070" W (2.29mm x 1.78mm)	0.060" (1.52mm)

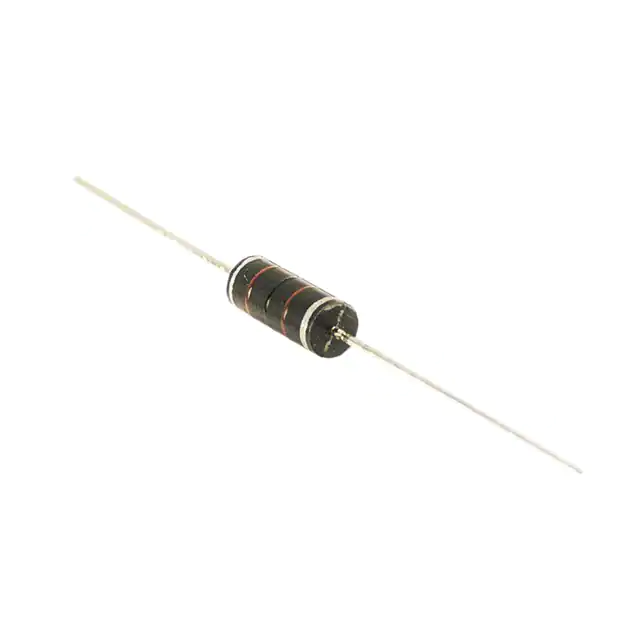

AS40-180K-RC 18UH 10% AXIAL SHIELDED INDUCTOR Allied Components International	1,120	-	RFQ	Datasheet	AS40	Axial	Tape & Reel (TR)	Active	-	-	18 µH	±10%	300 mA	235mA	Shielded	890mOhm Max	45 @ 2.5MHz	45MHz	-	-55°C ~ 125°C	2.5 MHz	-	Through Hole	Axial	0.162" Dia x 0.410" L (4.11mm x 10.41mm)	-
PCS104-221M-RC 220UH 20% SMD POWER INDUCTOR Allied Components International	1,471	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	-	-	220 µH	±20%	920 mA	-	Shielded	756mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.413" L x 0.406" W (10.50mm x 10.30mm)	0.157" (4.00mm)
PCS104-680M-RC 68UH 20% PWR CHIP SHIELDED IND. Allied Components International	2,997	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	-	-	68 µH	±20%	1.5 A	-	Shielded	213mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.413" L x 0.406" W (10.50mm x 10.30mm)	0.157" (4.00mm)
PCHC40-2R2M-RC 2.2UH 20% PWR CHIP HIGH CURRENT Allied Components International	1,574	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	2.2 µH	±20%	7.4 A	7.8A	Unshielded	11mOhm Max	-	90MHz	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	-	0.520" L x 0.390" W (13.21mm x 9.91mm)	0.250" (6.35mm)

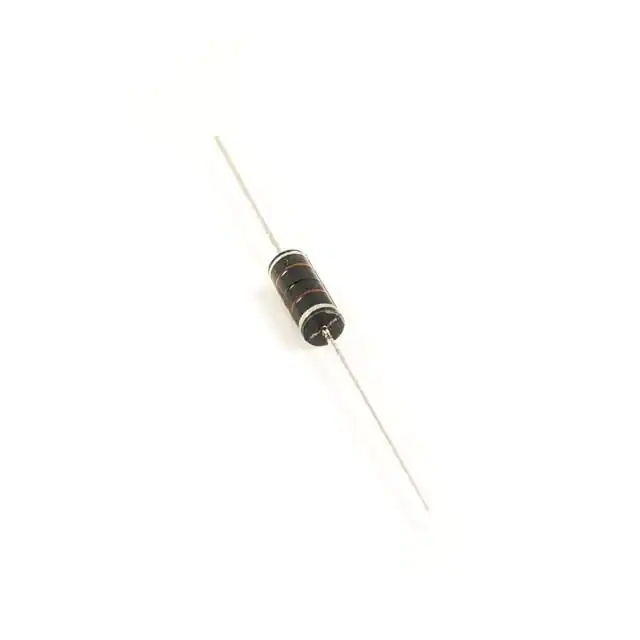

AS40-182K-RC 1800UH 10% AXIAL SHIELDED IND. Allied Components International	1,876	-	RFQ	Datasheet	AS40	Axial	Bag	Active	-	-	1.8 mH	±10%	50 mA	30mA	Shielded	29.9Ohm Max	45 @ 250kHz	1MHz	-	-55°C ~ 125°C	250 kHz	-	Through Hole	Axial	0.162" Dia x 0.410" L (4.11mm x 10.41mm)	-
AS40-223K-RC 22MH 10% AXIAL SHIELDED INDUCT. Allied Components International	3,661	-	RFQ	Datasheet	AS40	Axial	Bag	Active	-	-	22 mH	±20%	17 mA	9mA	Shielded	274Ohm Max	27 @ 79kHz	250kHz	-	-55°C ~ 125°C	79 kHz	-	Through Hole	Axial	0.162" Dia x 0.410" L (4.11mm x 10.41mm)	-
HFC03-3N9S-RC 3.9NH 0.3NH 0402 HI-FREQ CHIP Allied Components International	3,676	-	RFQ	Datasheet	-	0402 (1005 Metric)	Tape & Reel (TR)	Active	-	-	3.9 nH	±0.3nH	400 mA	-	Unshielded	180mOhm Max	8 @ 100kHz	6.1GHz	-	-55°C ~ 125°C	100 kHz	-	Surface Mount	0402	0.039" L x 0.020" W (1.00mm x 0.50mm)	0.024" (0.60mm)
AS40-R22K-RC .22UH 10% AXIAL SHIELDED IND. Allied Components International	2,397	-	RFQ	Datasheet	AS40	Axial	Bag	Active	-	-	220 nH	±10%	1.1 A	1.1A	Shielded	67mOhm Max	49 @ 25MHz	250MHz	-	-55°C ~ 125°C	25 MHz	-	Through Hole	Axial	0.162" Dia x 0.410" L (4.11mm x 10.41mm)	-
AS40-272J-RC 2700UH 5% AXIAL SHIELDED IND. Allied Components International	3,960	-	RFQ	Datasheet	AS40	Axial	Bag	Active	-	-	2.7 mH	±10%	40 mA	25mA	Shielded	47.3Ohm Max	45 @ 250kHz	920kHz	-	-55°C ~ 125°C	250 kHz	-	Through Hole	Axial	0.162" Dia x 0.410" L (4.11mm x 10.41mm)	-

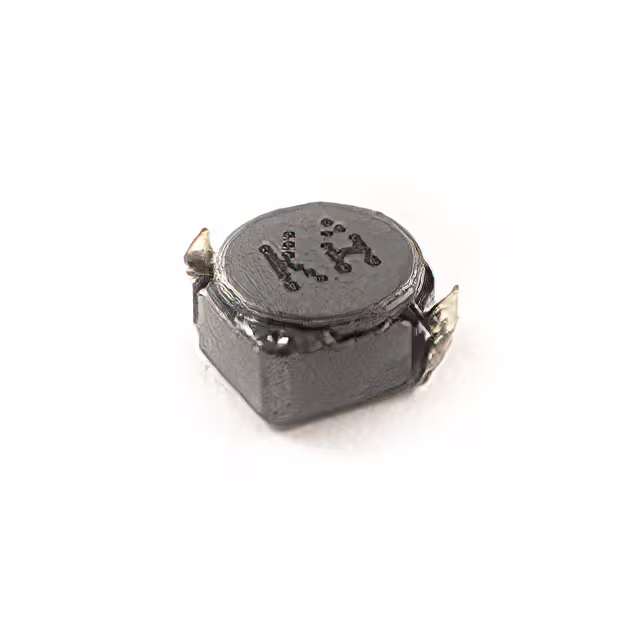

PCS2D14-100T-RC 10UH 30% POWER CHIP INDUCTOR Allied Components International	3,607	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	-	-	10 µH	±30%	760 mA	700mA	Shielded	294mOhm Max	-	-	-	-35°C ~ 100°C	100 kHz	-	Surface Mount	-	0.126" L x 0.126" W (3.20mm x 3.20mm)	0.061" (1.55mm)

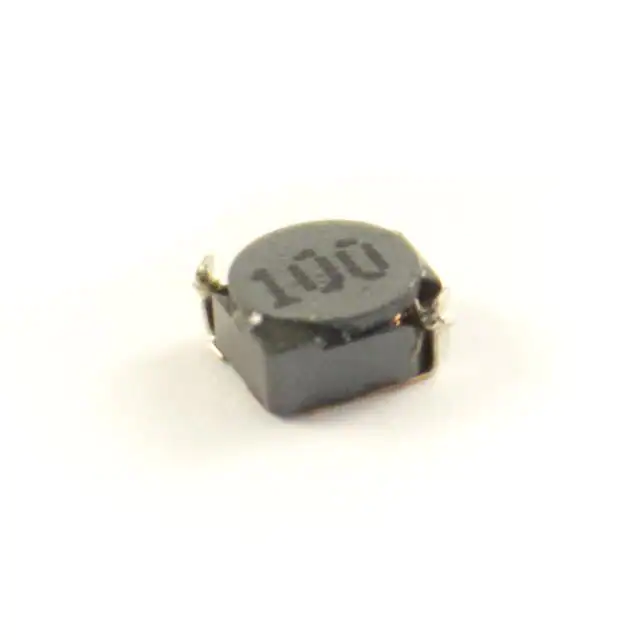

PCS3D16-100T-RC 10UH 30% POWER CHIP INDUCTOR Allied Components International	1,156	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	-	-	10 µH	±30%	550 mA	-	Shielded	210mOhm Max	-	-	-	-30°C ~ 100°C	100 kHz	-	Surface Mount	-	0.157" L x 0.157" W (4.00mm x 4.00mm)	0.071" (1.80mm)
HTC220LL-8R2M-RC 8.2UH 30% HRZMNT TOROIDAL CHOKE Allied Components International	1,959	-	RFQ	Datasheet	-	Radial, Horizontal (Open)	Tray	Active	Toroidal	-	8.2 µH	±20%	15.1 A	-	Unshielded	5mOhm Max	-	-	-	-55°C ~ 125°C	1 kHz	-	Through Hole	Radial	1.100" Dia (27.94mm)	0.550" (13.97mm)

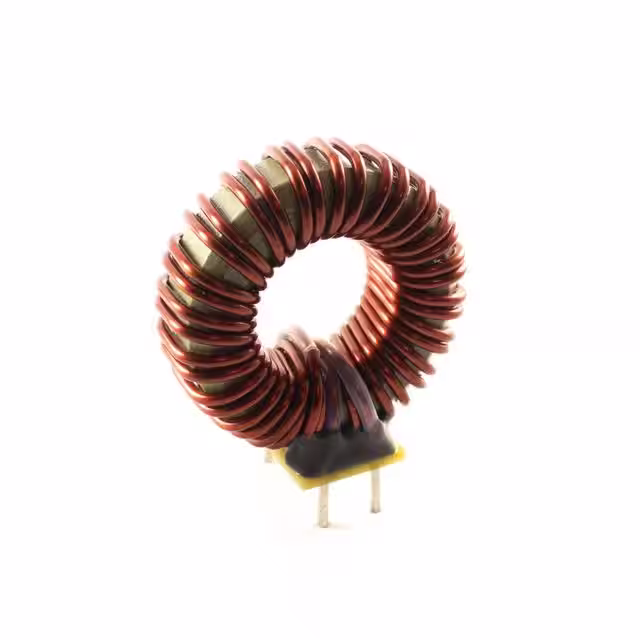

VTCB5825-300-40A 30UH 15% @ 40A VERT.MNT. TOROID Allied Components International	1,328	-	RFQ	Datasheet	-	Radial, Vertical (Open)	Box	Active	Toroidal	-	30 µH	±15%	40 A	-	Unshielded	6mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Through Hole	Radial, Vertical (Open)	2.283" L x 0.984" W (58.00mm x 25.00mm)	2.559" (65.00mm)

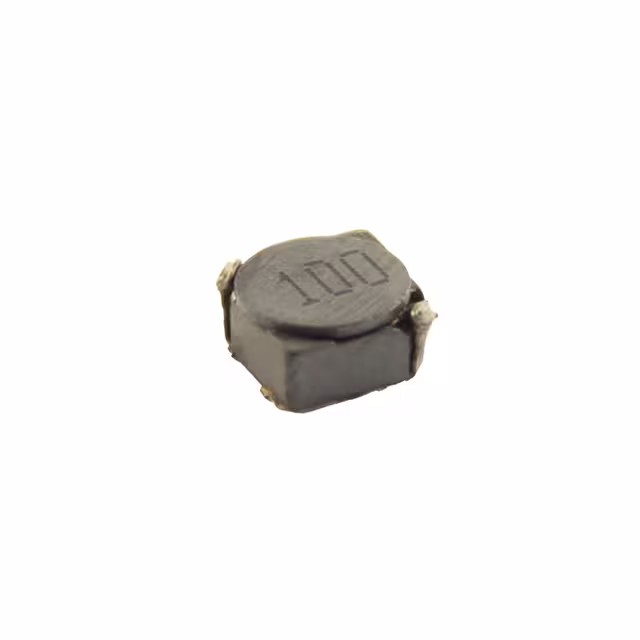

PCS5D28-8R2N-RC 8.2UH 30% POWER CHIP SHIELDED Allied Components International	3,765	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	-	-	8.2 µH	±30%	1.6 A	-	Shielded	53mOhm Max	-	-	-	-30°C ~ 100°C	10 kHz	-	Surface Mount	-	0.224" L x 0.224" W (5.70mm x 5.70mm)	0.118" (3.00mm)
