Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

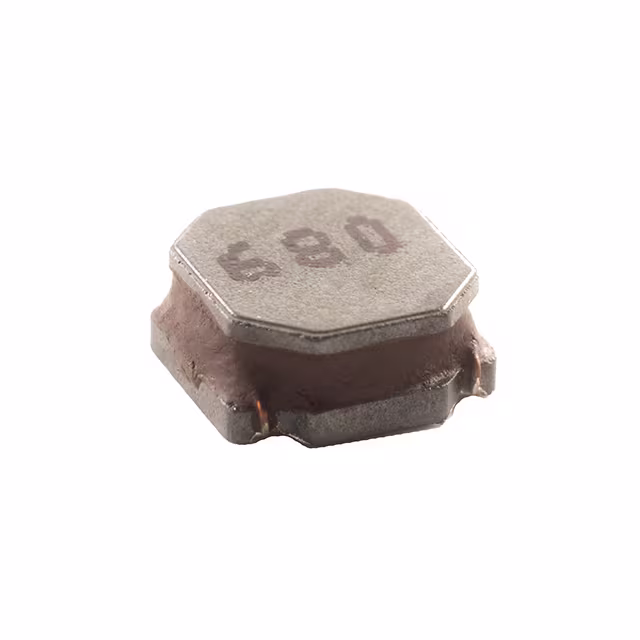

PCSV62-220M-RC22UH 20% SMD PWR CHIP INDUCTOR |
4,736 | - |
|
Datasheet | - | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.5 A | 1.6A | Shielded | 135mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|

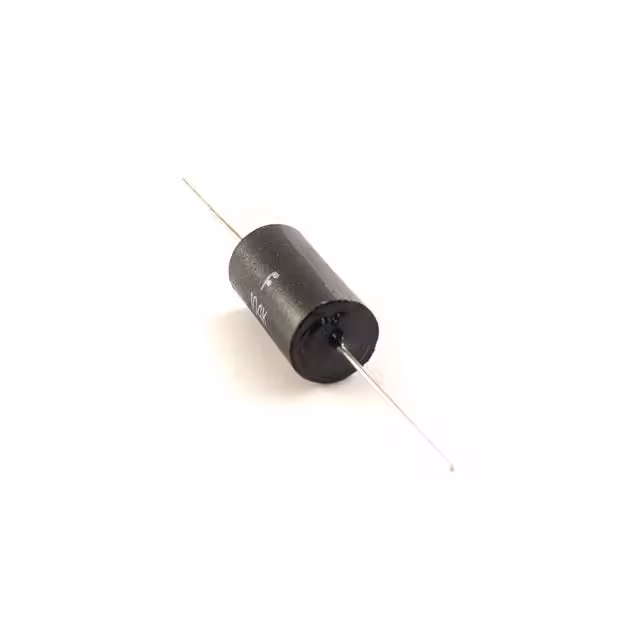

ASPC80-104K-RC100MH 10% PWR SHIELDED INDUCTOR |
3,727 | - |
|
Datasheet | - | Axial | Bag | Active | - | - | 100 mH | ±10% | 176 mA | - | Shielded | 8.5Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.000" L (13.97mm x 25.40mm) | - |
|

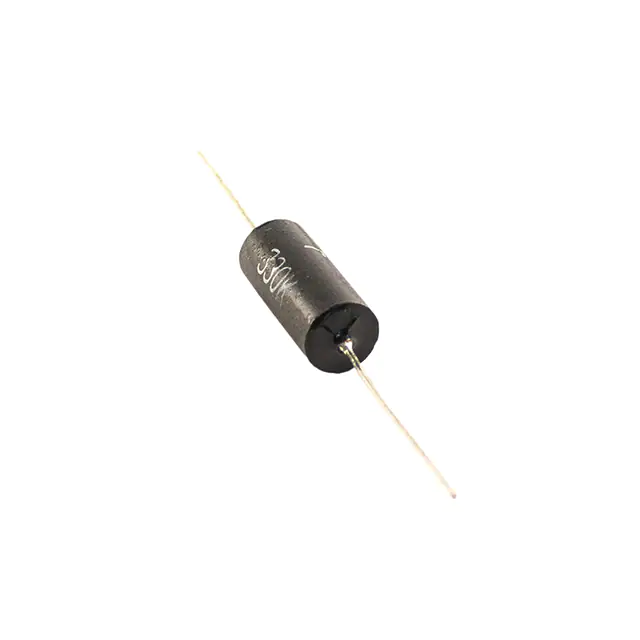

ASPC60-501K-RC500UH 10% PWR SHIELDED INDUCTOR |
3,427 | - |
|
Datasheet | - | Axial | Bag | Active | - | - | 500 µH | ±10% | 880 mA | 44mA | Shielded | 390Ohm Max | 25 @ 790kHz | 6MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial | 0.273" Dia x 0.530" L (6.94mm x 13.46mm) | - |
|
|
ASPC80-474K-RC470MH 10% PWR SHIELDED INDUCTOR |
4,956 | - |
|
Datasheet | - | Axial | Bag | Active | - | - | 470 mH | ±10% | 71 mA | - | Shielded | 39.48Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.000" L (13.97mm x 25.40mm) | - |
|
|
ASPC80-564K-RC560MH 10% PWR SHIELDED INDUCTOR |
1,498 | - |
|
Datasheet | - | Axial | Bag | Active | - | - | 560 mH | ±10% | 71 mA | - | Shielded | 46.68Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.000" L (13.97mm x 25.40mm) | - |
|

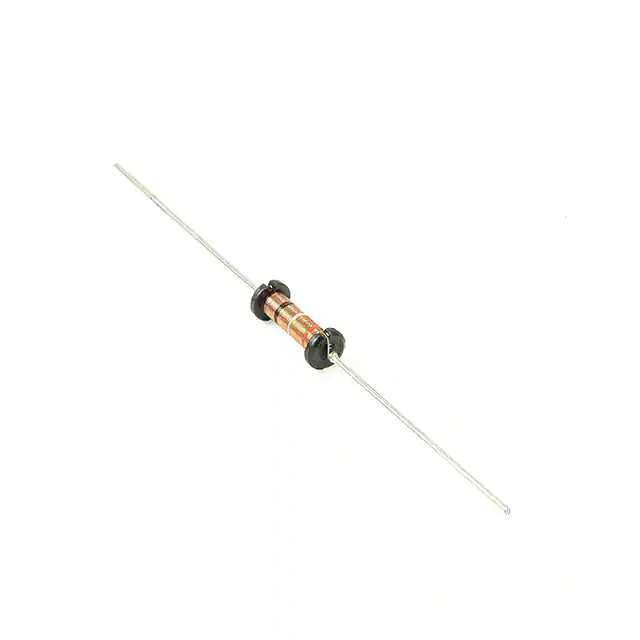

AVC40I-101J100UH 5% AXIAL VARNISHED CHOKE |
3,622 | - |
|
Datasheet | - | Axial | Bag | Active | - | Ferrite | 100 µH | ±5% | 400 mA | - | Unshielded | 3Ohm Max | 107 @ 790kHz | 12MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial | 0.290" Dia x 0.875" L (7.37mm x 22.23mm) | - |
|
MLC05-1R5M-RC1.5UH 20% 0603 MULTILAYER CHIP |
4,619 | - |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 25 mA | - | Shielded | 800mOhm Max | 35 @ 10MHz | 55MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MLC10-R22K-RC.22UH 10% 0704 MULTILAYER CHIP |
3,228 | - |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 220 nH | ±10% | 250 mA | - | Shielded | 500mOhm Max | 25 @ 25MHz | 170MHz | - | -25°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLC10-1R2K-RC1.2UH 10% 0704 MULTILAYER CHIP |
1,284 | - |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.2 µH | ±10% | 50 mA | - | Shielded | 500mOhm Max | 45 @ 10MHz | 65MHz | - | -25°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLC20-5R6K-RC5.6UH 10% 1203 MULTILAYER CHIP |
3,738 | - |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 5.6 µH | ±10% | 25 mA | - | Shielded | 700mOhm Max | 45 @ 4MHz | 32MHz | - | -40°C ~ 125°C | 4 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
|
MLC20-R39K-RC.39UH 10% 1203 MULTILAYER CHIP |
1,836 | - |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 390 nH | ±10% | 200 mA | - | Shielded | 500mOhm Max | 25 @ 25MHz | 135MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
|
MLC20-R068M-RC.068UH 20% 1203 MULTILAYER CHIP |
4,968 | - |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 68 nH | ±20% | 300 mA | - | Shielded | 250mOhm Max | 20 @ 50MHz | 280MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
|
MLC20-2R7K-RC2.7UH 10% 1203 MULTILAYER CHIP |
2,332 | - |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.7 µH | ±10% | 60 mA | - | Shielded | 600mOhm Max | 45 @ 10MHz | 45MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|

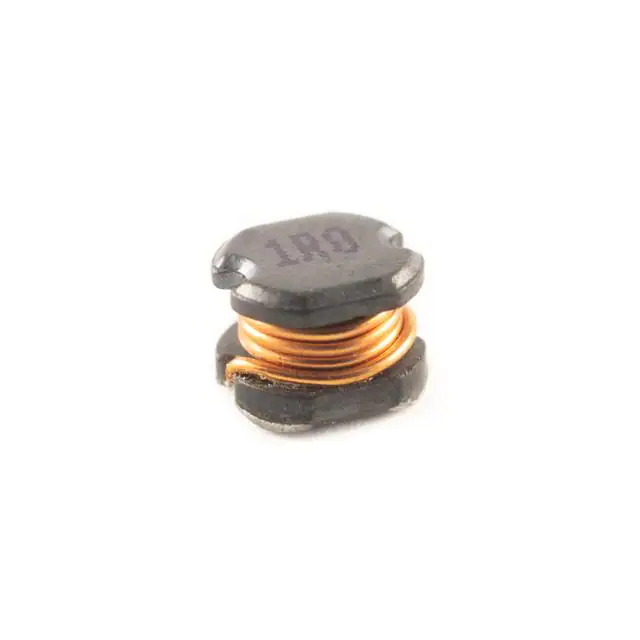

PC0403-102K-RC1000UH 10% POWER CHIP INDUCTOR |
3,755 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±10% | 140 mA | - | Unshielded | 15.6Ohm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
MLC05-R33M-RC.33UH 20% 0603 MULTILAYER CHIP |
2,782 | - |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 330 nH | ±20% | 35 mA | - | Shielded | 850mOhm Max | 25 @ 25MHz | 125MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MLC10-R33K-RC.33UH 10% 0704 MULTILAYER CHIP |
1,645 | - |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 330 nH | ±10% | 250 mA | - | Shielded | 550mOhm Max | 25 @ 25MHz | 145MHz | - | -25°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

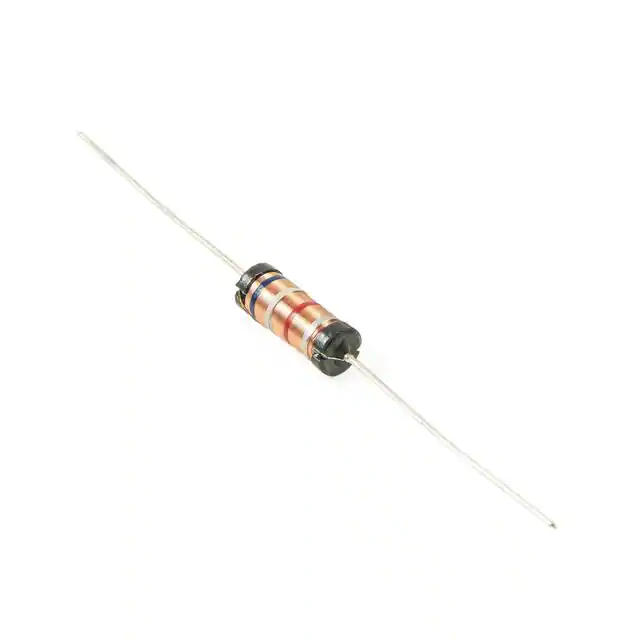

AE90-470K-RC47UH 10% AXIAL EPOXY COATED |
2,879 | - |
|
Datasheet | AE90 | Axial | Bag | Active | Wirewound | - | 47 µH | ±10% | 1.8 A | 2.1A | Unshielded | 180mOhm Max | 30 @ 2.52MHz | 4.8MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|
|
AE90-682K-RC6800UH 10% AXIAL EPOXY COATED |
4,460 | - |
|
Datasheet | AE90 | Axial | Bag | Active | Wirewound | - | 6.8 mH | ±10% | 150 mA | 180mA | Unshielded | 26Ohm Max | 25 @ 252kHz | 290kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|
|
AE90-220K-RC22UH 10% AXIAL EPOXY COATED |
4,664 | - |
|
Datasheet | AE90 | Axial | Bag | Active | Wirewound | - | 22 µH | ±10% | 2.03 A | 3.1A | Unshielded | 150mOhm Max | 50 @ 2.52MHz | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|
|
AE90-103K-RC10MH 10% AXIAL EPOXY COATED |
4,941 | - |
|
Datasheet | AE90 | Axial | Bag | Active | Wirewound | - | 10 mH | ±10% | 120 mA | 150mA | Unshielded | 40Ohm Max | 60 @ 79.6kHz | 200kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
