IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT150TDU60PGIGBT MODULE 600V 225A 480W SP6P |
9,156 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Triple, Dual - Common Source | 600 V | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
APTGT75TA120PGIGBT MODULE 1200V 100A 350W SP6P |
2,704 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Three Phase | 1200 V | 100 A | 350 W | 2.1V @ 15V, 75A | 250 µA | 5.34 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6-P |
|
APTGT75TDU120PGIGBT MODULE 1200V 100A 350W SP6P |
8,051 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Triple, Dual - Common Source | 1200 V | 100 A | 350 W | 2.1V @ 15V, 75A | 250 µA | 5.34 nF @ 25 V | Standard | No | - | Chassis Mount | SP6-P |
|

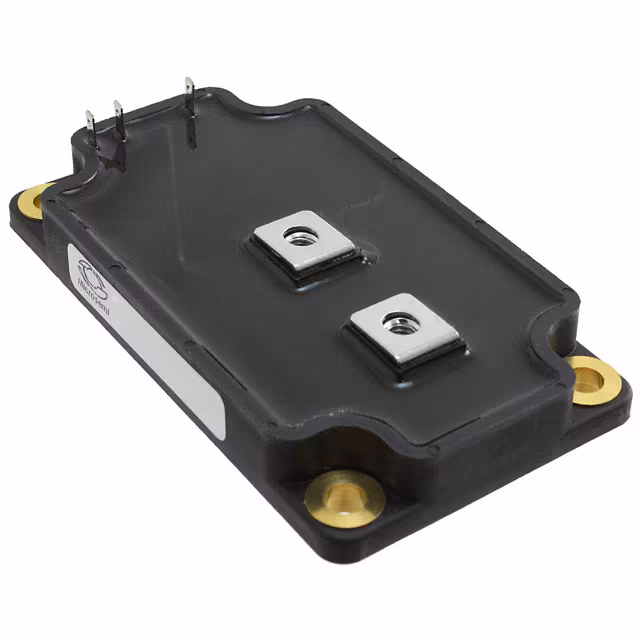

APTGL475U120DAGIGBT MODULE 1200V 610A 2307W SP6 |
6,142 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Single | 1200 V | 610 A | 2307 W | 2.2V @ 15V, 400A | 4 mA | 24.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|

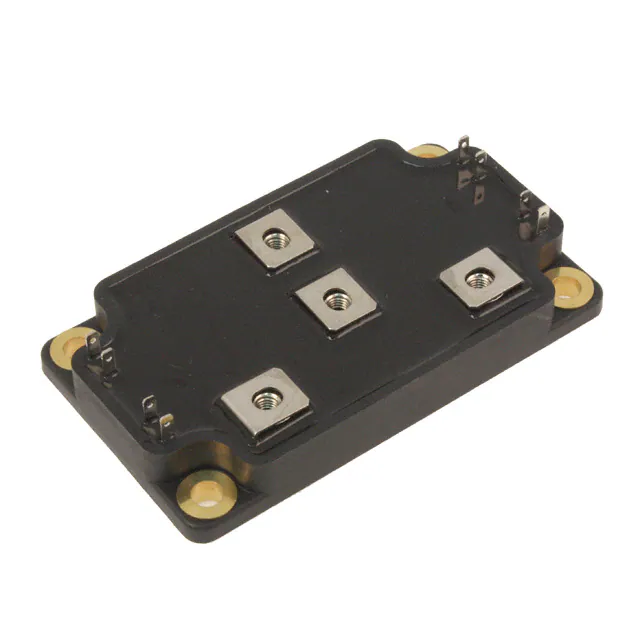

APTGT200TL60GIGBT MODULE 600V 300A 652W SP6 |
4,561 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 300 A | 652 W | 1.9V @ 15V, 200A | 350 µA | 12.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT100H120GIGBT MODULE 1200V 140A 480W SP6 |
2,379 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT200DH120GIGBT MODULE 1200V 280A 890W SP6 |
4,213 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 1200 V | 280 A | 890 W | 2.1V @ 15V, 200A | 350 µA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGL475DA120D3GIGBT MODULE 1200V 610A 2080W D3 |
3,927 | - |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Single | 1200 V | 610 A | 2080 W | 2.2V @ 15V, 400A | 5 mA | 24.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
|
APTGL475SK120D3GIGBT MODULE 1200V 610A 2080W D3 |
4,997 | - |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Single | 1200 V | 610 A | 2080 W | 2.2V @ 15V, 400A | 5 mA | 24.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
|
APTGT400U120D4GIGBT MODULE 1200V 600A 2250W D4 |
6,720 | - |
|
Datasheet | - | D4 | Bulk | Active | Trench Field Stop | Single | 1200 V | 600 A | 2250 W | 2.1V @ 15V, 400A | 8 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D4 |
