IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGL700DA120D3GIGBT MODULE 1200V 840A 3000W D3 |
3,748 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Single | 1200 V | 840 A | 3000 W | 2.2V @ 15V, 600A | 5 mA | 37.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
|
APTGL700SK120D3GIGBT MODULE 1200V 840A 3000W D3 |
3,566 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Single | 1200 V | 840 A | 3000 W | 2.2V @ 15V, 600A | 5 mA | 37.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
|
APTGT300A120D3GIGBT MODULE 1200V 440A 1250W D3 |
2,236 | - |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 440 A | 1250 W | 2.1V @ 15V, 300A | 8 mA | 20 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
APTGT400U170D4GIGBT MODULE 1700V 800A 2080W D4 |
3,420 | - |
|
Datasheet | - | D4 | Bulk | Active | Trench Field Stop | Single | 1700 V | 800 A | 2080 W | 2.4V @ 15V, 400A | 1 mA | 33 nF @ 25 V | Standard | No | - | Chassis Mount | D4 |
|

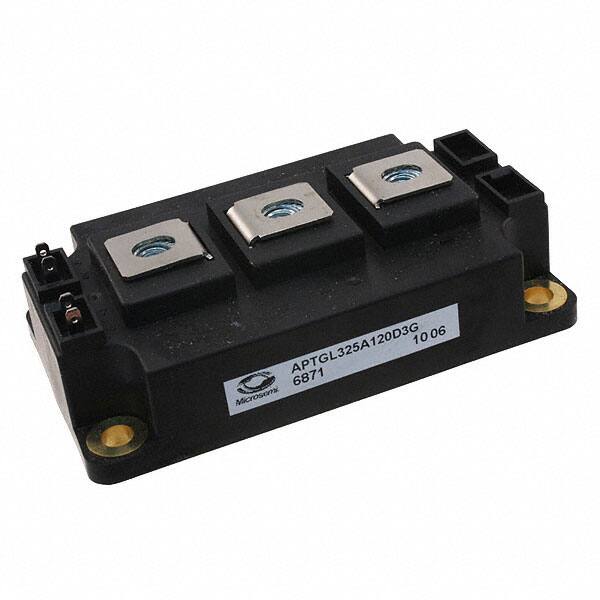

APTGL325A120D3GIGBT MODULE 1200V 420A 1500W D3 |
8,395 | - |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 420 A | 1500 W | 2.2V @ 15V, 300A | 5 mA | 18.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
|
APTGT300TL65GIGBT MODULE 650V SP6C |
2,599 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTGT600DU60GIGBT MODULE 600V 700A 2300W SP6 |
2,291 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 600 V | 700 A | 2300 W | 1.8V @ 15V, 600A | 750 µA | 49 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT200A170D3GIGBT MODULE 1700V 400A 1250W D3 |
8,111 | - |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 400 A | 1250 W | 2.4V @ 15V, 200A | 5 mA | 17 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
APTGT300H60GIGBT MODULE 600V 430A 1150W SP6 |
9,166 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 430 A | 1150 W | 1.8V @ 15V, 300A | 350 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGLQ300H65GIGBT MODULE 650V 600A 1000W SP6 |
3,496 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Full Bridge | 650 V | 600 A | 1000 W | 2.3V @ 15V, 300A | 300 µA | 18.3 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Through Hole | SP6 |
