IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGLQ600A65T6GIGBT MODULE 650V 1200A 2000W SP6 |
3,982 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 650 V | 1200 A | 2000 W | 2.4V @ 15V, 600A | 600 µA | 36.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP6 |
|
|
APTGT100H170GIGBT MODULE 1700V 150A 560W SP6 |
7,425 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1700 V | 150 A | 560 W | 2.4V @ 15V, 100A | 350 µA | 9 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT225A170GIGBT MODULE 1700V 340A 1250W SP6 |
7,176 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 340 A | 1250 W | 2.4V @ 15V, 225A | 500 µA | 20 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT225DU170GIGBT MODULE 1700V 340A 1250W SP6 |
3,609 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1700 V | 340 A | 1250 W | 2.4V @ 15V, 225A | 500 µA | 20 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT100TL170GIGBT MODULE 1700V 150A 560W SP6 |
7,976 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Three Level Inverter | 1700 V | 150 A | 560 W | 2.4V @ 15V, 100A | 350 µA | 9 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT400A120GIGBT MODULE 1200V 560A 1785W SP6 |
4,855 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 560 A | 1785 W | 2.1V @ 15V, 400A | 750 µA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|

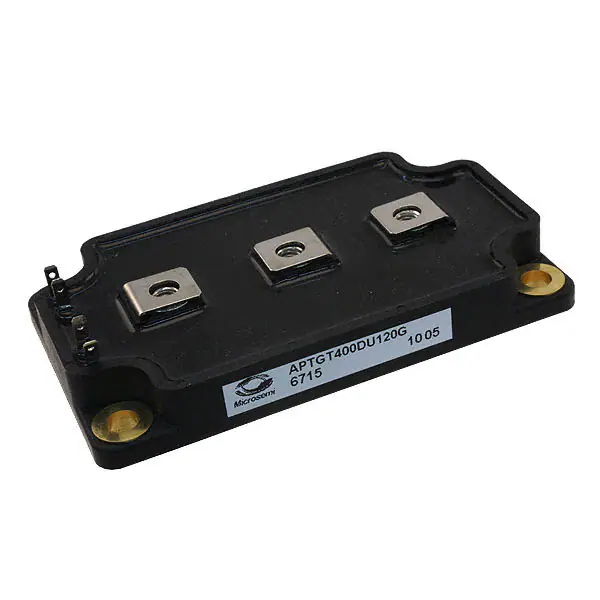

APTGT400DU120GIGBT MODULE 1200V 560A 1785W SP6 |
6,348 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 560 A | 1785 W | 2.1V @ 15V, 400A | 750 µA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT200H120GIGBT MODULE 1200V 280A 890W SP6 |
7,175 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 280 A | 890 W | 2.1V @ 15V, 200A | 350 µA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
APTGLQ200H120GIGBT MODULE 1200V 350A 1000W SP6 |
2,644 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Full Bridge | 1200 V | 350 A | 1000 W | 2.4V @ 15V, 200A | 100 µA | 12.3 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
APTGLQ400A120T6GIGBT MODULE 1200V 700A 1900W SP6 |
6,717 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 700 A | 1900 W | 2.4V @ 15V, 400A | 200 µA | 24.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP6 |
