IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT50TDU170PGIGBT MODULE 1700V 70A 310W SP6P |
8,947 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Triple, Dual - Common Source | 1700 V | 70 A | 310 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGLQ200H65GIGBT MODULE 650V 270A 680W SP6 |
3,368 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Full Bridge | 650 V | 270 A | 680 W | 2.3V @ 15V, 200A | 75 µA | 12.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT200A120D3GIGBT MODULE 1200V 300A 1040W D3 |
3,999 | - |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 300 A | 1040 W | 2.1V @ 15V, 200A | 6 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
APTGT300DA170GIGBT MODULE 1700V 400A 1660W SP6 |
7,894 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Single | 1700 V | 400 A | 1660 W | 2.4V @ 15V, 300A | 750 µA | 26.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT300SK170GIGBT MODULE 1700V 400A 1660W SP6 |
9,473 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Single | 1700 V | 400 A | 1660 W | 2.4V @ 15V, 300A | 750 µA | 26.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT300DA170D3GIGBT MODULE 1700V 530A 1470W D3 |
5,682 | - |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Single | 1700 V | 530 A | 1470 W | 2.4V @ 15V, 300A | 8 mA | 26 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
APTGLQ300A120GIGBT MODULE 1200V 500A 1500W SP6 |
2,921 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 500 A | 1500 W | 2.42V @ 15V, 300A | 200 µA | 17.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|

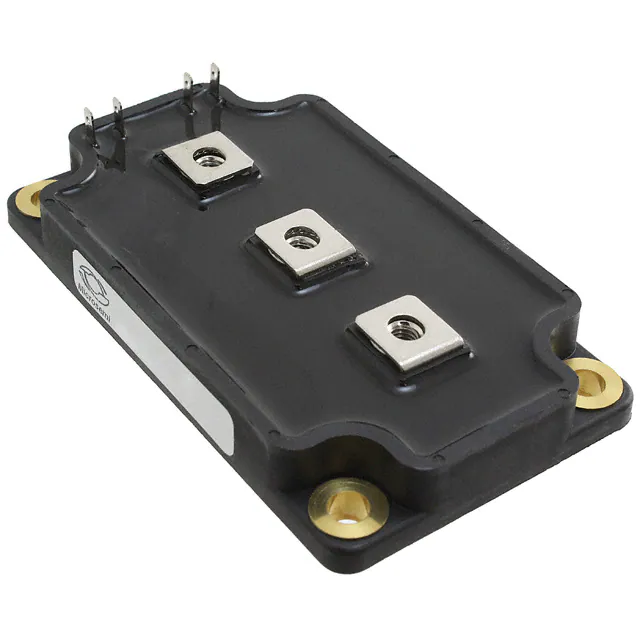

APTGT450A60GIGBT MODULE 600V 550A 1750W SP6 |
2,368 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 550 A | 1750 W | 1.8V @ 15V, 450A | 500 µA | 37 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGLQ150H120GIGBT MODULE 1200V 250A 750W SP6 |
9,960 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Full Bridge | 1200 V | 250 A | 750 W | 2.4V @ 15V, 150A | 100 µA | 8.8 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT150DH170GIGBT MODULE 1700V 250A 890W SP6 |
3,603 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 1700 V | 250 A | 890 W | 2.4V @ 15V, 150A | 350 µA | 13.5 nF @ 25 V | Standard | No | - | Chassis Mount | SP6 |
