IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGL240TL120GIGBT MODULE 1200V 305A 1000W SP6 |
7,656 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Three Level Inverter | 1200 V | 305 A | 1000 W | 2.2V @ 15V, 200A | 2 mA | 12.3 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
APTGT400TL65GIGBT MODULE 650V SP6C |
8,713 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
APTGL475A120D3GIGBT MODULE 1200V 610A 2080W D3 |
9,991 | - |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 610 A | 2080 W | 2.2V @ 15V, 400A | 5 mA | 24.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
|
APTGT400A120D3GIGBT MODULE 1200V 580A 2100W D3 |
3,381 | - |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 580 A | 2100 W | 2.1V @ 15V, 400A | 750 µA | 29 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|

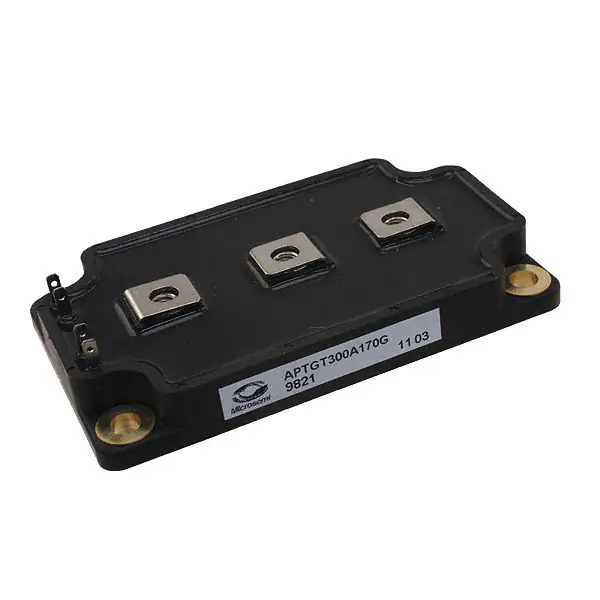

APTGT300A170GIGBT MODULE 1700V 400A 1660W SP6 |
9,692 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 400 A | 1660 W | 2.4V @ 15V, 300A | 750 µA | 26.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
APTGT300DU170GIGBT MODULE 1700V 400A 1660W SP6 |
4,319 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1700 V | 400 A | 1660 W | 2.4V @ 15V, 300A | 750 µA | 26.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT300A170D3GIGBT MODULE 1700V 530A 1470W D3 |
9,641 | - |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 530 A | 1470 W | 2.4V @ 15V, 300A | 8 mA | 26 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
APTGF90A60TGIGBT MODULE 600V 110A 416W SP4 |
5,485 | - |
|
Datasheet | - | SP4 | Bulk | Obsolete | NPT | Half Bridge | 600 V | 110 A | 416 W | 2.5V @ 15V, 90A | 250 µA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
CMTDGF90H603GIC POWER MODULE SMD |
5,641 | - |
|
Datasheet | * | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CMTDGF50H603GIC POWER MODULE SMD |
7,976 | - |
|
Datasheet | * | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
