IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM75BU-12HIGBT MODULE 600V 75A 310W |
8,331 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Full Bridge Inverter | 600 V | 75 A | 310 W | 3V @ 15V, 75A | 1 mA | 6.6 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100DU-24HIGBT MOD 1200V 100A 600W |
7,104 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 100 A | 600 W | 3.7V @ 15V, 100A | 1 mA | 15 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

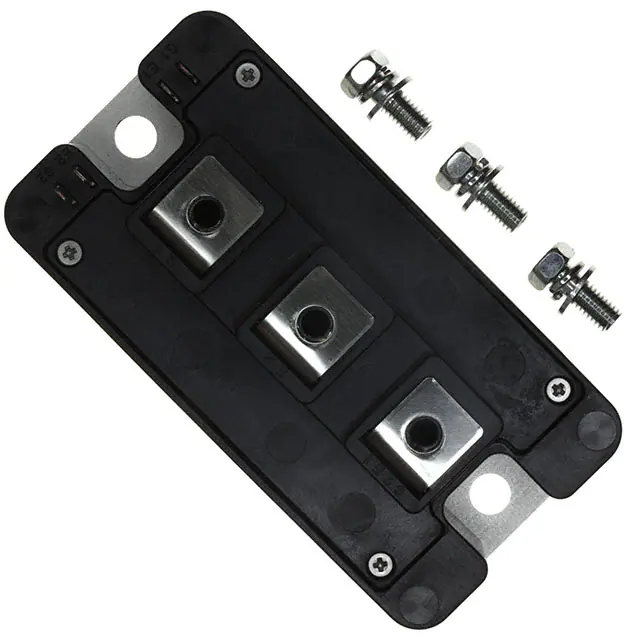

CM200DY-12NFIGBT MOD 600V 200A 650W |
2,065 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 200 A | 650 W | 2.2V @ 15V, 200A | 1 mA | 30 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM200DU-12FIGBT MOD 600V 200A 590W |
9,026 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 600 V | 200 A | 590 W | 2.2V @ 15V, 200A | 1 mA | 54 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM300DX-24S1IGBT MOD 1200V 300A 1850W |
6,464 | - |
|
Datasheet | - | Module | Tray | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 300 A | 1850 W | 2.25V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
CM300EXS-24SIGBT MOD 1200V 300A 2270W |
2,496 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | - | Single | 1200 V | 300 A | 2270 W | 2.25V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
CM200DU-12NFHIGBT MOD 600V 200A 590W |
4,249 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 200 A | 590 W | 2.7V @ 15V, 200A | 1 mA | 55 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM200DU-12HIGBT MOD 600V 200A 650W |
2,901 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 200 A | 650 W | 3V @ 15V, 200A | 1 mA | 17.6 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM200DX-24AIGBT MOD 1200V 200A 1250W |
6,175 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 200 A | 1250 W | 2.6V @ 15V, 200A | 1 mA | 35 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
QIS4506002IGBT MODULE 4500V 60A |
8,792 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | - | Single | 4500 V | 60 A | - | 3.9V @ 15V, 67A | 1 mA | 9 nF @ 10 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | Module |
