IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM200DX-24SIGBT MOD 1200V 200A 1500W |
9,210 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 200 A | 1500 W | 2.15V @ 15V, 200A | 1 mA | 20 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM50RL-24NFIGBT MOD 1200V 50A 390W |
5,864 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 50 A | 390 W | 3V @ 15V, 50A | 1 mA | 8.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300DX-12AIGBT MOD 600V 300A 960W |
8,625 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 300 A | 960 W | 2.1V @ 15V, 300A | 1 mA | 34 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM600HX-12AIGBT MOD 600V 600A 1890W |
5,980 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 600 V | 600 A | 1890 W | 2.1V @ 15V, 600A | 1 mA | 69 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM150DY-24NFIGBT MOD 1200V 150A 780W |
2,086 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 150 A | 780 W | 2.5V @ 15V, 150A | 1 mA | 35 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM35MXA-24SIGBT MOD 1200V 35A 355W |
4,451 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 35 A | 355 W | 2.25V @ 15V, 35A | 1 mA | 3.5 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole | Module |
|
|
CM50MXA-24SIGBT MOD 1200V 50A 355W |
8,962 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 50 A | 355 W | 2.25V @ 15V, 50A | 1 mA | 5 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
CM200EXS-34SAIGBT MOD 1700V 200A 2000W |
7,005 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | - | Single | 1700 V | 200 A | 2000 W | 2.7V @ 15V, 200A | 1 mA | 35 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|

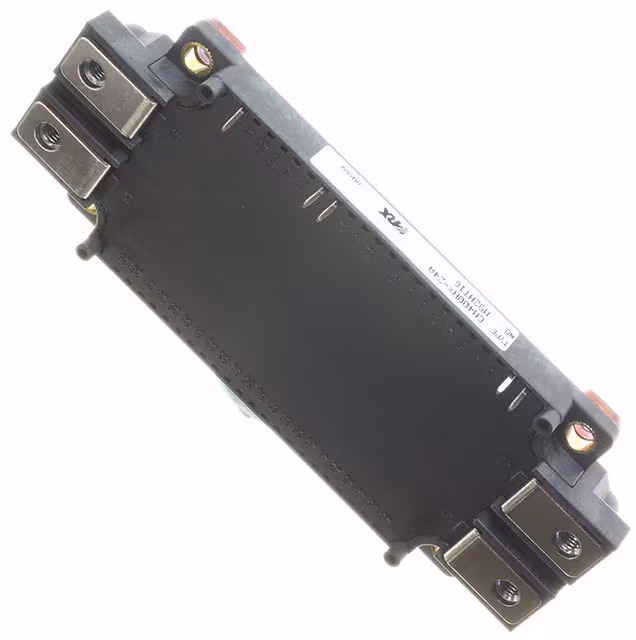

CM400HX-24AIGBT MOD 1200V 400A 2450W |
4,981 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 400 A | 2450 W | 2.6V @ 15V, 400A | 1 mA | 66 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM75TU-12FIGBT MODULE 600V 75A 290W |
9,601 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Three Phase Inverter | 600 V | 75 A | 290 W | 2.2V @ 15V, 75A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
