IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM300DY-24SIGBT MOD 1200V 300A 2270W |
3,055 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 300 A | 2270 W | 2.25V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM100RX-24SIGBT MOD 1200V 100A 750W |
5,926 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 100 A | 750 W | 2.15V @ 15V, 100A | 1 mA | 10 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM400DX-12AIGBT MOD 600V 400A 1340W |
9,377 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 400 A | 1340 W | 2.1V @ 15V, 400A | 1 mA | 50 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM20TF-24HIGBT MOD 1200V 20A 250W |
3,109 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 20 A | 250 W | 3.4V @ 15V, 20A | 1 mA | 4 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

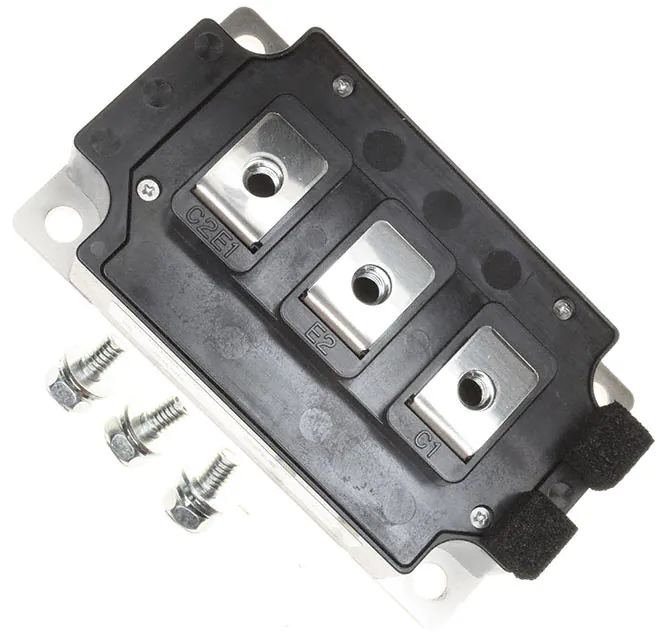

CM300DY-24AIGBT MOD 1200V 300A 1890W |
8,887 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 300 A | 1890 W | 3V @ 15V, 300A | 1 mA | 47 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM150RX-24S1IGBT MOD 1200V 150A 935W |
7,547 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 150 A | 935 W | 2.25V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100TL-12NFIGBT MOD 600V 100A 540W |
9,370 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 600 V | 100 A | 540 W | 2.2V @ 15V, 100A | 1 mA | 15 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300DU-12HIGBT MOD 600V 300A 890W |
9,817 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 300 A | 890 W | 3V @ 15V, 300A | 1 mA | 26.4 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100TU-12HIGBT MOD 600V 100A 400W |
8,531 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 100 A | 400 W | 3V @ 15V, 100A | 1 mA | 8.8 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM300DX-24AIGBT MOD 1200V 300A 1890W |
2,530 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 300 A | 1890 W | 2.6V @ 15V, 300A | 1 mA | 47 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
