IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM100RL-24NFIGBT MOD 1200V 100A 620W |
5,365 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 100 A | 620 W | 3V @ 15V, 100A | 1 mA | 17.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM75TL-12NFIGBT MODULE 600V 75A 430W |
3,379 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 600 V | 75 A | 430 W | 2.2V @ 15V, 75A | 1 mA | 11.3 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM75TL-24NFIGBT MOD 1200V 75A 520W |
2,713 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 75 A | 520 W | 3V @ 15V, 75A | 1 mA | 11.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100RX-24AIGBT MOD 1200V 100A 625W |
8,127 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 100 A | 625 W | 2.6V @ 15V, 100A | 1 mA | 17.5 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

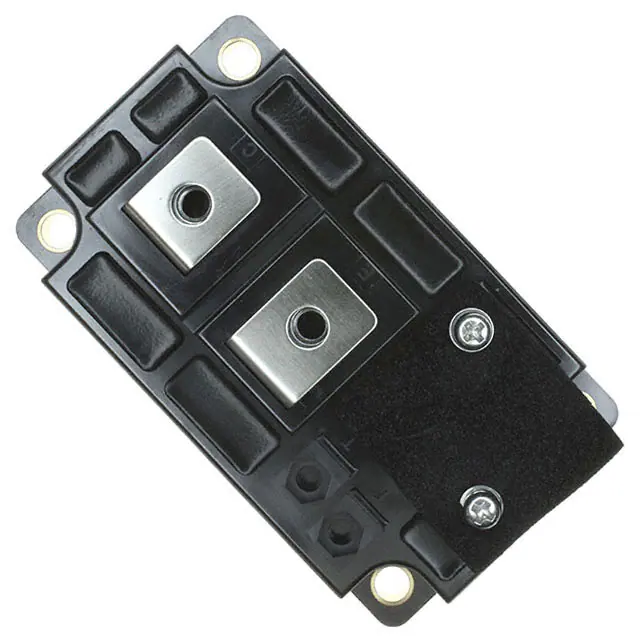

CM600HA-24AIGBT MOD 1200V 600A 3670W |
3,436 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Single | 1200 V | 600 A | 3670 W | 3V @ 15V, 600A | 1 mA | 105 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

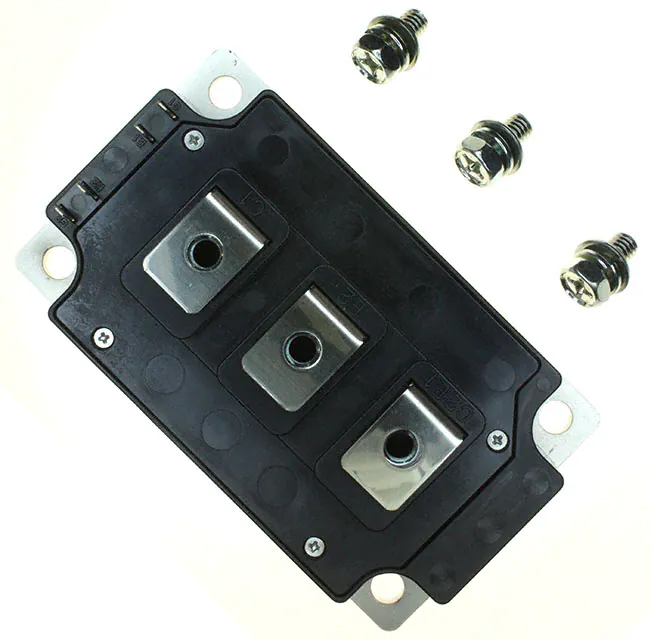

CM400DY-12NFIGBT MOD 600V 400A 1130W |
2,897 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 400 A | 1130 W | 2.2V @ 15V, 400A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM400HU-24FIGBT MOD 1200V 400A 1600W |
8,713 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Single | 1200 V | 400 A | 1600 W | 2.4V @ 15V, 400A | 2 mA | 160 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MG200Q2YS60AIGBT MOD 1200V 200A 2000W |
8,555 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 200 A | 2000 W | 2.8V @ 15V, 200A | 1 mA | 15 nF @ 10 V | Standard | No | -20°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM150RL-12NFIGBT MOD 600V 150A 730W |
9,189 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 600 V | 150 A | 730 W | 2.2V @ 15V, 150A | 1 mA | 23 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM150RX-12AIGBT MOD 600V 150A 520W |
8,156 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 600 V | 150 A | 520 W | 2.1V @ 15V, 150A | 1 mA | 18 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
