IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM75RL-24NFIGBT MOD 1200V 75A 520W |
5,526 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 75 A | 520 W | 3V @ 15V, 75A | 1 mA | 11.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

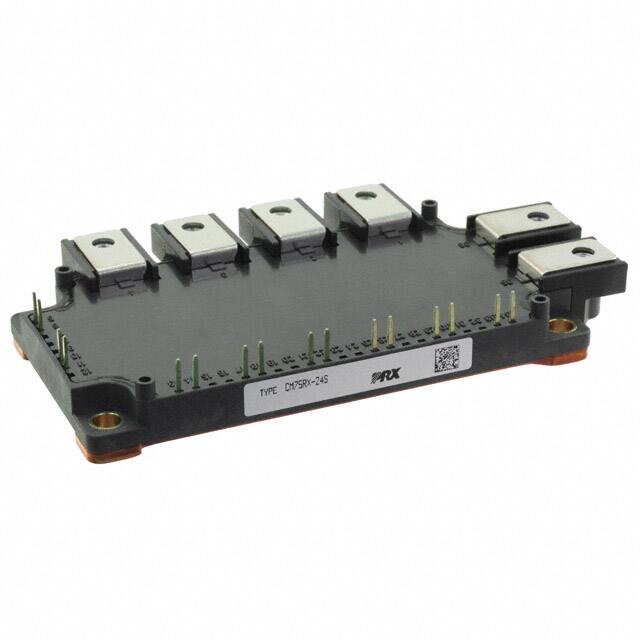

CM75RX-24SIGBT MOD 1200V 75A 600W |
6,600 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 75 A | 600 W | 2.15V @ 15V, 75A | 1 mA | 7.5 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM150DU-24FIGBT MOD 1200V 150A 600W |
5,828 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 1200 V | 150 A | 600 W | 2.4V @ 15V, 150A | 1 mA | 59 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM50TU-24FIGBT MOD 1200V 50A 320W |
7,344 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Three Phase Inverter | 1200 V | 50 A | 320 W | 2.4V @ 15V, 50A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

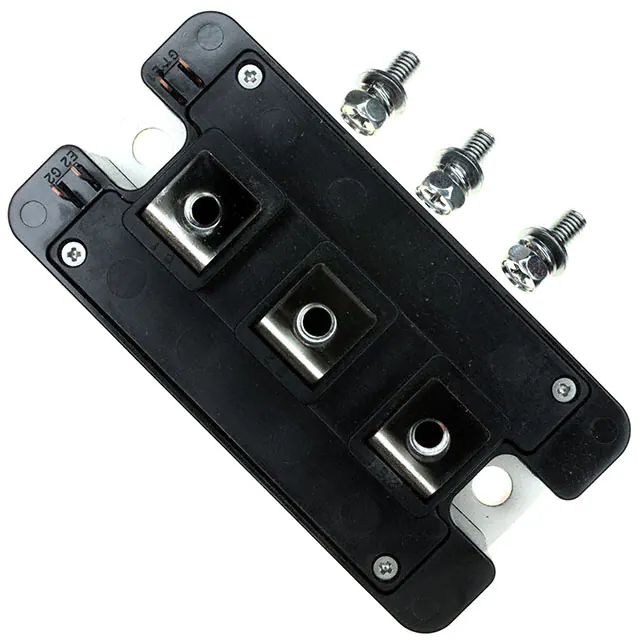

CM300DY-12NFIGBT MOD 600V 300A 780W |
9,235 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 300 A | 780 W | 2.2V @ 15V, 300A | 1 mA | 45 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
QIS4506001IGBT MODULE 4500V 60A |
6,145 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | Single | 4500 V | 60 A | - | 3.9V @ 15V, 67A | 1 mA | 9 nF @ 10 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM300DX-24SIGBT MOD 1200V 300A 2270W |
6,166 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 300 A | 2270 W | 2.15V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM75MXA-24SIGBT MOD 1200V 75A 600W |
9,691 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 75 A | 600 W | 2.25V @ 15V, 75A | 1 mA | 7.5 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM100TX-24SIGBT MOD 1200V 100A 750W |
5,669 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 100 A | 750 W | 2.25V @ 15V, 100A | 1 mA | 10 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM100RL-12NFIGBT MOD 600V 100A 540W |
3,157 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 600 V | 100 A | 540 W | 2.2V @ 15V, 100A | 1 mA | 15 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
