Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBRH20030RLDIODE SCHOTTKY REV 30V 200A D-67 |
3,788 | - |
|
Datasheet | - | D-67 | Bulk | Obsolete | Schottky, Reverse Polarity | 30 V | 200A | 580 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 30 V | - | - | - | Chassis Mount | D-67 | -55°C ~ 150°C |
|
|
MBRH20035LDIODE SCHOTTKY 35V 200A D-67 |
9,805 | - |
|
Datasheet | - | D-67 | Bulk | Obsolete | Schottky | 35 V | 200A | 600 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 200 V | - | - | - | Chassis Mount | D-67 | - |
|
|
MBRH20035RLDIODE SCHOTTKY REV 35V 200A D-67 |
3,664 | - |
|
Datasheet | - | D-67 | Bulk | Obsolete | Schottky, Reverse Polarity | 35 V | 200A | 600 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 200 V | - | - | - | Chassis Mount | D-67 | - |
|
|
MBRH20040LDIODE SCHOTTKY 40V 200A D-67 |
2,902 | - |
|
Datasheet | - | D-67 | Bulk | Obsolete | Schottky | 40 V | 200A | 600 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 40 V | - | - | - | Chassis Mount | D-67 | - |
|
|
MBRH20040RLDIODE SCHOTTKY REV 40V 200A D-67 |
9,521 | - |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky, Reverse Polarity | 40 V | 200A | 600 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 40 V | - | - | - | Chassis Mount | D-67 | - |
|
|
MBRH20045LDIODE SCHOTTKY 45V 200A D-67 |
4,898 | - |
|
Datasheet | - | D-67 | Bulk | Obsolete | Schottky | 45 V | 200A | 600 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | - | - | - | Chassis Mount | D-67 | -55°C ~ 150°C |
|

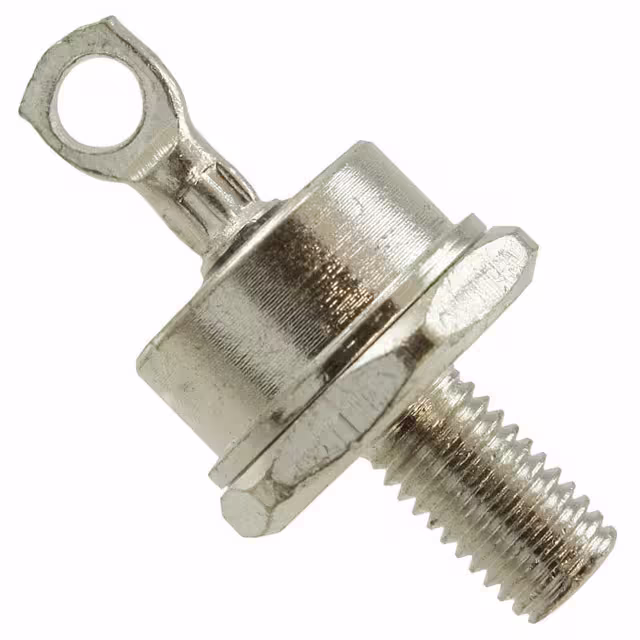

FR85GR02DIODE GEN PURP REV 400V 85A DO5 |
9,784 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
FR85BR02DIODE GEN PURP REV 100V 85A DO5 |
5,415 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 100 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85BR05DIODE GEN PURP REV 100V 85A DO5 |
3,726 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 100 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85DR02DIODE GEN PURP REV 200V 85A DO5 |
8,385 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 200 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
