Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GKR130/16DIODE GP 1.6KV 165A DO205AA |
4,233 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 1600 V | 165A | 1.5 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 22 mA @ 1600 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 180°C |
|
GKR130/18DIODE GP REV 1.8KV 165A DO205AA |
7,381 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard, Reverse Polarity | 1800 V | 165A | 1.5 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 22 mA @ 1800 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -55°C ~ 150°C |
|

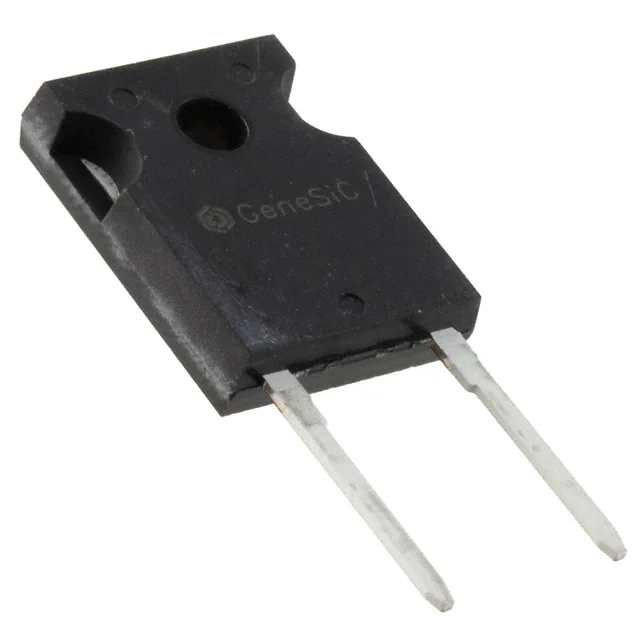

GB50SLT12-247DIODE SIL CARB 1.2KV 50A TO247-2 |
5,935 | - |
|
Datasheet | - | TO-247-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 50A | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 1 mA @ 1200 V | 2940pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
1N3289ADIODE GEN PURP 200V 100A DO205AA |
9,281 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 200 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 24 mA @ 200 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|
|
1N3289ARDIODE GP REV 200V 100A DO205AA |
9,023 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard, Reverse Polarity | 200 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 24 mA @ 200 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|
|
1N3291ADIODE GEN PURP 400V 100A DO205AA |
7,271 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 400 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 24 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|
|
1N3291ARDIODE GP REV 400V 100A DO205AA |
7,286 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 24 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|
|
1N3293ADIODE GEN PURP 600V 100A DO205AA |
4,617 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 600 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 17 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|
|
1N3293ARDIODE GP REV 600V 100A DO205AA |
7,228 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 17 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|
|
1N3294ADIODE GEN PURP 800V 100A DO205AA |
4,288 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 800 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 13 mA @ 800 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
