Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FR85DR05DIODE GEN PURP REV 200V 85A DO5 |
4,748 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 200 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85GR05DIODE GEN PURP REV 400V 85A DO5 |
4,586 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
FR85JR02DIODE GEN PURP REV 600V 85A DO5 |
6,685 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85KR05DIODE GEN PURP REV 800V 85A DO5 |
9,666 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 800 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85MR05DIODE GEN PURP REV 1KV 85A DO5 |
2,279 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 85A | 1.3 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|

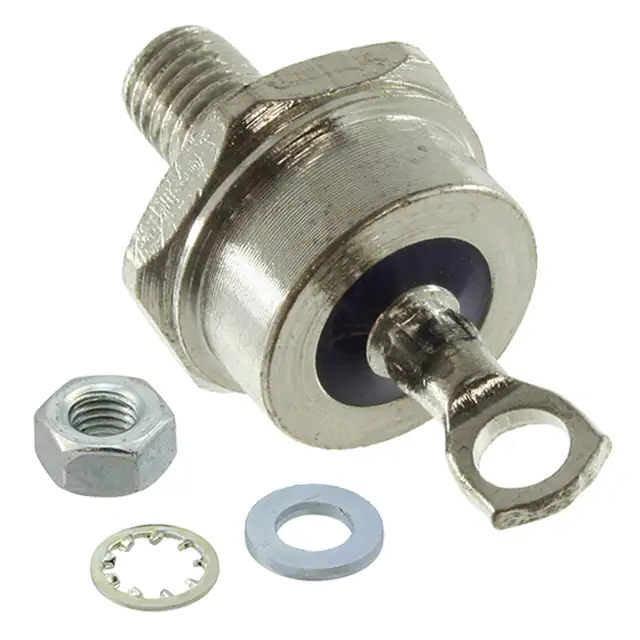

MUR5010RDIODE GEN PURP REV 100V 50A DO5 |
2 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 100 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|
|
GC05MPS33J-TR3300V 5A TO-263-7 SIC SCHOTTKY M |
7,595 | - |
|
Datasheet | MPS™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 3300 V | 11A | 3 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 50 µA @ 3300 V | 337pF @ 1V, 1MHz | - | - | Surface Mount | TO-263-7 | -55°C ~ 175°C |
|
|
MURH10005DIODE GEN PURP 50V 100A D-67 |
9,973 | - |
|
Datasheet | - | D-67 | Bulk | Obsolete | Standard | 50 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | - | - | - | Chassis Mount | D-67 | - |
|
|
MURH10005RDIODE GEN PURP REV 50V 100A D-67 |
9,553 | - |
|
Datasheet | - | D-67 | Bulk | Obsolete | Standard, Reverse Polarity | 50 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | - | - | - | Chassis Mount | D-67 | - |
|
|
MURH7005DIODE GEN PURP 50V 70A D-67 |
9,319 | - |
|
Datasheet | - | D-67 | Bulk | Obsolete | Standard | 50 V | 70A | 1 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | - | - | - | Chassis Mount | D-67 | -55°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
