RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9000154ANTENNA PCB, GSM5 D0230 |
4,436 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | 2.5, 2.7 | - | 0dBi, 0.7dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | LTE, LoRa, LPWAN, Sigfox |
|
1001932FT-AA10L0150ANTENNA ASSY, WLAN FT AA10 0150 |
3,198 | - |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.4dBi | 500 mW | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.063" (1.60mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1005194-B02ANTENNA ASSY,UWB68 H SMA(F) |
2,155 | - |
|
Datasheet | - | Box | Active | - | SHF (f > 4GHz) | 7.25GHz | 6GHz ~ 8.5GHz | PCB Trace | 1 | 2 | - | 6.1dBi | 10 W | - | SMA Female | - | - | - | Connector Mount | 0.031" (0.80mm) | UWB |
|

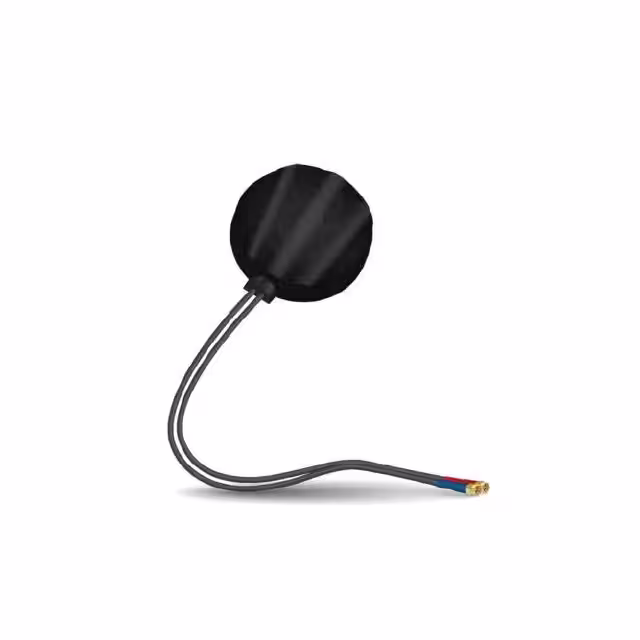

X1005243-LGA2SA10A1ANTENNA GPS-GLONASS/LTE |
100 | - |
|
Datasheet | - | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Module | 5 | 2, 3, 3.7 | - | 2.7dBi, 1dBi, 1dBi, 1.2dBi, 2.1dBi | - | Cable - 1m, LNA | SMA Male (2) | IPX5 | - | - | Adhesive | 0.413" (10.50mm) | GLONASS, GPS, LTE |
|
9003160GPS 18X18X2MM CERAMIC PATCH ANTE |
100 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.57GHz ~ 1.58GHz | Ceramic Patch | 1 | - | -6dB | 1dBi | - | - | - | - | - | - | Adhesive | 0.079" (2.00mm) | GPS |
|
|
9001999SDARS 25X25X4MM CERAMIC PATCH AN |
100 | - |
|
Datasheet | - | Box | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.33GHz | 2.32GHz ~ 2.35GHz | Ceramic Patch | 1 | - | -11dB | 6.5dBi | - | - | - | - | - | - | Adhesive | 0.157" (4.00mm) | IoT, SDARS |
|
|
X9001558-3GDSMBISM/CELLULAR/LORA EXTERNAL WHIP |
2,654 | - |
|
Datasheet | - | Bag | Active | Cellular, General ISM | Wide Band | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 2 | 4.9, 7.2 | - | 0.5dBi, 1.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | 2G, 3G, ISM, LoRa |
|
|
X9001558-3GDRMBISM/CELLULAR/LORA EXTERNAL WHIP |
1,928 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Tilt | 2 | 4.9, 7.2 | - | 0.5dBi, 1.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | 2G, 3G, IoT, ISM, LoRa, M2M |
|
|
X9003088-3GDSMBISM/CELLULAR/LORA EXTERNAL WHIP |
1,974 | - |
|
Datasheet | - | Bag | Active | Cellular, General ISM | Wide Band | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | 5.3, 7.3 | - | -1dBi, 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.949" (49.50mm) | 2G, 3G, ISM, LoRa |
|
|
X1005619-4GDSMB4G/CELLULAR EXTERNAL BLADE ANTEN |
2,496 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 749MHz, 880MHz, 2.205GHz | 698MHz ~ 800MHz, 800MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 3 | - | 2.5dB, 3dB, 13.5dB | 1.8dBi, 1.8dBi, 5.2dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 7.008" (178.00mm) | 4G, LTE |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
