RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications

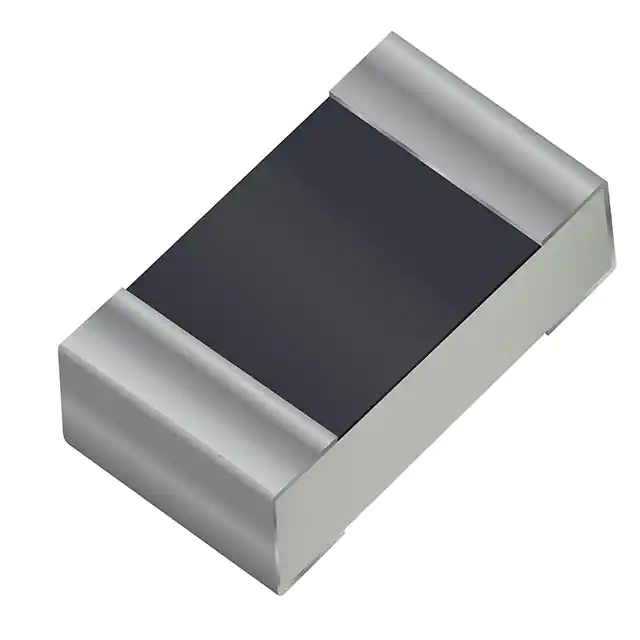

1001312 RF ANT 2.4GHZ CHIP SOLDER SMD KYOCERA AVX	1,973	-	RFQ	Datasheet	Savvi™	Tape & Reel (TR)	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.4GHz	2.4GHz ~ 2.5GHz	Chip	1	1.8	-	1.72dBi	-	-	Solder	-	-	-	Surface Mount	0.022" (0.55mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™
1002649 EMBEDDED ANTENNA, GPS, GLONASS, KYOCERA AVX	3,020	-	RFQ	Datasheet	-	Tray	Active	Navigation	UHF (1GHz ~ 2GHz)	1.561GHz, 1.575GHz, 1.575GHz, 1.603GHz	1.559GHz ~ 1.563GHz, 1.559GHz ~ 1.591GHz, 1.593GHz ~ 1.61GHz	Ceramic Patch	4	-	-15dB	5dBi, 5.5dBi, 5.5dBi, 5.5dBi	-	-	Solder	-	-	-	Adhesive, Through Hole	0.264" (6.70mm)	Beidou, Galileo, GLONASS, GNSS, GPS

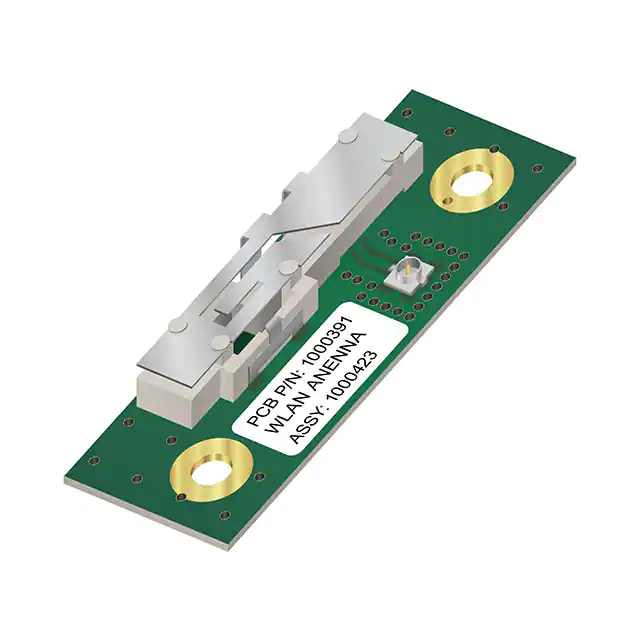

1000423 RF ANT 2.4GHZ/4.9GHZ STAMPED MET KYOCERA AVX	2,375	-	RFQ	Datasheet	Prestta™	Tray	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz	2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz	Stamped Metal	4	3, 2.5, 2.5, 3	-	-0.6dBi, 2.5dBi, 4.5dBi, 3.5dBi	-	-	Solder	-	-	-	Surface Mount	0.280" (7.10mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™
X9001248-4GMSMB1000R ANTENNA,LTE MAGNETIC 1000 KYOCERA AVX	2,318	-	RFQ	Datasheet	-	Box	Active	802.15.4, Cellular	Wide Band	700MHz, 800MHz, 900MHz, 1.8GHz, 2.1GHz, 2.6GHz	698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz	Whip, Straight	6	-	-5.2dB, -5.8dB, -6dB	-0.5dBi, -0.2dBi, 1.8dBi, 1.9dBi	-	-	SMA Male	IP65	-	-	Magnetic	4.409" (112.00mm)	LTE, LoRa, Sigfox
1004627 ANTENNA ASSY, GPS 25X25X5 KYOCERA AVX	3,523	-	RFQ	Datasheet	-	Tray	Active	Navigation	UHF (1GHz ~ 2GHz)	1.575GHz, 1.602GHz	-	Ceramic Patch	2	2, 3	-	3.7dBi, 3dBi	-	Cable - 72mm	I-PEX MHF3	-	-	-	Adhesive	0.209" (5.30mm)	GLONASS, GPS
1004112-B002 ANTENNA ASSY, EXTERNAL LTE TNC KYOCERA AVX	1,205	-	RFQ	Datasheet	-	Bag	Active	802.15.4, Cellular	Wide Band	825MHz, 1.955GHz, 2.6GHz	690MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz	Whip, Tilt	3	2.5	-	1.18dBi, 4.5dBi, 4dBi	5 W	-	TNC Male	-	-	-	Connector Mount	8.941" (227.10mm)	LTE, LoRa, LPWAN, Sigfox

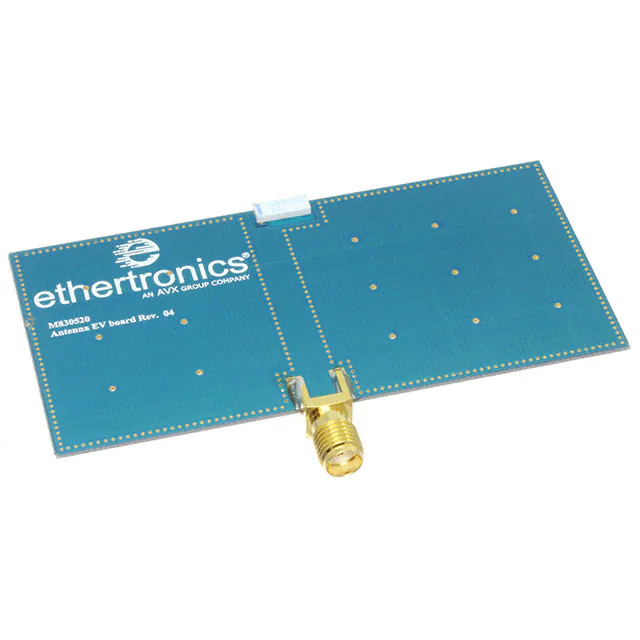

M830520-01 RF ANT 2.4GHZ/5.35GHZ CHIP SLD KYOCERA AVX	3,503	-	RFQ	Datasheet	Savvi™	Bulk	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 5.35GHz	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz	Chip	2	2.6	-	3.2dBi	500 mW	-	Solder	-	-	-	Surface Mount	0.051" (1.30mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™

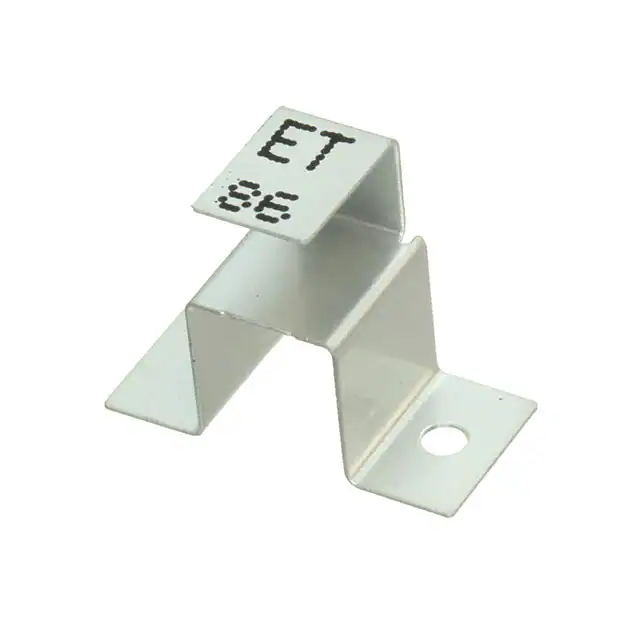

1002686 RF ANT 5GHZ STAMPED MET SLDR SMD KYOCERA AVX	1,919	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	WiFi	SHF (f > 4GHz)	5GHz	4.9GHz ~ 5.9GHz	Stamped Metal	2	2	-	6dBi	2 W	-	Solder	-	-	-	Surface Mount	0.394" (10.00mm)	Wi-Fi, WLAN
1003893FT-AA10L0025 ANTENNA ASSY, WLANB FT AA10 0025 KYOCERA AVX	3,060	-	RFQ	Datasheet	-	Box	Active	-	UHF (2GHz ~ 3GHz)	2.4425GHz	2.4GHz ~ 2.485GHz	PCB Trace	1	1.5	-	3.3dBi	500 mW	Cable - 25mm	U.FL	-	-	-	Adhesive	0.005" (0.12mm)	WLAN
1004796 ANTENNA PCB, LTE MRR KYOCERA AVX	4,202	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	802.15.4, Cellular	Wide Band	600MHz, 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz	600MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz	Chip	9	2.5, 3	-	1.5dBi, 1.6dBi, 3.1dBi, 1.7dBi	2 W	-	Solder	-	-	-	Surface Mount	0.126" (3.20mm)	LTE, LoRa, LPWAN, Sigfox

WINSUN SOURCING SUPPORT

Need Help Sourcing RF Antennas?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

RF Antennas FAQ

Common questions about filtering, comparing and sourcing RF Antennas components.

How can I narrow the RF Antennas selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific RF Antennas part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
