RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M830310RF ANT 2.4GHZ CHIP SOLDER SMD |
2,870 | - |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.39dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W2P15X7W04-U050D3B0AANT ASSY, WLAN2 04 050 D0230 |
1,855 | - |
|
Datasheet | - | Box | Active | WiFi | SHF (f > 4GHz) | 5.5GHz, 6.525GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 2 | - | -7.3dB, -9dB | 4.3dBi, 3.9dBi | - | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|
1001388RF ANT 5GHZ STAMPED MET SLDR SMD |
3,069 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | SHF (f > 4GHz) | 5GHz | 4.9GHz ~ 5.9GHz | Stamped Metal | 2 | - | - | 5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.087" (2.20mm) | Wi-Fi, WLAN |
|
1001430RF ANT 5GHZ STAMPED MET SLDR SMD |
2,715 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | SHF (f > 4GHz) | 5GHz | 4.9GHz ~ 5.9GHz | Stamped Metal | 2 | - | - | 7dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.087" (2.20mm) | Wi-Fi, WLAN |
|
M232110RF ANT 1.575GHZ/2.4GHZ CHIP SLD |
3,856 | - |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.4GHz | 1.575GHz, 2.4GHz ~ 2.5GHz | Chip | 2 | 2, 2.6 | - | 1.98dBi, 1.88dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ |
|
9000130RF ANT 2.4GHZ/4.9GHZ PCB TRACE |
1,481 | - |
|
Datasheet | Prestta™ | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz | 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 4 | - | -10dB | 2dBi, 4dBi, 5dBi, 6dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
W2P15X7F04-U050D3B0TANT ASSY, WLAN2 04 050 D0230 |
2,947 | - |
|
Datasheet | - | Box | Active | WiFi | SHF (f > 4GHz) | 5.5GHz, 6.525GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 2 | - | -7.3dB, -9dB | 4.3dBi, 3.9dBi | - | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|
|
W2P15X7W04-U150D3B0AANT ASSY, WLAN2 04 150 D0230 |
4,936 | - |
|
Datasheet | - | Box | Active | WiFi | SHF (f > 4GHz) | 5.5GHz, 6.525GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 2 | - | -7.3dB, -9dB | 4.3dBi, 3.9dBi | - | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|

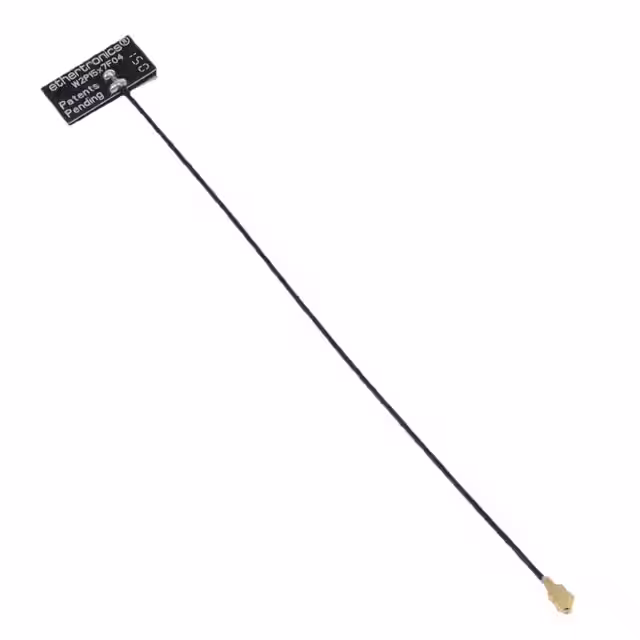

W2P15X7F04-U100D3B0TANT ASSY, WLAN2 04 100 D0230 |
3,579 | - |
|
Datasheet | - | Box | Active | WiFi | SHF (f > 4GHz) | 5.5GHz, 6.525GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 2 | - | -9dB, -7.3dB | 4.3dBi, 3.9dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|
1004292PT-AA10L0100ANTENNA ASSY, WLANA PT 100 |
4,344 | - |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, WiFi | SHF (f > 4GHz) | 5.4875GHz | 5.15GHz ~ 5.825GHz | PCB Trace | 1 | 2 | - | 4.8dBi | 2 W | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
