RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
X1005249-LGA2SA10A2 ANTENNA GPS-GLONASS/LTE KYOCERA AVX	3,149	-	RFQ	Datasheet	-	Box	Active	Cellular, Navigation	Wide Band	829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz	698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz	Module	5	2, 2.3, 3.8, 5	-	3.7dBi, 3dBi, 3.5dBi, 3.6dBi, 3.6dBi	-	Cable - 1m, LNA	SMA Male (2)	IPX5	-	-	Adhesive	0.787" (20.00mm)	GLONASS, GPS, LTE
W3P42X8F04-H050D3B0T WI-FI DUAL BAND/BLUETOOTH PCB AN KYOCERA AVX	1,402	-	RFQ	Datasheet	-	Bag	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
X9001248-4GMRMB1000L 4G/CELLULAR MAGNET MOUNT EXTERNA KYOCERA AVX	1,810	-	RFQ	Datasheet	-	Bag	Active	Cellular	Wide Band	829MHz, 2.2GHz	698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz	Whip, Straight	2	-	-6dBi, -5.2dBi	1.8dBi, 1.9dBi	-	Cable - 1m	RP-SMA Male	IP65	-	-	Magnetic	4.331" (110.00mm)	2G, 3G, 4G, LoRa, LTE Cat 1, LTE-M, M2M, NB-IoT, SigFox
1002232-01 EVB - EVALUATION BOARD FOR 10022 KYOCERA AVX	4,000	-	RFQ	Datasheet	-	Bag	Active	Bluetooth, General ISM	UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)	866.5MHz, 915MHz, 2.45GHz	863MHz ~ 870MHz, 902MHz ~ 928MHz, 2.4GHz ~ 2.5GHz	Flat Bar	3	2	-	0.51dBi, 0.21dBi, 1.5dBi	2 W	-	Solder	-	-	-	Surface Mount	0.126" (3.20mm)	Bluetooth, ISM, LoRa, M2M, Sigfox, WLAN
9002133-02 EVB - EVALUATION BOARD FOR 90021 KYOCERA AVX	4,945	-	RFQ	Datasheet	-	Bag	Active	General ISM	UHF (300MHz ~ 1GHz)	866.5MHz, 915MHz	863MHz ~ 870MHz, 902MHz ~ 928MHz	Chip	2	2.32, 2.34	-	0.5dBi, 1.2dBi	500 mW	-	Solder	-	-	-	Surface Mount	0.031" (0.80mm)	IoT, ISM, LoRa, M2M
M830110-10K RF ANT 1.561GHZ/1.575GHZ CHIP KYOCERA AVX	3,557	-	RFQ	Datasheet	Savvi™	Tape & Reel (TR)	Not For New Designs	Navigation	UHF (1GHz ~ 2GHz)	1.561GHz, 1.575GHz, 1.602GHz	1.561GHz ~ 1.602GHz	Chip	1	1.7	-	1.78dBi	500 mW	-	Solder	-	-	-	Surface Mount	0.051" (1.30mm)	Beidou, GLONASS, GPS
M830510-10K RF ANT 2.4GHZ/5.4GHZ CHIP SLD KYOCERA AVX	2,702	-	RFQ	Datasheet	Savvi™	Tape & Reel (TR)	Not For New Designs	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 5.4GHz	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz	Chip	2	2.6, 3	-	1.1dBi, 3.2dBi	-	-	Solder	-	-	-	Surface Mount	0.052" (1.33mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™

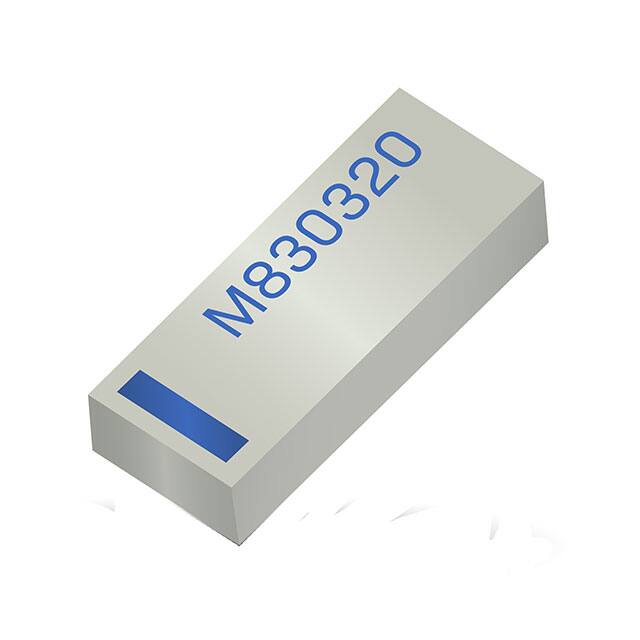

M830320-4.5K RF ANT 2.4GHZ CHIP SOLDER SMD KYOCERA AVX	1,650	-	RFQ	Datasheet	Savvi™	Tape & Reel (TR)	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.4GHz	2.4GHz ~ 2.5GHz	Chip	1	2	-	1.39dBi	500 mW	-	Solder	-	-	-	Surface Mount	0.051" (1.30mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™
M830510 RF ANT 2.4GHZ/5.4GHZ CHIP SLD KYOCERA AVX	1,019	-	RFQ	Datasheet	Savvi™	Tape & Reel (TR)	Obsolete	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 5.4GHz	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz	Chip	2	2.6, 3	-	1.1dBi, 3.2dBi	-	-	Solder	-	-	-	Surface Mount	0.052" (1.33mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™

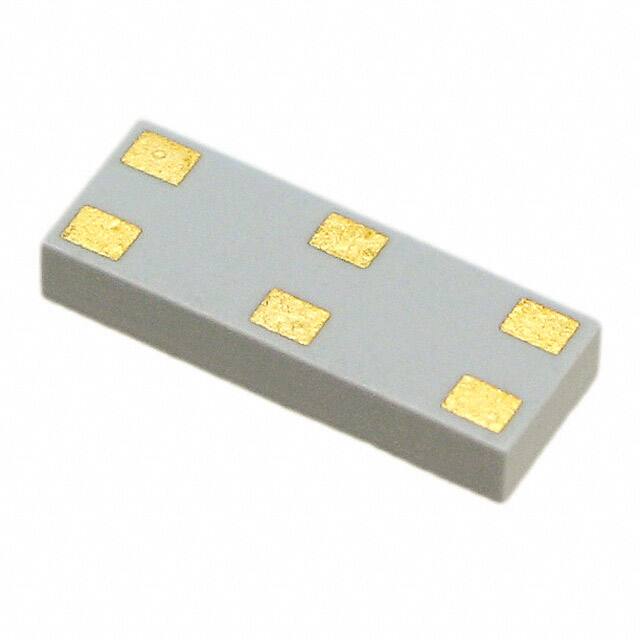

M830110 RF ANT 1.561GHZ/1.575GHZ CHIP KYOCERA AVX	2,986	-	RFQ	Datasheet	Savvi™	Tape & Reel (TR)	Obsolete	Navigation	UHF (1GHz ~ 2GHz)	1.561GHz, 1.575GHz, 1.602GHz	1.561GHz ~ 1.602GHz	Chip	1	1.7	-	1.78dBi	500 mW	-	Solder	-	-	-	Surface Mount	0.051" (1.30mm)	Beidou, GLONASS, GPS

WINSUN SOURCING SUPPORT

Need Help Sourcing RF Antennas?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

RF Antennas FAQ

Common questions about filtering, comparing and sourcing RF Antennas components.

How can I narrow the RF Antennas selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific RF Antennas part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
