RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1005595-C0035G/4G EXTERNAL BLADE ANTENNA, BL |
3,296 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 780MHz, 1.9GHz, 3.7GHz | 600MHz ~ 960MHz, 1.4GHz ~ 2.4GHz, 2.4GHz ~ 5GHz | Whip, Tilt | 3 | 3 | - | 0.3dBi, 2.3dBi, 3.9dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | 4G, 5G, LTE |
|
|
9003005C0-AM20L0060ISM 2.4GHZ 25X25X4MM CERAMIC PAT |
2,988 | - |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz | Ceramic Patch | 1 | - | -7.8dB | 2.5dBi | - | Cable - 60mm | MMCX Male | - | - | - | Surface Mount | 0.178" (4.52mm) | Bluetooth, IoT, M2M, Wi-Fi, WLAN, ZigBee™ |
|
|
1005801-01EVB - EVALUATION BOARD FOR 10058 |
4,292 | - |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.485GHz | Chip | 1 | 2 | - | 3dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.014" (0.36mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
|
X9003063-5GDNMW5G/4G EXTERNAL FIBREGLASS ANTENN |
100 | - |
|
Datasheet | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
X9003063-LPDNMWLORA/ISM EXTERNAL FIBREGLASS ANT |
3,481 | - |
|
Datasheet | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
X1005756-LBA2SA05A22-IN-1 LTE / WI-FI BAND EXTERNAL |
3,012 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.442GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.485GHz, 2.4GHz ~ 2.7GHz | Module | 3 | 2, 3, 3.5, 5 | - | 2.5dBi, 3.5dBi, 4.6dBi, 4.2dBi | - | Cable - 500mm | SMA Male | IPX5 | - | - | Adhesive | 0.949" (24.10mm) | LTE |
|

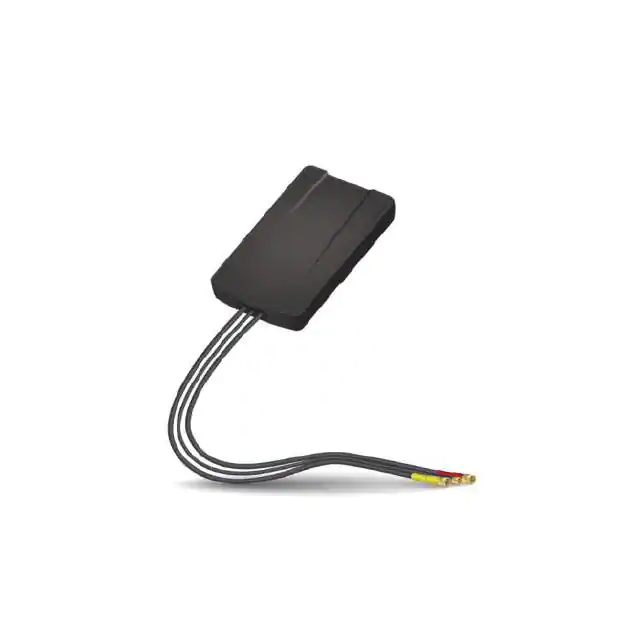

X1005244-LWA3SX10A2ANTENNA GNSS / LTE / WIFI |
4,566 | - |
|
Datasheet | - | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz, 2.45GHz, 5.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Module | 8 | 2, 2.5, 3 | - | 3.5dBi, 1.1dBi, 2.1dBi, 2.3dBi, 4.6dBi, 3.7dBi, 4.5dBi, 3.4dBi | - | Cable - 1m, LNA | SMA Male (2), RP-SMA Male (1) | IPX7 | - | - | Adhesive | 0.500" (12.70mm) | GLONASS, GPS, GNSS, LTE, Wi-Fi |
|
|
1001044GPS CERAMIC PATCH ANTENNA |
2,676 | - |
|
Datasheet | - | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | 2 | - | 0.3dBic | - | - | - | - | - | - | Adhesive | 0.264" (6.70mm) | GPS |
|

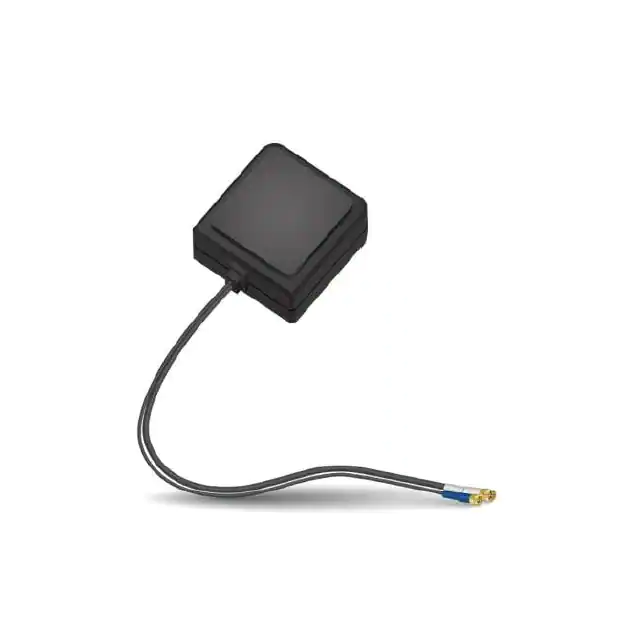

X1005248-GDA2SA10A2ANTENNA GNSS/DSRC |
2,932 | - |
|
Datasheet | - | Box | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 5.885GHz | 5.85GHz ~ 5.92GHz | Module | 4 | 2 | - | 2dBi, 3dBi, 3.5dBi, 3.8dBi | - | Cable - 1m, LNA | SMA Male (2) | IPX5 | - | - | Adhesive | 0.787" (20.00mm) | DSRC, GNSS |
|
|
KIT-WIFI-ISM-01ANTENNA KIT |
3,171 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
