RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

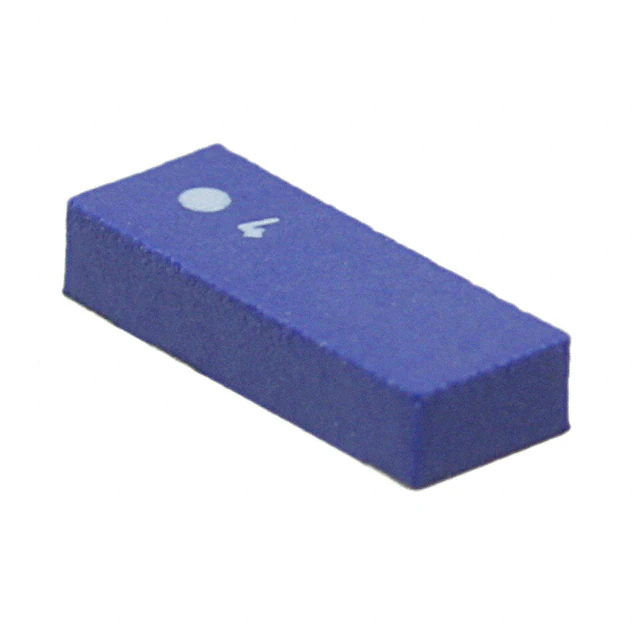

ANT5320LL24R2455ARF ANT 2.4GHZ/5GHZ CHIP SLDR SMD |
12,602 | - |
|
Datasheet | 5320 | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.39GHz ~ 2.51GHz, 4.55GHz ~ 5.45GHz | Chip | 2 | - | -10dB | 2.17dBi, 3.51dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.045" (1.15mm) | WLAN |
|
ANT5320LL14R1516A5320 GPS/GLONASS/GALILEO OR GPS/ |
6,833 | - |
|
Datasheet | 5320 | Tape & Reel (TR) | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Chip | 1 | - | 10dB | 1.46dBi | 1 W | - | Solder | - | - | - | Surface Mount | - | - |
|
W3118ARF ANT 850MHZ HELICAL SOLDER SMD |
2,936 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz) | 850MHz | 869MHz ~ 894MHz | Helical | 1 | - | -9dB | 0dBi | - | - | Solder | - | - | - | Surface Mount | 0.315" (8.00mm) | GSM |
.jpg "W3211")
|
W3211ANT CER 902-928MHZ 10X3.2X5MM |
1,297 | - |
|
Datasheet | Chip Antenna | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | - | -3dB, -10dB | 1.35dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | ISM |
|
ANT5320LL04R2455ARF ANT 2.4GHZ/5GHZ CHIP SLDR SMD |
15,668 | - |
|
Datasheet | 5320 | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.375GHz ~ 2.525GHz, 5.05GHz ~ 5.95GHz | Chip | 2 | - | -6.5dB | 2.09dBi, 4.32dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.055" (1.40mm) | Wi-Fi |
|
W3000RF ANT 868MHZ/1.575GHZ CHIP SLD |
1,475 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Navigation, WiFi | Wide Band | 868MHz, 1.575GHz, 2.4GHz | 858MHz ~ 878MHz, 1.565GHz ~ 1.585GHz, 2.4GHz ~ 2.483GHz | Chip | 3 | - | -10dB, -12dB, -12dB | -1.4dBi, 2dBi, 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ |
|

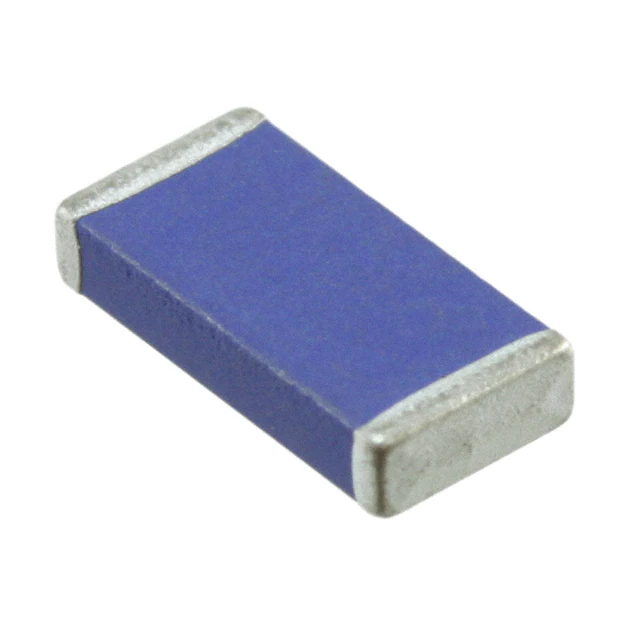

ANT6230LL01R1575ARF ANT 1.575GHZ CHIP SOLDER SMD |
1,750 | - |
|
Datasheet | 6230 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.548GHz ~ 1.602GHz | Chip | 1 | - | -10dB | 2.52dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.049" (1.25mm) | GPS |
|
W3073RF ANT 850MHZ/900MHZ CHIP SLD |
1,259 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular, General ISM | Wide Band | 859MHz, 1.8GHz, 1.9GHz, 2.05GHz | 824MHz ~ 894MHz, 1.71GHz ~ 2.17GHz | Chip | 4 | - | -4.7dB, -3.5dB, -5.9dB, -3.3dB | 0.4dBi, 2.3dBi, 2.5dBi, 2.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GSM, PCS, WCDMA |
|
W3961B0050ANT CBRS FPC 3550-3980MHZ 50MM |
949 | - |
|
Datasheet | W3961XXXXX | Bag | Active | - | UHF (3GHz ~ 4GHz) | 3.765GHz | 3.55GHz ~ 3.98GHz | PCB Trace | 1 | - | 10dB | 4.5dBi | 3 W | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.006" (0.15mm) | General Purpose |
|
|
W3961B0100ANT CBRS FPC 3550-3980MHZ 100MM |
947 | - |
|
Datasheet | W3961XXXXX | Bag | Active | - | UHF (3GHz ~ 4GHz) | 3.765GHz | 3.55GHz ~ 3.98GHz | PCB Trace | 1 | - | 10dB | 4.5dBi | 3 W | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.006" (0.15mm) | General Purpose |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
