RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3544ARF ANT 850MHZ/900MHZ CHIP SLD |
893 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 5 | - | -4.1dB, -4.6dB, -16.3dB, -12.3dB | -1.9dBi, -1.3dBi, -1.3dBi, -1.66dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | GSM |
|

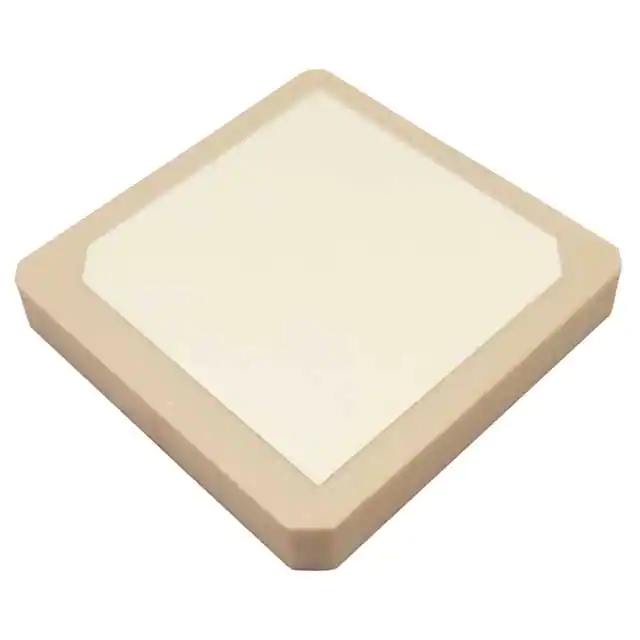

ANT2525B00BT1575SRF ANT 1.575GHZ CER PATCH SLD |
800 | - |
|
Datasheet | 2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.59GHz | Ceramic Patch | 1 | 1.5 | -34.626dB | 5.5dBic | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
ANT2525B00DTGNSSSANTENNA PATCH GNSS |
255 | - |
|
Datasheet | 2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Ceramic Patch | 1 | 2 | - | 5.16dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, GLONASS, GNSS, GPS |
|
W3920B0100RF ANT 5.4GHZ FLAT PATCH CAB ADH |
1,428 | - |
|
Datasheet | - | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.925GHz | Flat Patch | 1 | 2 | - | 3dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Wi-Fi |
|

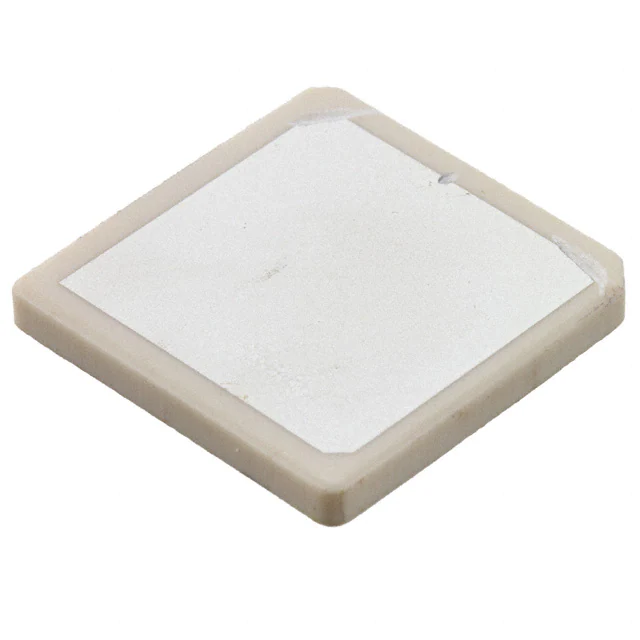

ANT1818B00AT1575SRF ANT 1.6GHZ CER PATCH SOLDER |
750 | - |
|
Datasheet | 1818 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.577GHz ~ 1.583GHz | Ceramic Patch | 1 | 2 | -10dB | 2dBic | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GPS |
|
ANT1204LL08R0870ARF ANT 870MHZ CHIP SOLDER SMD |
5,951 | - |
|
Datasheet | 1204 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 870MHz | 853MHz ~ 887MHz | Chip | 1 | 1.92 | -10dB | 1.51dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | - |
|
W3917B0100RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
1,791 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 4dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
W3100BANT HELICAL COIL 868MHZ |
880 | - |
|
Datasheet | Helix Coil | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Helical | 1 | 2 | - | 0dBi | 2 W | - | Solder | - | - | - | Solder | 0.386" (9.80mm) | ISM |
|
W1697ANT EXT 0.617-3.8GHZ RPSMA |
291 | - |
|
Datasheet | Stubby Antenna | Tray | Active | Cellular | Wide Band | 788.5MHz, 2.2GHz, 3.6GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Whip, Straight | 3 | - | -5dB, -4dB | -0.5dBi, 1dBi, 0dBi | 5 W | - | RP-SMA Male | IP42 | - | - | Connector Mount | 1.953" (49.60mm) | LTE |
|
W3213RF ANT 1.575GHZ CER PATCH PIN |
843 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.6 | - | -1.5dBic | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
