RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

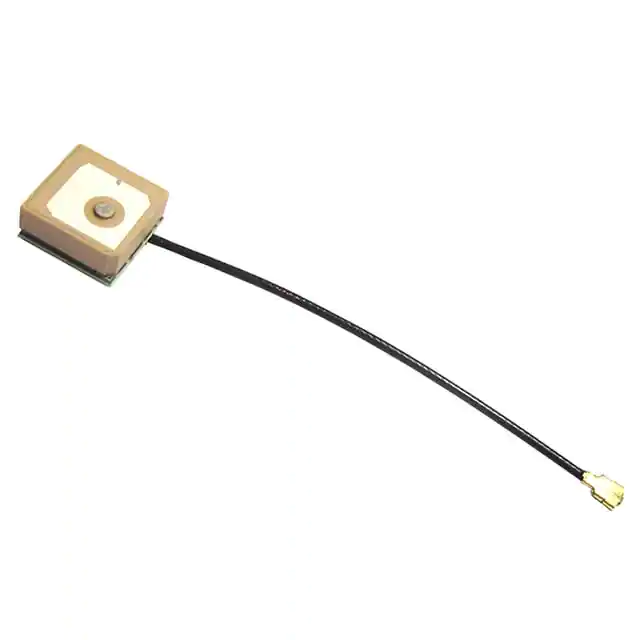

ANT1212JB27B1575ARF ANT 1.575GHZ CER PATCH IPEX |
260 | - |
|
Datasheet | 1212 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.569GHz ~ 1.581GHz | Ceramic Patch | 1 | 1.5 | - | -4.56dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|

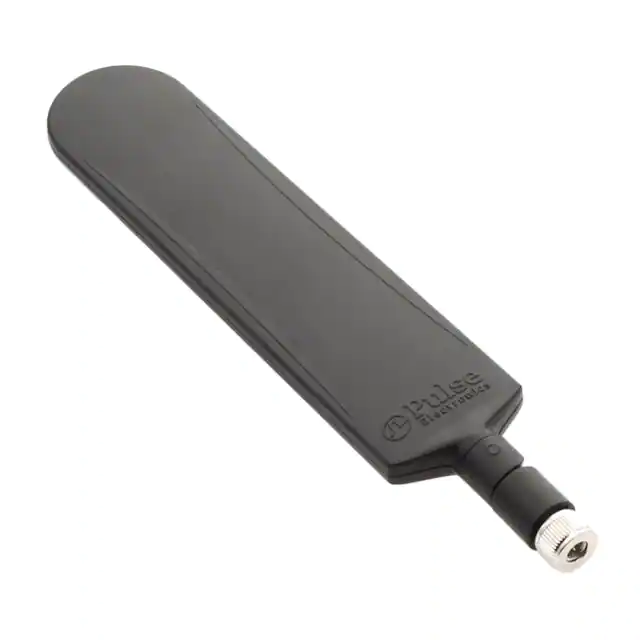

W5084KRF ANT 829MHZ/2.05GHZ BLADE SMA |
121 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 829MHz, 2.05GHz | 698MHz ~ 960MHz, 1.4GHz ~ 2.69GHz | Blade | 2 | 2.5 | - | 4dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 9.009" (228.84mm) | LTE |
|
W5084RF ANT 829MHZ/2.05GHZ BLADE TNC |
309 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 829MHz, 2.05GHz | 698MHz ~ 960MHz, 1.4GHz ~ 2.69GHz | Blade | 2 | 2.5 | - | 4dBi | 5 W | - | TNC Male | IP65 | - | - | Connector Mount | 9.009" (228.84mm) | LTE |
|
GPSGB1330RF ANT 1.575/1.602GHZ CER PATCH |
231 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | 2 | - | 1dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.321" (8.15mm) | GPS |
|

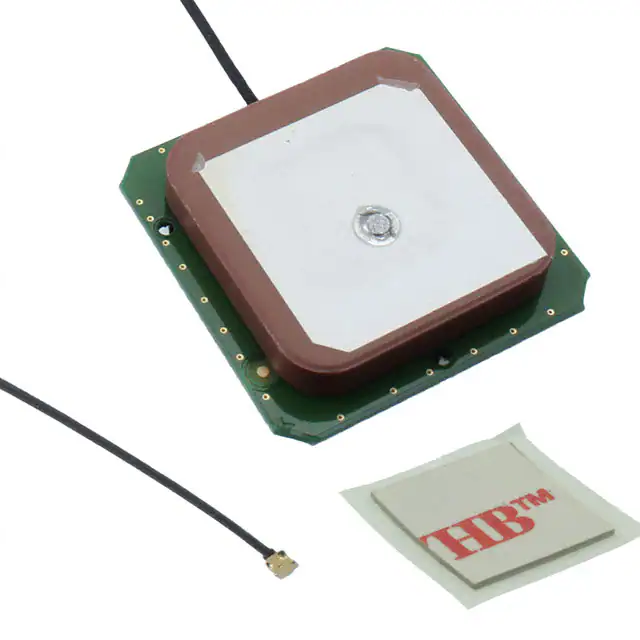

GPSGB2515RF ANT 1.561/1.575GHZ CER PATCH |
112 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | 2 | - | 1dBic | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.321" (8.15mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
W5095KRF ANT 829MHZ/2.05GHZ BLADE SMA |
205 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 829MHz, 2.05GHz | 698MHz ~ 960MHz, 1.4GHz ~ 2.69GHz | Blade | 2 | 2.5 | - | 2.16dBi | 3 W | - | SMA Male | IP65 | - | - | Connector Mount | - | LTE |
|

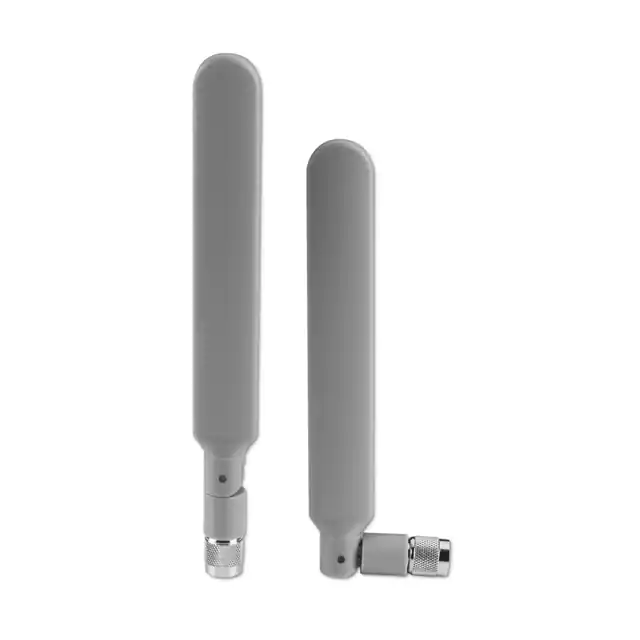

SPDA172400DIPOLE - CENTER FED, 2400 - 2500 |
105 | - |
|
Datasheet | - | Bag | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | - | - | - | - | TNC Male | - | - | - | Connector Mount | 6.000" (152.40mm) | - |
|
SB698SMA12RF ANT 829MHZ/1.94GHZ BLADE SMA |
135 | - |
|
Datasheet | Stealth Blade | Bulk | Active | Cellular, WiFi | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Blade | 3 | 2.5 | - | 2dBi | 3 W | - | SMA Male | IP67 | - | - | Adhesive | 4.161" (105.70mm) | LTE, WLAN |
|

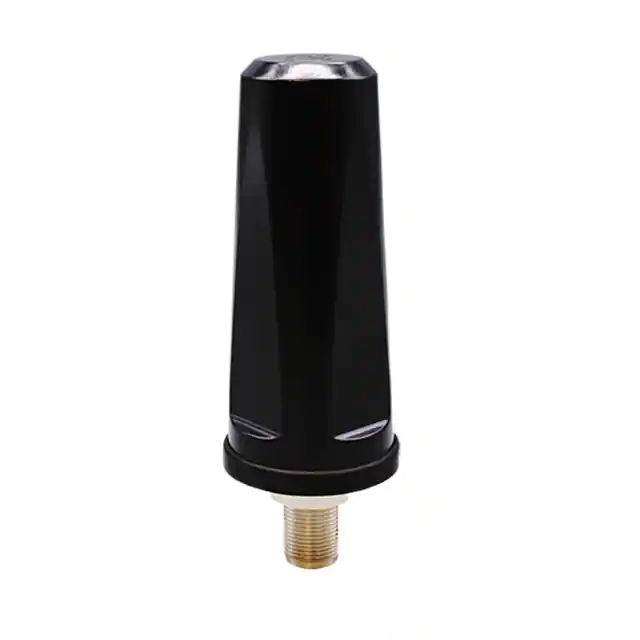

LPT600/71DMNANTENNA 617-7125MHZ MONO BLACK |
314 | - |
|
Datasheet | Monopole Antenna | Bag | Active | Cellular, WiFi | Wide Band | 788.5MHz, 1.94GHz, 2.5GHz, 3.6GHz, 6.0125GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 7.125GHz | Dome | 5 | 2, 3 | - | 2dBi, 3.9dBi, 5.3dBi, 4.7dBi, 6.1dBi | 60 W | - | N Type Female | IP67 | - | - | Connector Mount | 3.776" (95.90mm) | 4G, 5G, Wi-Fi |
|
SLPT2400/5900DMNWRF ANT 2.45/5.45GHZ DOME N FEM |
244 | - |
|
Datasheet | Shadow | Bulk | Active | Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.45GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Dome | 2 | 1.5, 2 | - | 4.78dBi, 5.14dBi | 10 W | - | N Type Female | IP67 | - | - | Connector Mount | 2.624" (66.66mm) | 3G, 4G, DSRC, LTE, ISM, Wi-Fi |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
