Switching Converter, SMPS Transformers
Use the filters and product table below to compare Switching Converter, SMPS Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7508151501XFMR FLYBCK DC/DC CONV 1.78MH TH |
3,629 | - |
|
Datasheet | WE-UNIT, MID-OLTI | Tray | Active | For DC/DC Converters | Flyback Converters | UCC287xx, UCC289xx | Texas Instruments | 255 ~ 275V | 14V @ 20mA | 4500Vrms | 1.78mH @ 70kHz | 70kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.438" (11.13mm) | 0.543" L x 0.941" W (13.80mm x 23.90mm) | - |
|
750342779XFMR FLYBACK DC/DC CONV 50UH SMD |
4,159 | - |
|
Datasheet | MID-IBMAX | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 17 ~ 36V | 7V @ 100mA | 1875Vrms | 50µH @ 50kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.67mm) | 0.385" L x 0.374" W (9.78mm x 9.50mm) | - |
|
7508112514XFMR FLYBACK DC/DC CONV 460UH TH |
2,705 | - |
|
Datasheet | MID-OLEFD | Tray | Active | For DC/DC Converters | Flyback Converters | - | - | 120 ~ 375V | 20V | 4500Vrms | 460µH @ 10kHz | 68 ~ 110kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.551" (14.00mm) | - | - |
|
7491195501XFMR POE DC/DC CONV 21UH SMD |
2,331 | - |
|
Datasheet | WE-PoEH | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 9 ~ 57V | 10V | 1500Vrms | 21µH @ 100kHz | 200 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.551" L x 0.591" W (14.00mm x 15.00mm) | 0.571" (14.50mm) | 0.551" L x 0.591" W (14.00mm x 18.10mm) | - |
|

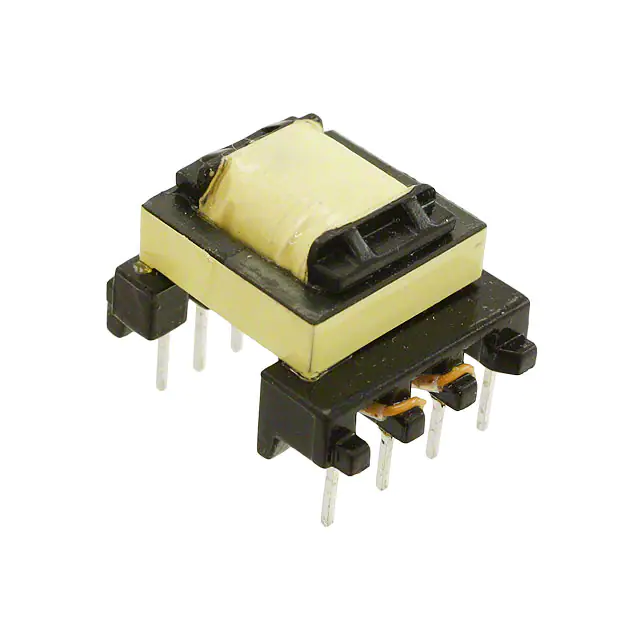

7491182124XFMR LED DR AC/DC CONV 900UH TH |
1,590 | - |
|
Datasheet | WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCP101x, NCP105x | On Semiconductor | 120 ~ 385V | - | 4000Vrms | 900µH @ 10kHz | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 0.795" L x 0.965" W (20.20mm x 24.50mm) | 0.650" (16.50mm) | 0.795" L x 0.965" W (20.20mm x 24.50mm) | - |
|
749196541XFMR FLEX CONFIG DC/DC 7.6UH SMD |
2,017 | - |
|
Datasheet | WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 7.6µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.425" (10.80mm) | 0.827" L x 1.169" W (21.00mm x 29.70mm) | - |
|
750343109XFMR FLYBACK AC/DC CONV 490UH TH |
3,717 | - |
|
Datasheet | WE-FB, MID-OLDIA | Tray | Active | For AC/DC Converters | Flyback Converters | - | Dialog Semiconductor | 90 ~ 264V | 14V | 3000Vrms | 490µH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Through Hole | 0.874" L x 1.024" W (22.20mm x 26.00mm) | 0.635" (16.13mm) | 0.874" L x 1.024" W (22.20mm x 26.00mm) | - |
|
750315039XFMR ISOL BUCK DC/DC CON 40UH SM |
1,812 | - |
|
Datasheet | MID-IBTI | Tape & Reel (TR) | Active | For DC/DC Converters | Isolated Buck Converters | - | Texas Instruments | - | - | 1500Vrms | 40µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.955" (24.26mm) | 0.910" L x 1.145" W (23.11mm x 29.08mm) | - |
|
760871333XFMR 250UH SMD |
3,062 | - |
|
Datasheet | WE-SLIM | Tray | Active | - | - | - | - | - | - | 4000Vrms | 250µH @ 50kHz | 130kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.472" (12.00mm) | 1.157" L x 1.870" W (29.40mm x 47.50mm) | - |
|
750313054XFMR FLYBACK DC/DC CONV 500UH TH |
2,314 | - |
|
Datasheet | MID-OLON | Tray | Active | For DC/DC Converters | Flyback Converters | - | On Semiconductor | - | - | 4000Vrms | 500µH @ 10kHz | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.950" (24.13mm) | - | - |
Switching Converter, SMPS Transformers FAQ
Common questions about filtering, comparing and sourcing Switching Converter, SMPS Transformers components.
How can I narrow the Switching Converter, SMPS Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Switching Converter, SMPS Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
